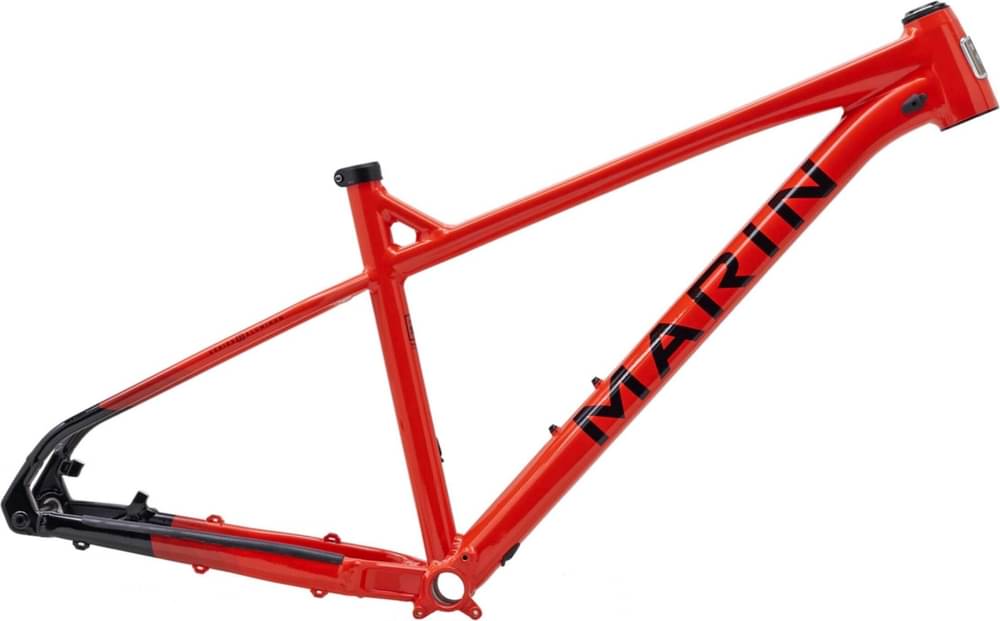

Marin San Quentin 3 Frame Kit 2022
2022 Mountain
Estimate price |
549$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
SM
157cm - 167cm
MD
164cm - 174cm
LG
171cm - 182cm
XL
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter and Dropper Post Routing, External Brake, 12x148mm Thru-Axle, 73mm Threaded BB
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.33 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 724 mm | 749 mm | 773 mm | 795 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 124 mm | 124 mm | 124 mm | 124 mm |
| Stack | 588.1 mm | 592.7 mm | 601.7 mm | 606.3 mm |
| Reach | 424 mm | 446 mm | 466 mm | 486 mm |
| Top Tube Length | 581.1 mm | 604.3 mm | 626.7 mm | 647.9 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 430 mm | 475 mm | 515 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 125 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1146 mm | 1170 mm | 1195 mm | 1217 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 666 mm | 679 mm | 716 mm | 747 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 164 cm | 171 cm | 179 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 188 cm |
Model Overview
San Quentin 3 Frame Kit is part of the Marin San Quentin model. Marin released 47 frames variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Marin San Quentin 27.5″ 3 Frame Kit 2022 has a starting price of 527$. Marin San Quentin 3 Frame Kit 2022 on the other hand is the most expensive at 549$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry frames average price
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, you could also get a good Crosscountry frame even if you pay a lower amount than the average price. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 549$. In conclusion, this frame price is 207.65% smaller than the price of the average Crosscountry frame.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Sizes
San Quentin 3 Frame Kit comes in 4 sizes, that range from 157 cm – 188 cm (5.15 ft – 6.17 ft). In short, it won’t be difficult to find the right one for you.
