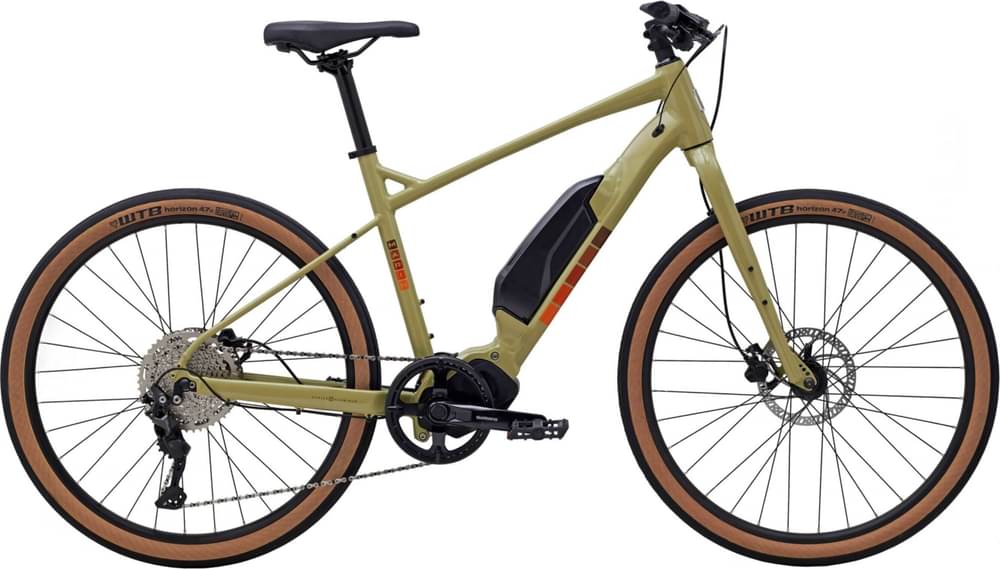

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 650b -
Groupset Deore, Shimano -
Suspension Rigid -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano BT6010, 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Suspension Fork
Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Drivetrain
Rear Derailleur
Shimano Deore 10-Speed
Front Derailleur
-
Shift Levers
Shimano Deore 10-Speed
Cassette
Shimano Deore 10-Speed 11-46T
Crank
Shimano, Aluminum w/ 44T Steel Chairing
Bottom Bracket
-
Chain
KMC X10E
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, Disc Specific, 32H
Rear Hub
Forged Alloy, Disc Specific, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
WTB Horizon, 650Bx47, Wire Bead
Brakes
Brake Levers
Tektro Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin MiniRiser Alloy
Grips
Marin Adventure
Headset
FSA No. 57E
Seat
Saddle
Marin City Plush
Seatpost
Marin Alloy, 27.2mm
Motor & Battery
Motor
Shimano STEPS E5000 System
Battery
Shimano BT6010, 418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.53 mm | 1.52 mm | 1.54 mm |
| Bottom Bracket Height | 296.5 mm | 296.5 mm | 296.5 mm | 296.5 mm |
| Front Center | 632 mm | 668 mm | 698 mm | 724 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 76 mm | 76 mm | 76 mm | 76 mm |
| Stack | 586 mm | 613.7 mm | 641.8 mm | 669.9 mm |
| Reach | 376 mm | 401 mm | 421 mm | 436 mm |
| Top Tube Length | 545 mm | 578 mm | 606.2 mm | 629.2 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 480 mm | 520 mm | 558 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 150 mm | 180 mm | 210 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1079 mm | 1114 mm | 1145 mm | 1170 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 675 mm | 713 mm | 743 mm | 780 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 193 cm |
About this model
Sausalito E1 is part of the Marin E Sausalito model. There are 12 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Marin Sausalito ST E1 2021 is the cheapest e-bike model and costs 2479$. Marin Sausalito E2 2021 is the most expensive one and costs 2889$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for General Urban e-bikes
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2021 and its price was 2479$. If we compare this with the average General Urban e-bike cost we notice that the price is 18.16% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Sausalito E1 components
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
The Sausalito E1 2021 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Marin Sausalito E1 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Sausalito E1 comes in 4 sizes, that range from 157 cm – 193 cm (5.15 ft – 6.33 ft). In conclusion, finding one for you shouldn’t be a problem.
