Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 650b -
Groupset Deore, Shimano -
Suspension Rigid -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano BT6010, 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Suspension Fork
Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Drivetrain
Rear Derailleur
Shimano Deore 10-Speed
Front Derailleur
-
Shift Levers
Shimano Deore 10-Speed
Cassette
Shimano Deore 10-Speed 11-46T
Crank
Shimano, Aluminum w/ 44T Steel Chairing
Bottom Bracket
-
Chain
KMC X10E
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, Disc Specific, 32H
Rear Hub
Forged Alloy, Disc Specific, 32H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
WTB Horizon, 650Bx47, Wire Bead
Brakes
Brake Levers
Tektro Hydraulic
Cockpit
Stem
Marin Alloy
Handlebar
Marin MiniRiser Alloy
Grips
Marin Adventure
Headset
FSA No. 57E
Seat
Saddle
Marin City Plush
Seatpost
Marin Alloy, 30.9mm
Motor & Battery
Motor
Shimano STEPS E5000 System
Battery
Shimano BT6010, 418Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.53 mm | 1.52 mm | 1.54 mm |
| Bottom Bracket Height | 296.5 mm | 296.5 mm | 296.5 mm | 296.5 mm |
| Front Center | 632 mm | 668 mm | 698 mm | 724 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 76 mm | 76 mm | 76 mm | 76 mm |
| Stack | 586 mm | 613.7 mm | 641.8 mm | 669.9 mm |
| Reach | 376 mm | 401 mm | 421 mm | 436 mm |
| Top Tube Length | 545 mm | 578 mm | 606.2 mm | 629.2 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 480 mm | 520 mm | 558 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 150 mm | 180 mm | 210 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1079 mm | 1114 mm | 1145 mm | 1170 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 675 mm | 713 mm | 743 mm | 780 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 193 cm |

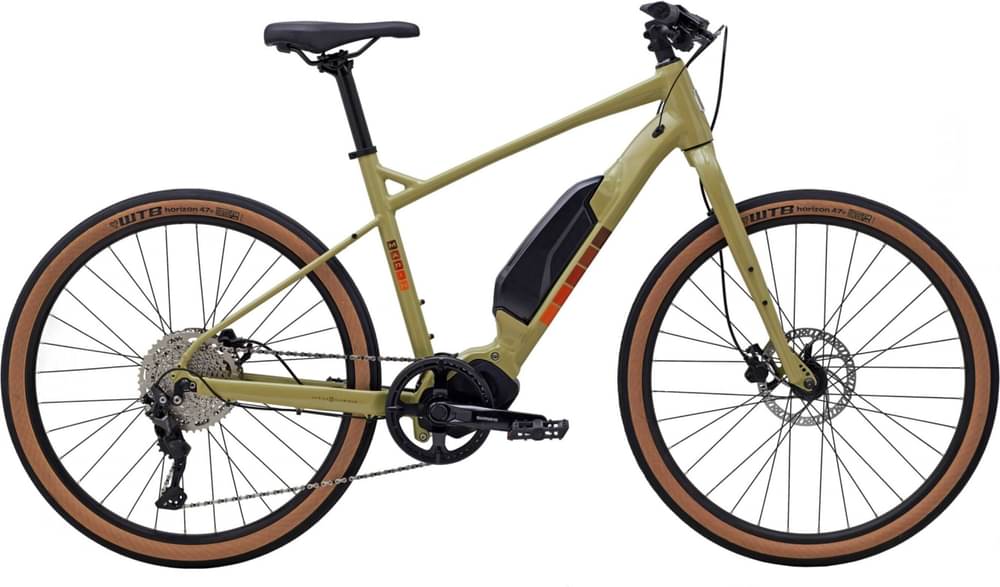

About this model
Sausalito E1 is a Marin E Sausalito model. There are 12 e-bikes that carry this model name. Take a sneak peek at all Marin E Sausalito e-bikes models from 2022, by clicking here.
Model range prices
Marin Sausalito ST E1 2022 is the most affordable e-bike of this model and has a price of 2499$. On the other hand, Marin Sausalito E2 2022, is the most expensive and costs 2899$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for General Urban e-bikes
If you want an acceptable General Urban e-bike you should know that the average price is 2098$. However, paying less money than this amount doesn’t mean that you couldn’t get a great General Urban e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Marin released this model in 2022, its price was 2499$. Comparing this to the average General Urban e-bike price, we see that the price is 19.11% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Sausalito E1 components
Fork material
Sausalito E1 has a steel fork, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Wheels
As for the wheels, Marin Sausalito E1 2022, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Sausalito E1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 157 cm – 193 cm (5.15 ft – 6.33 ft). In short, you can easily find one that suits you.
