Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Tourney, Altus -
Suspension Rigid -
Motor 250W hub-drive -
Battery 309Wh, 36V, Rear Carrier Mounted -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 167cm
MD
164cm - 174cm
LG
171cm - 182cm
XL
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 Comfort, E-Bike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Suspension Fork
CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Drivetrain
Rear Derailleur
Shimano Tourney, 7-Speed
Front Derailleur
-
Shift Levers
Shimano Altus 7-Speed RapidFire
Cassette
Shimano 7-Speed Freewheel, 14-34T
Crank
Alloy Crank, Steel 38T Chainring, Ring Guard
Bottom Bracket
Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Marin Comfort Platform
Wheels
Front Hub
Forged Aluminum Alloy, 32H
Rear Hub
250 Watt Hub Motor, 36H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Brakes
Brake Levers
Alloy, Long Pull
Cockpit
Stem
Marin Alloy
Handlebar
Marin Alloy, 25mm Rise, 18? Backsweep
Grips
Marin Adventure
Headset
FSA, TH No.10P
Seat
Saddle
Marin Comfort
Seatpost
Marin Alloy, 30.9mm
Motor & Battery
Motor
250 Watt Hub Motor, 36H
Battery
309Wh, 36V, Rear Carrier Mounted
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.85 mm | 1.82 mm | 1.8 mm | 1.78 mm |
| Bottom Bracket Height | 276.5 mm | 276.5 mm | 276.5 mm | 276.5 mm |
| Front Center | 608 mm | 629 mm | 652 mm | 669 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 627.2 mm | 645.9 mm | 664.5 mm | 678.4 mm |
| Reach | 339 mm | 354 mm | 369 mm | 380.6 mm |
| Top Tube Length | 605.7 mm | 628.6 mm | 651.5 mm | 669 mm |
| Seat Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Seat Tube Length | 382 mm | 406 mm | 444 mm | 470 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 210 mm | 230 mm | 250 mm | 265 mm |
| Chainstay Length | 489 mm | 489 mm | 489 mm | 489 mm |
| Wheelbase | 1088 mm | 1110 mm | 1133 mm | 1150 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 617 mm | 617 mm | 673 mm | 674 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 164 cm | 171 cm | 179 cm |
| Rider Max Height | 167 cm | 174 cm | 182 cm | 188 cm |

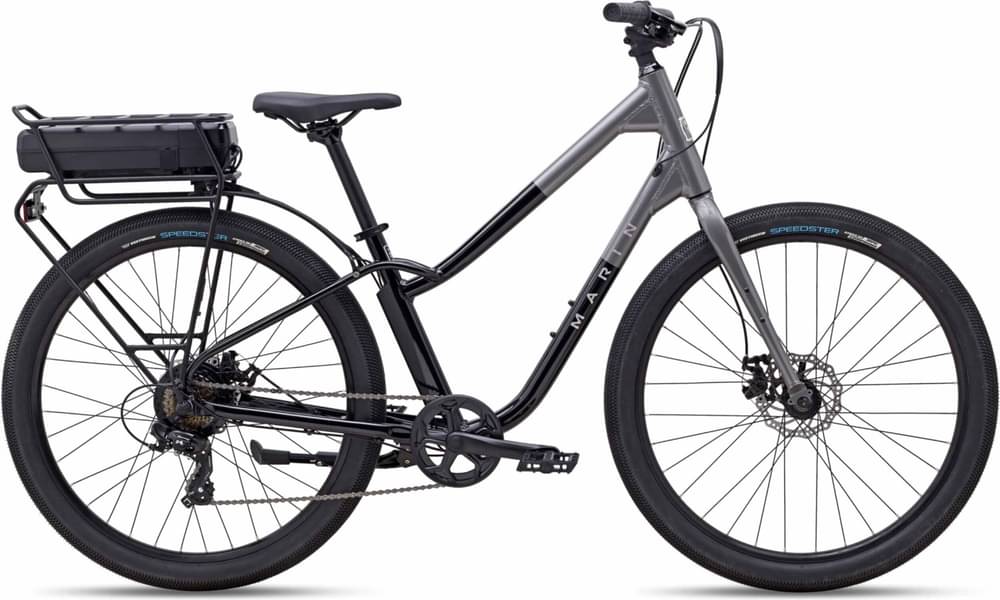

Model Overview
Stinson E is part of the Marin E Stinson model. There are 4 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Marin Stinson E ST 2022 is the cheapest e-bike model and costs 1649$. Marin Stinson E 2022 is the most expensive one and costs 1649$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Comfort e-bikes average price
Our math shows that the average cost of a dependable Comfort e-bike is 1957$. However, this doesn’t mean that if you spend less money on a Comfort e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Marin Stinson E price was 1649$. Comparing the average cost of a Comfort e-bike to this one, you will see that Stinson E price is 18.68% smaller.
Overview of components
Fork material
The fork on this e-bike is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
When leaving the production line, the Stinson E model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stinson E comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Marin Stinson E e-bike has 4 sizes, in the range of 152 cm – 188 cm (4.99 ft – 6.17 ft). In conclusion, you won’t have a problem finding one that suits you.
