Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset Tourney, Altus -
Suspension Rigid -
Motor 250W hub-drive -
Battery 309Wh, 36V, Rear Carrier Mounted -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 167cm
MD
164cm - 174cm
LG
171cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 1 Comfort, E-Bike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Suspension Fork
CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Drivetrain
Rear Derailleur
Shimano Tourney, 7-Speed
Front Derailleur
-
Shift Levers
Shimano Altus 7-Speed RapidFire
Cassette
Shimano 7-Speed Freewheel, 14-34T
Crank
Alloy Crank, Steel 38T Chainring, Ring Guard
Bottom Bracket
Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Pedals
Marin Comfort Platform
Wheels
Front Hub
Forged Aluminum Alloy, 32H
Rear Hub
250 Watt Hub Motor, 36H
Rims
Marin Aluminum Double Wall, Disc Specific
Tires
Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Brakes
Brake Levers
Alloy, Long Pull
Cockpit
Stem
Marin Alloy
Handlebar
Marin Alloy, 25mm Rise, 18? Backsweep
Grips
Marin Adventure
Headset
FSA, TH No.10P
Seat
Saddle
Marin Comfort
Seatpost
Marin Alloy, 30.9mm
Motor & Battery
Motor
250 Watt Hub Motor, 36H
Battery
309Wh, 36V, Rear Carrier Mounted
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.85 mm | 1.82 mm | 1.8 mm |
| Bottom Bracket Height | 276.5 mm | 276.5 mm | 276.5 mm |
| Front Center | 608 mm | 629 mm | 652 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 627.2 mm | 645.9 mm | 664.5 mm |
| Reach | 339 mm | 354 mm | 369 mm |
| Top Tube Length | 605.7 mm | 628.6 mm | 651.5 mm |
| Seat Tube Angle | 67 ° | 67 ° | 67 ° |
| Seat Tube Length | 382 mm | 406 mm | 444 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 210 mm | 230 mm | 250 mm |
| Chainstay Length | 489 mm | 489 mm | 489 mm |
| Wheelbase | 1088 mm | 1110 mm | 1133 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Standover Height | 509 mm | 509 mm | 509 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 152 cm | 164 cm | 171 cm |
| Rider Max Height | 167 cm | 174 cm | 180 cm |

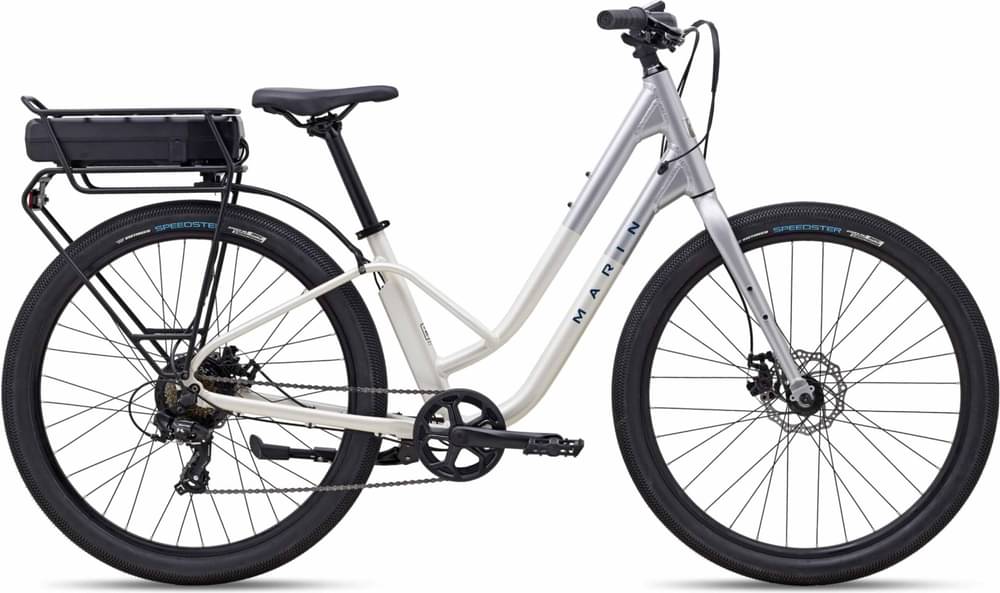

Model Overview
Stinson E ST is part of the Marin E Stinson model. There are 4 e-bikes that carry this model name. Take a sneak peek at all Marin E Stinson e-bikes models from 2022, by clicking here.
Model range prices
Marin Stinson E ST 2022 is the most economical model, with a starting price of 1649$. Marin Stinson E 2022 on the other hand costs 1649$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Comfort e-bikes average price
If you want to purchase a solid Comfort e-bike, it is important to know that the average cost is 1957$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Comfort e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Marin released this model in 2022, its price was 1649$. In conclusion, this e-bike price is 18.68% lower than the price of the average Comfort e-bike.
Stinson E ST components
Fork material
Stinson E ST has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The wheels on Stinson E ST are the aluminum type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stinson E ST comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 152 cm – 180 cm (4.99 ft – 5.91 ft). In short, it won’t be difficult to find the right one for you.
