Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 164cm
XS
152cm - 164cm
SM
161cm - 172cm
SM
161cm - 172cm
MD
169cm - 179cm
MD
169cm - 179cm
LG
176cm - 182cm
LG
176cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Series 2 6061 Aluminum, Women’s SpecificFrame, 27.5” Wheels, 68mm BB shell, 135mm Forged Dropouts
Suspension Fork
RockShox TK Silver 27.5”, Coil Spring, 100mm Travel
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus SGS 10-Speed
Front Derailleur
---
Shift Levers
Shimano Deore 1x10-Speed
Cassette
SunRace 10-Speed, 11-46T
Crank
Marin Forged Alloy 1x10, Hollow Spindle, Steel Narrow-Wide 32T Chainring, 76mm BCD
Bottom Bracket
External Sealed Cartridge Bearings
Chain
KMC X10
Pedals
Nylon Platform
Wheels
Front Hub
Forged Alloy, Centerlock Disc, 32H
Rear Hub
Forged Alloy, Centerlock Disc, 32H
Rims
Marin Aluminum Double Wall, 29mm Inner,Pinned Joint, Disc Specific, Tubeless Compatible
Spokes
14g Black Stainless Steel
Tires
Vee Tire, Crown Gem 27.5x2.3", Dual Control Compound, Wire Bead
Brakes
Brakes
Shimano BR-MT201 Hydraulic Disc 180mm Rotor
Brake Levers
Shimano BL-MT201
Cockpit
Stem
Marin Alloy, 45mm
Handlebar
Marin Riser, 12mm Rise, 780mm Width
Grips
Marin Dual Density
Headset
FSA No.10-P
Seat
Saddle
Marin MTB
Seatpost
Marin Alloy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.42 mm | 1.43 mm | 1.38 mm | 1.39 mm | 1.34 mm | 1.34 mm | 1.3 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm | 307 mm | 307 mm | 307 mm | 307 mm | 307 mm |
| Front Center | 651 mm | 673 mm | 666 mm | 688 mm | 684 mm | 706 mm | 704 mm | 726 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89 mm | 96 mm | 89 mm | 96 mm | 89 mm | 96 mm | 89 mm | 96 mm |
| Stack | 581.04 mm | 576.56 mm | 585.71 mm | 581.19 mm | 590.38 mm | 585.83 mm | 595.05 mm | 590.46 mm |
| Reach | 394.75 mm | 407.1 mm | 408.32 mm | 420.77 mm | 423.89 mm | 436.44 mm | 442.46 mm | 455.11 mm |
| Top Tube Length | 573 mm | 573 mm | 588 mm | 588 mm | 605 mm | 605 mm | 625 mm | 625 mm |
| Seat Tube Angle | 73 ° | 74 ° | 73 ° | 74 ° | 73 ° | 74 ° | 73 ° | 74 ° |
| Seat Tube Length | 330 mm | 330 mm | 381 mm | 381 mm | 431 mm | 431 mm | 482 mm | 482 mm |
| Head Tube Angle | 69 ° | 68 ° | 69 ° | 68 ° | 69 ° | 68 ° | 69 ° | 68 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 105 mm | 110 mm | 110 mm | 115 mm | 115 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1074 mm | 1096 mm | 1089 mm | 1111 mm | 1107 mm | 1129 mm | 1127 mm | 1149 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Standover Height | 614 mm | 613 mm | 654 mm | 650 | 696 mm | 691 mm | 737 mm | 733 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 152 cm | 161 cm | 161 cm | 169 cm | 169 cm | 176 cm | 176 cm |
| Rider Max Height | 164 cm | 164 cm | 172 cm | 172 cm | 179 cm | 179 cm | 182 cm | 182 cm |
Model Overview

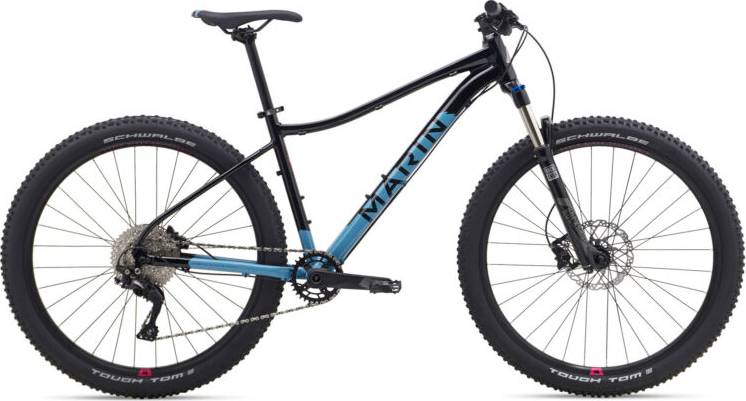

Wildcat Trail 5 belongs to the Marin Wildcat model. Marin launched 31 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Marin Wildcat Trail 1 2019 is the most economical model, with a starting price of 429$. Marin Wildcat Trail 5 2019 on the other hand costs 989$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Marin released this model in 2019, its price was 989$. If we compare this with the average Crosscountry bike cost we notice that the price is 92.62% lower.
Wildcat Trail 5 components
Fork
Marin Wildcat Trail 5 2019 bike is equipped with the RockShox fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Marin Wildcat Trail 5 2019, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Marin Wildcat Trail 5 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Marin Wildcat Trail 5 bike has 8 sizes, in the range of 152 cm – 182 cm (4.99 ft – 5.97 ft). In short, you can easily find one that suits you.
