Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN TFS III, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour XCR LOR, Air, 100mm suspension travel, Lockout, 42mm fork offset
Drivetrain
Rear Derailleur
Shimano Alivio Shadow, SGS
Front Derailleur
Shimano M2020-TS
Shift Levers
Shimano Altus
Cassette
Shimano HG200, 11-36 teeth, 9 speed
Crank
Shimano MT101-2, 36-22 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC M99
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 27.5x2.2", wire
Brakes
Brakes
Tektro M275, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA M2346
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.48 mm | 1.46 mm | 1.43 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 628 mm | 650 | 671 mm | 692 mm |
| Rake | 41 mm | 42 mm | 43 mm | 42 mm |
| Trail | 93 mm | 91 mm | 90 mm | 91 mm |
| Stack | 554 mm | 568 mm | 582 mm | 596 mm |
| Reach | 369 mm | 385 mm | 400 mm | 416 mm |
| Top Tube Length | 541 mm | 561 mm | 581 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 340 mm | 380 mm | 440 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1047 mm | 1069 mm | 1090 mm | 1111 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 640 mm | 680 mm | 731 mm | 769 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

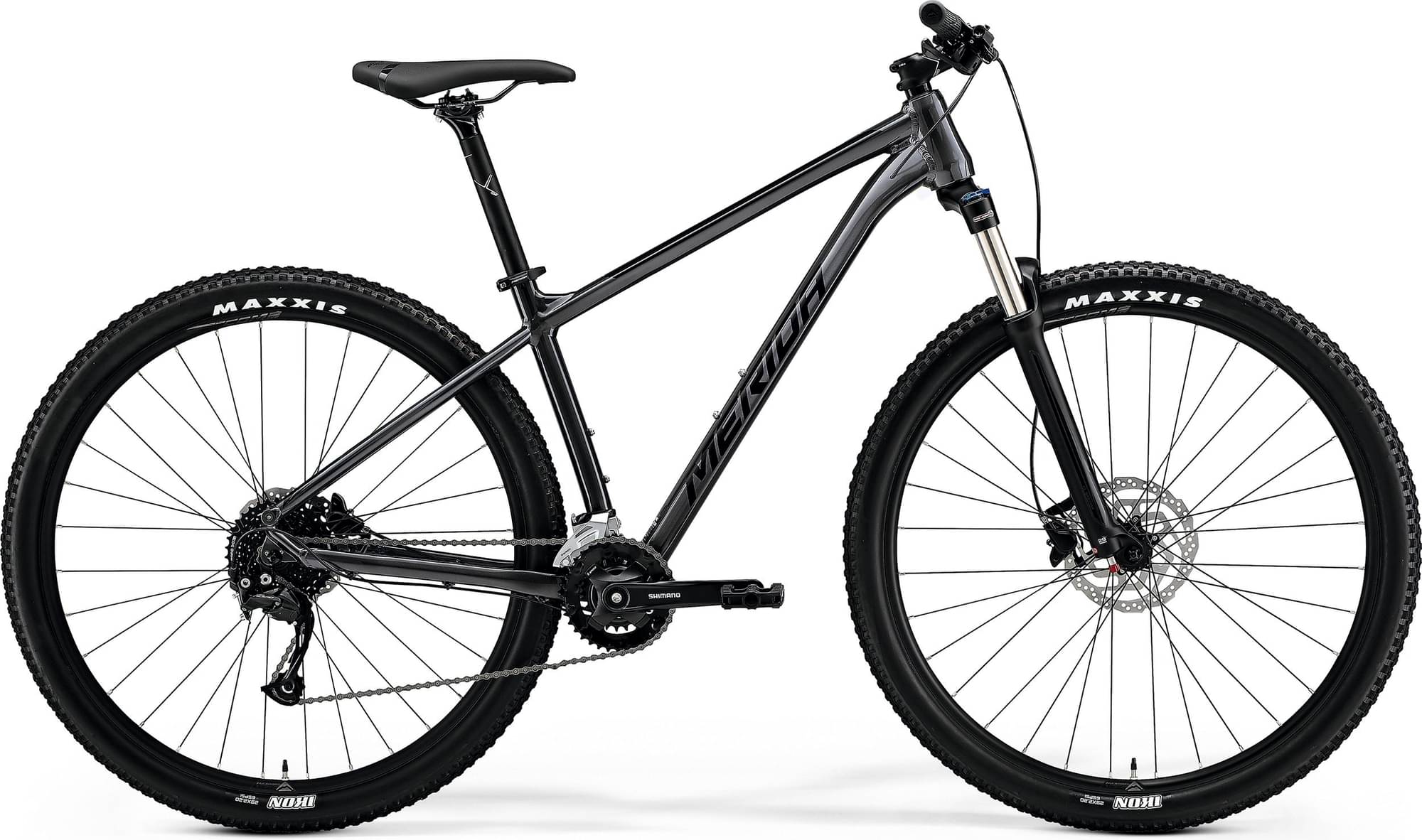

BIG.SEVEN 100-2x belongs to the Merida Bigseven model. There are 161 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Merida BIG.SEVEN 10-MD (3X) 2023 has a starting price of 407$. Merida BIG.SEVEN 200 2023 on the other hand is the most expensive at 700$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Merida BIG.SEVEN 100-2x price was 604$. Doing a quick comparison, we notice that BIG.SEVEN 100-2x price is 215.4% smaller than the average cost of a Crosscountry bike.
BIG.SEVEN 100-2x components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The BIG.SEVEN 100-2x 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida BIG.SEVEN 100-2x has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
