Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NX 1
-
Groupset CUES, Shimano -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY TFS III, material: aluminium, 700x50C max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour NX1, Coil, 63 mm suspension travel, Lockout, 700x50C max. wheelsize
Drivetrain
Rear Derailleur
Shimano CUES U6020 10S
Front Derailleur
Shimano CUES U6010
Shift Levers
Shimano CUES U6000
Cassette
Shimano LG300, 11-39 teeth, 10 speed
Crank
Shimano CUES U4010, 46-30 teeth, 170 mm-XXS/XS/S, 175 mm-M/XL
Bottom Bracket
BSA, threaded
Chain
Shimano LG500
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300 / Shimano QC300-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300 / Shimano QC300-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20 mm inner width, 17 mm height, material: aluminium
Spokes
Black stainless
Tires
Front: Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild, Rear: Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Stem
MERIDA COMP TK, material: aluminium, 31.8 mm diameter, adjustable, XXS/XS/S/M: 95 mm, L/XL: 110 mm
Handlebar
MERIDA COMP CC, material: aluminium, 660 mm width, 25 mm rise
Headset
MERIDA M2346 Neck
Seat
Saddle
MERIDA Cross Sport
Seatpost
MERIDA TK, 30.9 mm diameter, 10 mm setback, 45 mm seatpost suspension travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.606 mm | 1.617 mm | 1.643 mm |
| Front Center | 634 mm | 645 mm | 653 mm |
| Rake | 42 mm | 42 mm | 41 mm |
| Trail | 76 mm | 76 mm | 74 mm |
| Stack | 631 mm | 645 mm | 667 mm |
| Reach | 393 mm | 399 mm | 406 mm |
| Top Tube Length | 580 mm | 590 mm | 610 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1085 mm | 1096 mm | 1104 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 748 mm | 782 mm | 817 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

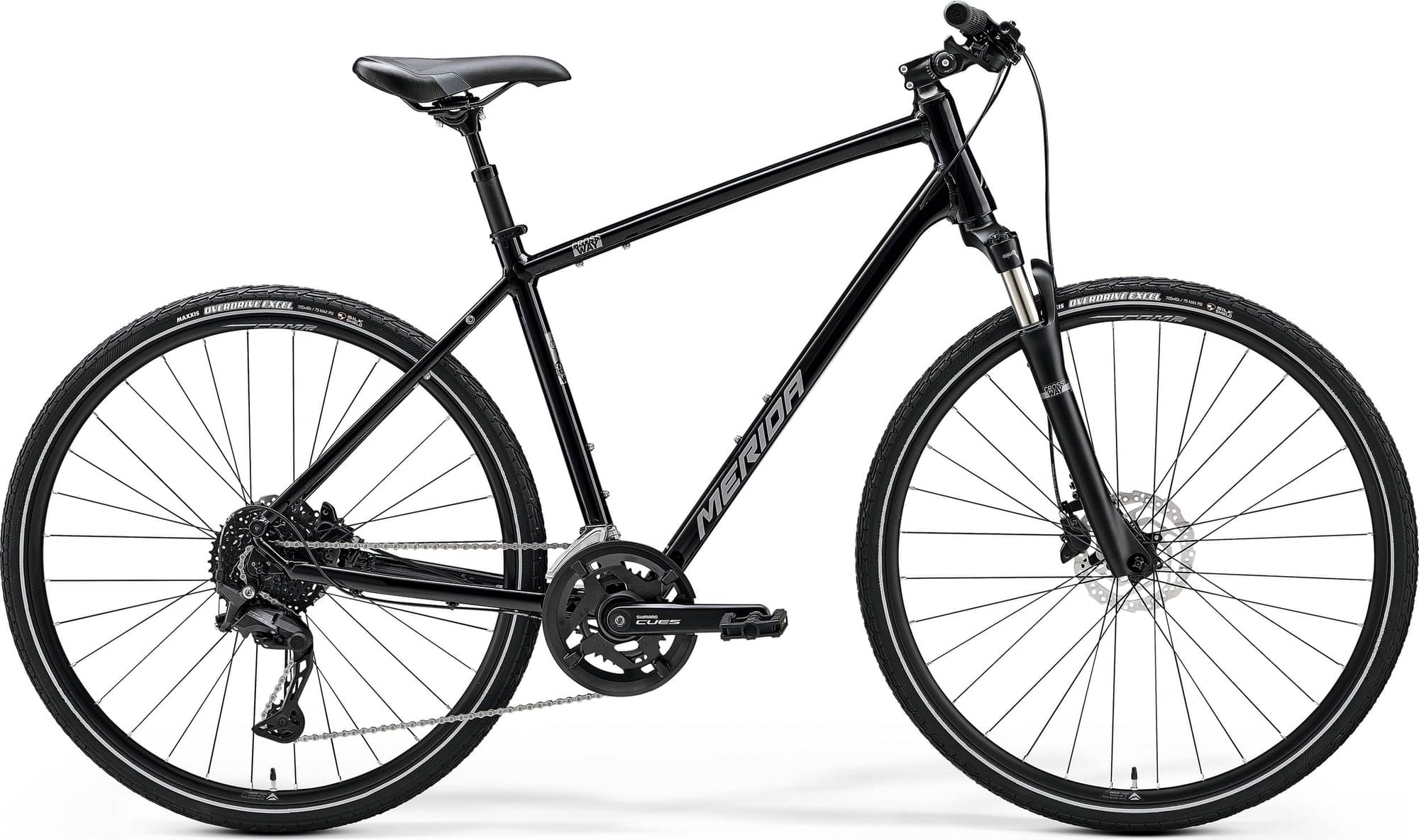

Model Overview
CROSSWAY 300 completes the Merida Crossway model. 220 bikes variations carry this model name so far. You can easily view all of the Merida Crossway bikes models from 2024, here.
Model range prices
The most economical model, the Merida CROSSWAY 10-V 2024 has a starting price of 513$. Merida CROSSWAY L 100 2024 on the other hand is the most expensive at 706$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
According to our math, the average price for a trustworthy Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
CROSSWAY 300 components
Fork
The CROSSWAY 300 comes factory-installed with the Suntour NX 1 fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on CROSSWAY 300 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida CROSSWAY 300 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Merida CROSSWAY 300 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
