Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Travel Rear 63mm -
Fork Suntour NEX
-
Groupset Altus, Tourney -
Suspension Full -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CROSSWAY DT, 63 mm suspension travel, material: aluminium, 700x42C max. wheelsize, 135x9 mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour NEX, Coil, 63 mm suspension travel, 700x50C max. wheelsize
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY510
Shift Levers
Shimano ST-EF500
Cassette
Shimano MF-TZ500, 14-28 teeth, 7 speed
Crank
Shimano TY301, 48-38-28 teeth, MAT Aluminium, 170 mm-XXS/SM, 175 mm-ML up
Bottom Bracket
BSA, threaded
Chain
KMC NS8
Pedals
VP VPE-891
Wheels
Front Hub
Joytech JY-751DSE, 100x9 mm width front hub, 32 spoke holes
Rear Hub
Joytech JY-752DSE, 135x9 mm width rear hub, 32 spoke holes
Rims
MERIDA CC, 17 mm inner width, material: aluminium
Spokes
Steel UCP
Tires
MERIDA K1171, 700x40C, wire
Brakes
Brakes
Promax. MTV-117A, V-brake
Cockpit
Handlebar
MERIDA CC, material: steel, 620 mm width, 30 mm rise
Headset
FSA TH888
Seat
Saddle
MERIDA Cross Sport
Seatpost
MERIDA TK, 27.2 mm diameter, 13 mm setback, 40 mm seatpost suspension travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.515 mm | 1.509 mm | 1.504 mm | 1.476 mm | 1.494 mm | 1.522 mm | 1.6 mm |
| Front Center | 632 mm | 631 mm | 641 mm | 646 mm | 650 | 666 mm | 669 mm |
| Rake | 50 mm | 51 mm | 49 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 63 mm | 65 mm | 61 mm | 61 mm | 61 mm | 58 mm |
| Stack | 597 mm | 599 mm | 609 mm | 611 mm | 620 mm | 644 mm | 675 mm |
| Reach | 394 mm | 397 mm | 405 mm | 414 mm | 415 mm | 423 mm | 422 mm |
| Top Tube Length | 565 mm | 575 mm | 585 mm | 595 mm | 605 mm | 620 mm | 635 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 520 mm | 550 mm | 580 mm | 610 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 125 mm | 125 mm | 135 mm | 135 mm | 145 mm | 170 mm | 200 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1073 mm | 1072 mm | 1082 mm | 1087 mm | 1091 mm | 1107 mm | 1110 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 711 mm | 727 mm | 743 mm | 774 mm | 798 mm | 825 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

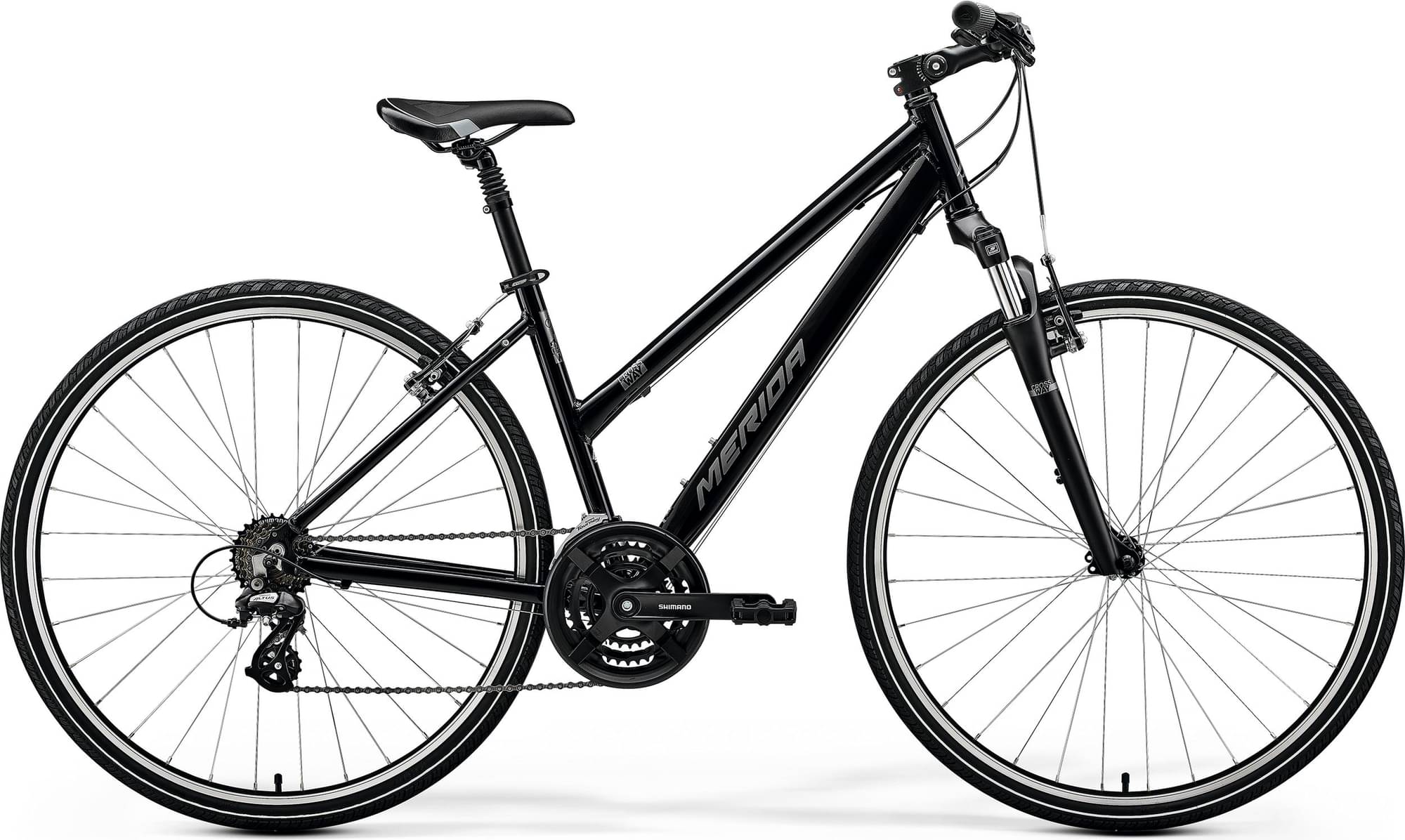

CROSSWAY L 10-V is a Merida Crossway model. Merida launched 220 bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Merida CROSSWAY 10-V 2024 is the most affordable bike of this model and has a price of 513$. On the other hand, Merida CROSSWAY L 100 2024, is the most expensive and costs 706$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid bikes
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, even though the average price of a Hybrid bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Merida released this model in 2024, its price was 513$. Doing a quick comparison, we notice that CROSSWAY L 10-V price is 9.55% smaller than the average cost of a Hybrid bike.
Overview of components
Fork
This bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The CROSSWAY L 10-V 2024 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida CROSSWAY L 10-V has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
