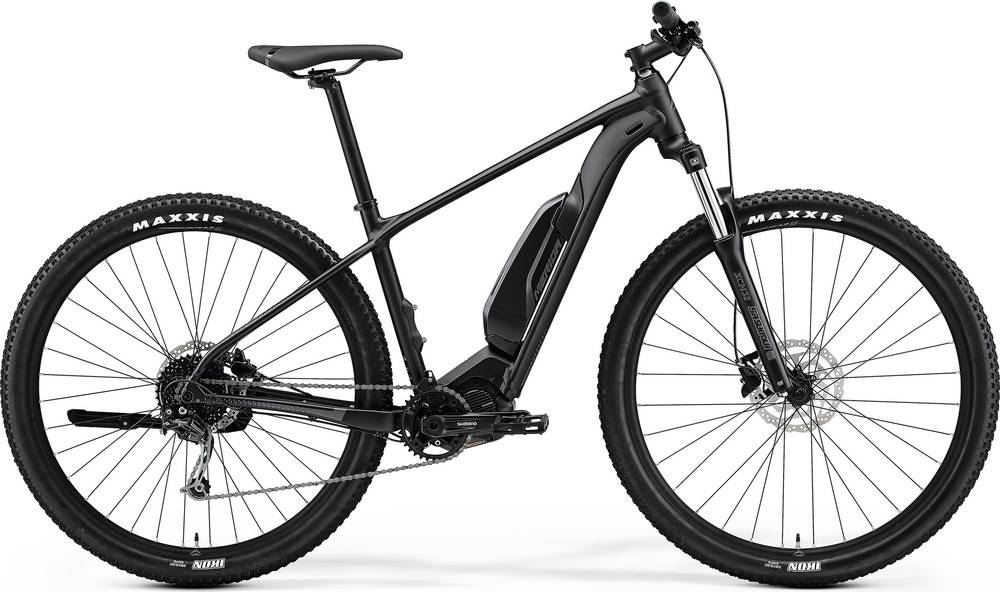

Merida eBIG.NINE 300 SE 2021
2021 E-bike
Estimate price |
3,346$
Weight | 22.75 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Deore, Alivio -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.NINE LITE, material: aluminium, 29x2.25" max. wheelsize, 148x12mm axle standard, external, max. 504 Wh
Suspension Fork
Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 29x2.4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore RDM592 9
Shift Levers
Shimano Alivio M3100 9
Cassette
Shimano HG200, 11-36 teeth, 9 speed
Crank
Shimano CRE70-B, 34 teeth, Shimano FC-E8000
Bottom Bracket
included
Chain
HG53
Wheels
Front Hub
Shimano MT400 / Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400 / Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Ikon, 29x2.2", kevlar bead
Brakes
Brakes
Shimano MT-200, 2 piston
Disk Rotors
Shimano RT10, 180 mm
Cockpit
Stem
MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, 6° stem angle, 80 mm-M, 90 mm-L, 100 mm-XL
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
Merida 2341 Neck
Seat
Saddle
MERIDA COMP CC, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8010 504Wh
Remote
Shimano SC-E5000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.54 mm | 1.5 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Front Center | 673 mm | 693 mm | 714 mm |
| Rake | 51 mm | 50 mm | 51 mm |
| Trail | 86 mm | 87 mm | 86 mm |
| Stack | 630 mm | 639 mm | 648 mm |
| Reach | 398 mm | 416 mm | 433 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1119 mm | 1139 mm | 1160 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 729 mm | 773 mm | 815 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
eBIG.NINE 300 SE completes the Merida E Ebignine model. There are 51 e-bikes that carry this model name. You can easily view all of the Merida E Ebignine e-bikes models from 2021, here.
Model range prices
Merida eBIG.NINE 300 SE EQ 2021 is the most economical model, with a starting price of 2693$. Merida eBIG.NINE 400 2021 on the other hand costs 3892$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Merida eBIG.NINE 300 SE price was 3041$. In conclusion, this e-bike price is 23.97% higher than the price of the average Crosscountry e-bike.
Average weight for Crosscountry e-bikes
Crosscountry e-bikes have an average weight of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
eBIG.NINE 300 SE weighs 22.75 kg (50.16 lbs) and is slightly lighter than the average. In other words, this model is 2.02% lighter than the average Crosscountry e-bike.
eBIG.NINE 300 SE components
Fork
The SunTour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on eBIG.NINE 300 SE are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eBIG.NINE 300 SE comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Merida eBIG.NINE 300 SE e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
