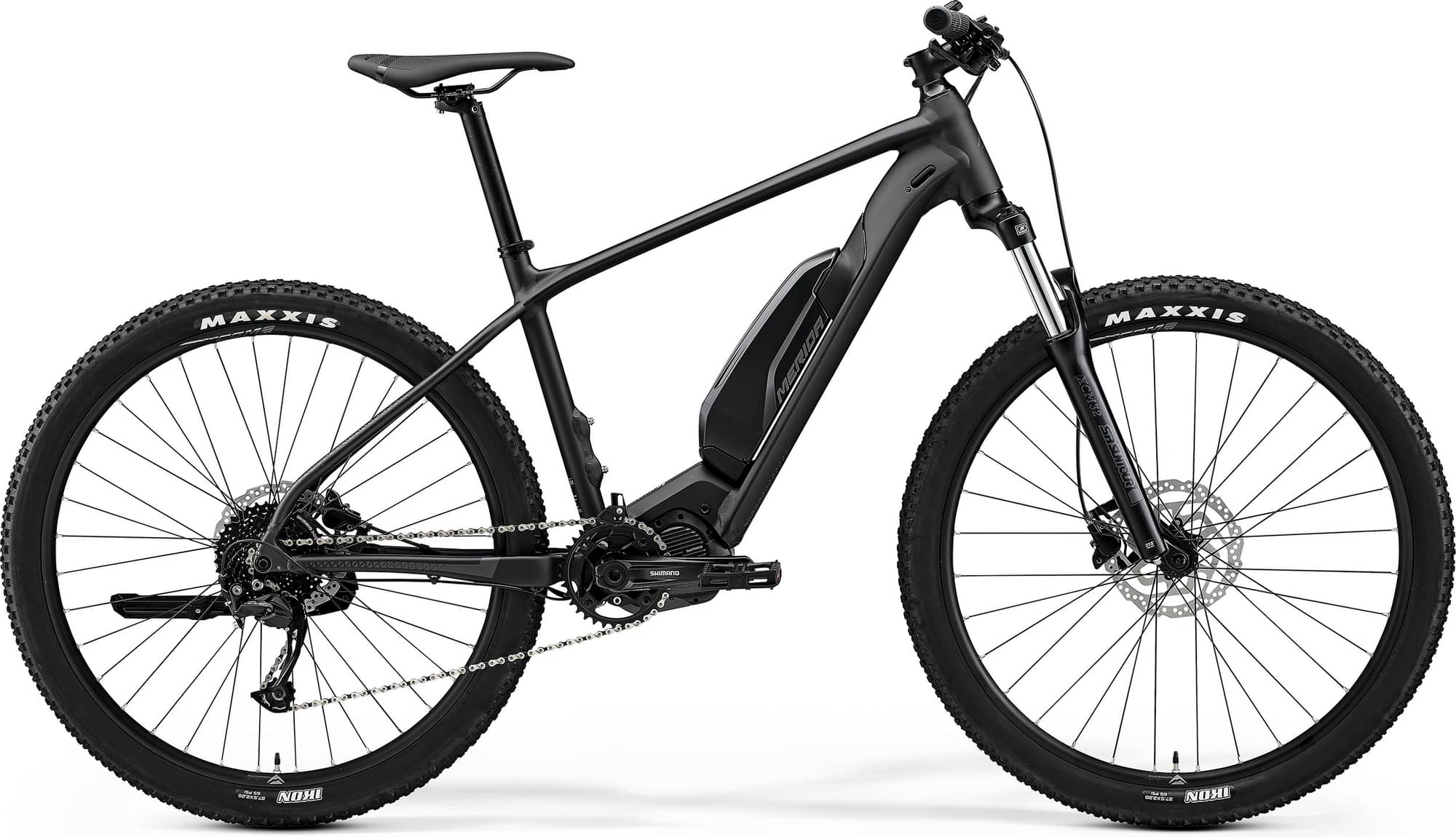

Merida eBIG SEVEN 300 SE 2023
2023 E-bike
Estimate price |
3,680$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.SEVEN LITE, material: aluminium, max. wheelsize 27.5x2.20" without fender max./ 27.5"x2.00" with fender max. wheelsize, 148x12mm axle standard, MUK 37 Hanger
Suspension Fork
SR Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset, 27.5x2.2" max wheelsize
Drivetrain
Rear Derailleur
Shimano Alivio M3100, SGS
Shift Levers
Shimano Alivio
Cassette
Shimano HG200, 11-36 teeth, 9 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e9S
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Front: Maxxis Ikon, 27.5x2.2", Rear: Maxxis Ikon, 27.5x2.2"
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Stem
MERIDA EXPERT CC, material: aluminium, 31.8mm diameter, 5° stem angle, 70 mm-XS/S, 80 mm-M
Handlebar
MERIDA EXPERT CC, 720mm width, 10mm rise
Headset
MERIDA 2341
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8010, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm |
| Front Center | 666 mm | 667 mm | 688 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm |
| Stack | 567 mm | 577 mm | 586 mm |
| Reach | 399 mm | 397 mm | 414 mm |
| Top Tube Length | 568 mm | 568 mm | 588 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 330 mm | 380 mm | 430 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 453 mm | 436 mm | 436 mm |
| Wheelbase | 1118 mm | 1102 mm | 1123 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Standover Height | 671 mm | 708 mm | 747 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview
eBIG SEVEN 300 SE completes the Merida E Ebig model. Merida released 3 e-bikes variations of this model so far. You can easily view all of the Merida E Ebig e-bikes models from 2023, here.
Model range prices
The most economical model, the Merida eBIG SEVEN 300 SE 2023 has a starting price of 3345$. Merida eBIG TOUR 600 EQ 2023 on the other hand is the most expensive at 4622$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 3345$. In conclusion, this e-bike price is 36.36% higher than the price of the average Crosscountry e-bike.
Overview of components
Fork
Merida eBIG SEVEN 300 SE 2023 e-bike is equipped with the Suntour XCM fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The eBIG SEVEN 300 SE 2023 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida eBIG SEVEN 300 SE has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, it won’t be difficult to find the right one for you.
