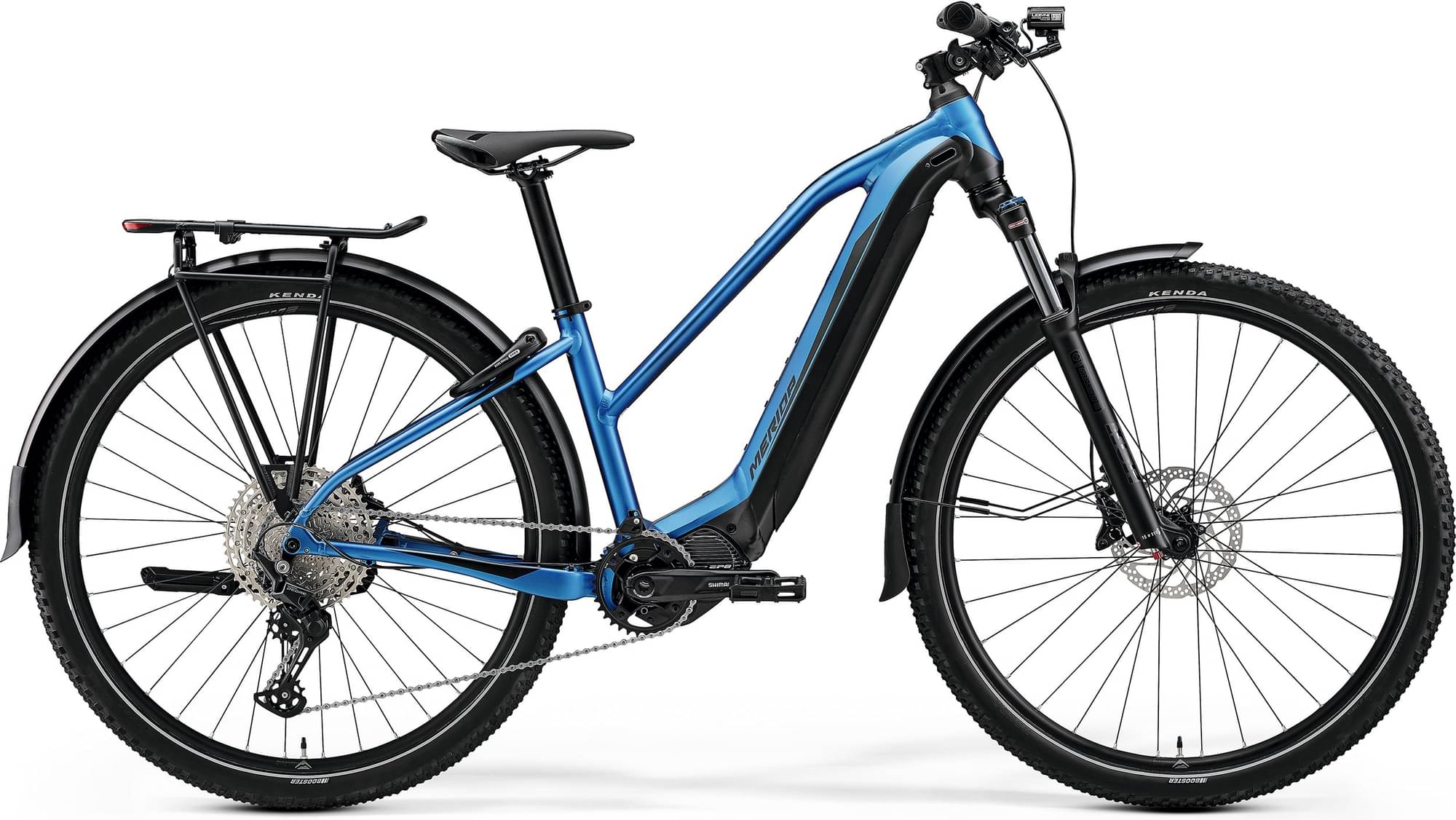

Merida eBIG TOUR 600 EQ 2023
2023 E-bike
Estimate price |
5,085$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano E8036, 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eBIG.TOUR LITE III, material: aluminium, 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize, 148x12mm axle standard, MUK 37 Hanger
Suspension Fork
SR Suntour XCR34 LOR DS, Air Boost, 100mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore RDM5100 11
Shift Levers
Shimano Deore M5100
Cassette
Shimano M5100, 11-51 teeth, 11 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e11S EPT
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Front: Kenda Booster, 29x2.2", wire, Rear: Kenda Booster, 29x2.2", wire
Brakes
Brakes
Shimano M4100, 4 piston, 2 piston
Cockpit
Stem
MERIDA EXPERT CT, material: aluminium, 31.8mm diameter, adjustable, 90 mm
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA 8155
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.46 mm | 1.43 mm |
| Front Center | 707 mm | 725 mm | 746 mm | 767 mm |
| Rake | 51 mm | 52 mm | 51 mm | 51 mm |
| Trail | 89 mm | 88 mm | 89 mm | 89 mm |
| Stack | 633 mm | 637 mm | 647 mm | 656 mm |
| Reach | 408 mm | 424 mm | 442 mm | 459 mm |
| Top Tube Length | 585 mm | 602 mm | 622 mm | 642 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 462 mm | 462 mm | 462 mm | 462 mm |
| Wheelbase | 1162 mm | 1180 mm | 1201 mm | 1222 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 627 mm | 650 | 662 mm | 674 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
eBIG TOUR 600 EQ is part of the Merida E Ebig model. Merida launched 3 e-bikes of this model so far. Take a sneak peek at all Merida E Ebig e-bikes models from 2023, by clicking here.
Model range prices
Merida eBIG SEVEN 300 SE 2023 is the cheapest e-bike model and costs 3345$. Merida eBIG TOUR 600 EQ 2023 is the most expensive one and costs 4622$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 4622$. If we compare this with the average Commuter e-bike cost we notice that the price is 79.91% higher.
eBIG TOUR 600 EQ components
Fork
The eBIG TOUR 600 EQ comes factory-installed with the Suntour XCR Air fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on eBIG TOUR 600 EQ are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The eBIG TOUR 600 EQ has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
