Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 133mm -
Fork Suntour XCR Air
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EN806, 630Wh Shimano EN805 504Wh for XS only -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
Suntour XCR34 LOR DS, Air Boost, 140mm, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Rear Shock
SUNTOUR RS-EDGE-TR-LO-R8-M6, lockout
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano M4100, 11-46 teeth, 10 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e10s
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
MAXXIS REKON, 29x2.4", wire, DUAL
Brakes
Brakes
TEKTRO HD-M745, 4 piston
Cockpit
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA-8152 / MERIDA-8157 for M size
Seat
Saddle
MERIDA EXPERT CC, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Shimano EN806, 630Wh Shimano EN805 504Wh for XS only
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.4 mm | 1.35 mm | 1.31 mm |
| Front Center | 722 mm | 744 mm | 766 mm | 788 mm | 810 mm |
| Rake | 47 mm | 47 mm | 47 mm | 49 mm | 48 mm |
| Trail | 112 mm | 112 mm | 112 mm | 109 mm | 110 mm |
| Stack | 627 mm | 632 mm | 636 mm | 640 mm | 645 mm |
| Reach | 415 mm | 435 mm | 455 mm | 474 mm | 494 mm |
| Top Tube Length | 566 mm | 586 mm | 608 mm | 629 mm | 650 |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 405 mm | 415 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1165 mm | 1187 mm | 1209 mm | 1231 mm | 1253 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 734 mm | 735 mm | 732 mm | 738 mm | 752 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

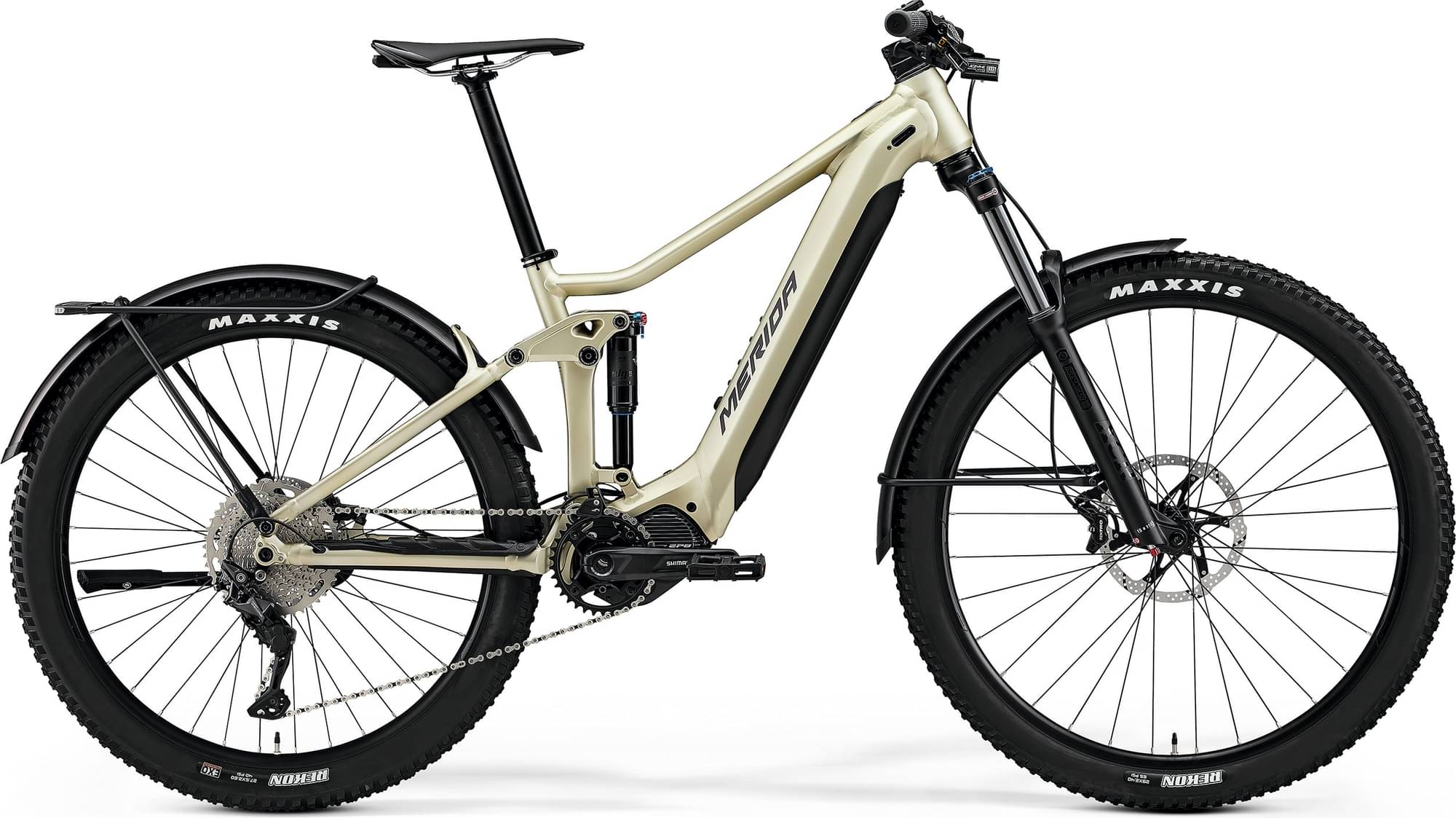

eONE-FORTY 400 EQ (EP6) is a Merida E Eone Forty model. 41 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Merida eONE-FORTY 400 2023 is the most affordable e-bike of this model and has a price of 5054$. On the other hand, Merida eONE-FORTY 700 2023, is the most expensive and costs 6881$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
eONE-FORTY 400 EQ (EP6) components
Fork
The eONE-FORTY 400 EQ (EP6) comes factory-installed with the Suntour XCR Air fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is SUNTOUR RS-EDGE-TR-LO-R8-M6, with a travel distance of 133mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Merida eONE-FORTY 400 EQ (EP6) 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The eONE-FORTY 400 EQ (EP6) has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
