Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 133mm -
Fork Suntour Zeron
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Simplo Internal Battery, 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-FORTY LITE III, material: aluminium, 133mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
SR Suntour ZERON 35-Boost LOR, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Rear Shock
SR Suntour EDGE, lockout
Drivetrain
Rear Derailleur
Shimano Deore RDM5100 11
Shift Levers
Shimano SL -MT500-IL / Shimano Deore M5100
Cassette
Shimano M5100, 11-51 teeth, 11 speed
Crank
Shimano CRE70-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e11S EPT
Pedals
VP VPE-537
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Maxxis Rekon, 29x2.4", wire, DUAL
Brakes
Brakes
Shimano M4100, 4 piston
Cockpit
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA EXPERT CC, V-mount, incl. MERIDA minitool
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, S 100mm travel seatpost - M/L 125mm travel seatpost - XL 150mm travel seatpost
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Simplo Internal Battery, 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.36 mm | 1.31 mm |
| Front Center | 744 mm | 766 mm | 788 mm | 810 mm |
| Rake | 47 mm | 47 mm | 49 mm | 48 mm |
| Trail | 112 mm | 112 mm | 109 mm | 110 mm |
| Stack | 625 mm | 629 mm | 633 mm | 638 mm |
| Reach | 428 mm | 448 mm | 467 mm | 487 mm |
| Top Tube Length | 579 mm | 601 mm | 622 mm | 643 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 415 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1180 mm | 1202 mm | 1224 mm | 1246 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 728 mm | 725 mm | 731 mm | 745 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

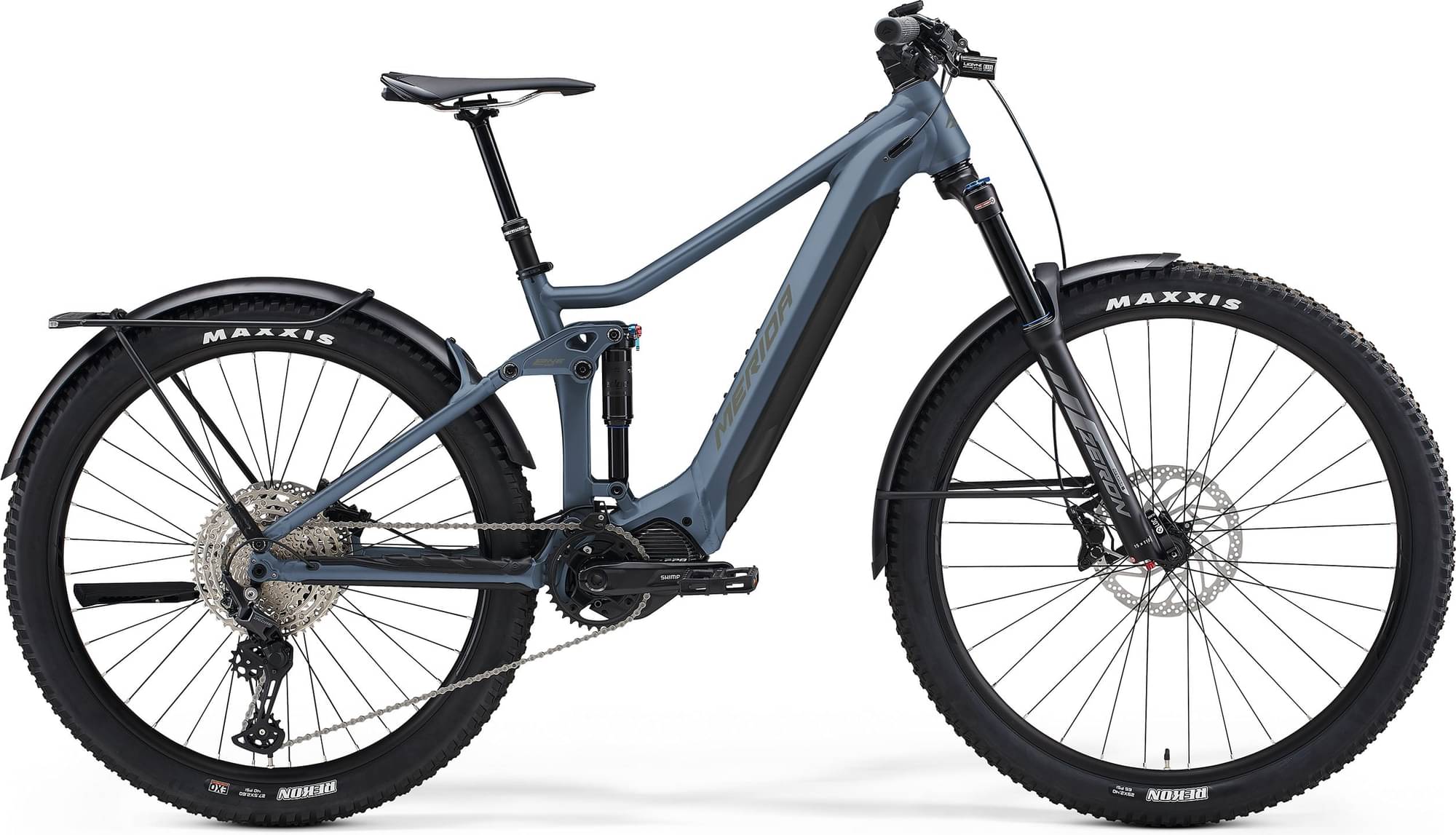

eONE-FORTY 675 EQ completes the Merida E Eone Forty model. There are 32 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Merida eONE-FORTY 400 2023 is the most affordable e-bike of this model and has a price of 5048$. On the other hand, Merida eONE-FORTY 700 2023, is the most expensive and costs 6873$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
The Suntour Zeron is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the SR Suntour EDGE model, with a travel of 133mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Merida eONE-FORTY 675 EQ 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the eONE-FORTY 675 EQ. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
