Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8035, 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY CFA, material: carbon, 150mm suspension travel, 29/27.5" wheelsize, 148x12mm axle standard, intube, max. 504 Wh
Suspension Fork
Rock Shox 35 Gold RL, Air, 160mm suspension travel, Tapered, 51mm fork offset
Rear Shock
Rock Shox Super Deluxe Select+, platform
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore
Cassette
Shimano HG500, 11-42 teeth, 10 speed
Crank
Shimano CRE70-B, 34 teeth, Shimano FC-E8000
Bottom Bracket
included
Chain
CNHG54
Wheels
Front Hub
Shimano Deore, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano Deore, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Maxxis Assegai, 29x2.5 ", fold, 3C EXO+
Brakes
Brakes
Shimano MT-520, 4 piston
Cockpit
Handlebar
MERIDA Expert eTR, material: aluminium, 780mm width, 20mm rise
Headset
MERIDA 1901
Seat
Saddle
MERIDA Comp CC, V-mount, incl. MERIDA minitool
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, XS/S 100mm travel seatpost - M/L/XL 125mm travel seatpost
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8035, 504Wh
Remote
Shimano SC-E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.5 mm | 1.44 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 729 mm | 751 mm | 773 mm | 800 mm | 826 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 633.5 mm | 638 mm | 642.5 mm | 656.5 mm | 670 mm |
| Reach | 405 mm | 425 mm | 445 mm | 465 mm | 485 mm |
| Top Tube Length | 567.5 mm | 588.5 mm | 610 mm | 633.5 mm | 657 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 405 mm | 420 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1173 mm | 1195 mm | 1217 mm | 1243 mm | 1269 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm | 17 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

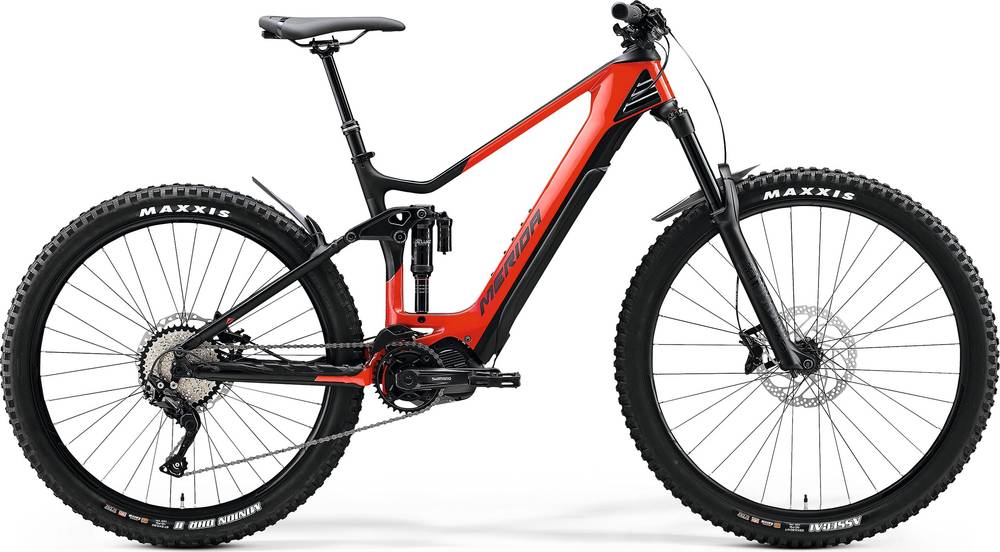

Model Overview
eONE-SIXTY 5000 is part of the Merida E Eone Sixty model. There are 43 e-bikes that carry this model name. You can easily view all of the Merida E Eone Sixty e-bikes models from 2020, here.
Model range prices
Merida eONE-SIXTY 500 SE 2020 is the cheapest e-bike model and costs 4683$. Merida eONE-SIXTY 10K 2020 is the most expensive one and costs 11556$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro e-bikes
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida eONE-SIXTY 5000 it’s weighing 22.89 kg (50.46 lbs). At this weight, is slightly lighter than average. In conclusion, the average Enduro e-bike weighs 2.32% more than eONE-SIXTY 5000.
Overview of components
Fork
The eONE-SIXTY 5000 comes factory-installed with the RockShox 35 Gold RL fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the Rock Shox Super Deluxe Select+ rear shock model, which has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on eONE-SIXTY 5000 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eONE-SIXTY 5000 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
eONE-SIXTY 5000 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
