Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Simplo Internal Battery, 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY LITE III, material: aluminium, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
Rock Shox 35 Gold RL, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.8" max wheelsize
Rear Shock
Rock Shox Deluxe Select+, platform
Drivetrain
Rear Derailleur
Shimano Deore RDM5100 11
Shift Levers
Shimano SL -MT500-IL / Shimano Deore M5100
Cassette
Shimano M5100, 11-51 teeth, 11 speed
Crank
Shimano CRE70B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e11S EPT
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Kenda Regolith, 29x2.4", wire
Brakes
Brakes
Shimano M4100, 4 piston
Disk Rotors
Shimano RT30 / Shimano RTEM300, 203 mm
Cockpit
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP TR, 30.9mm diameter, 0mm setback, XS/S 100mm travel seatpost - M/L 125mm travel seatpost - XL 150mm travel seatpost
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Simplo Internal Battery, 750Wh
Remote
Shimano SC-E5003A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 357 mm | 357 mm | 357 mm | 357 mm |
| Front Center | 751 mm | 773 mm | 795 mm | 817 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm |
| Trail | 120 mm | 120 mm | 120 mm | 121 mm |
| Stack | 631 mm | 636 mm | 640 mm | 645 mm |
| Reach | 418 mm | 438 mm | 458 mm | 478 mm |
| Top Tube Length | 582 mm | 603 mm | 624 mm | 645 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 415 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1188 mm | 1210 mm | 1232 mm | 1254 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 734 mm | 731 mm | 737 mm | 751 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

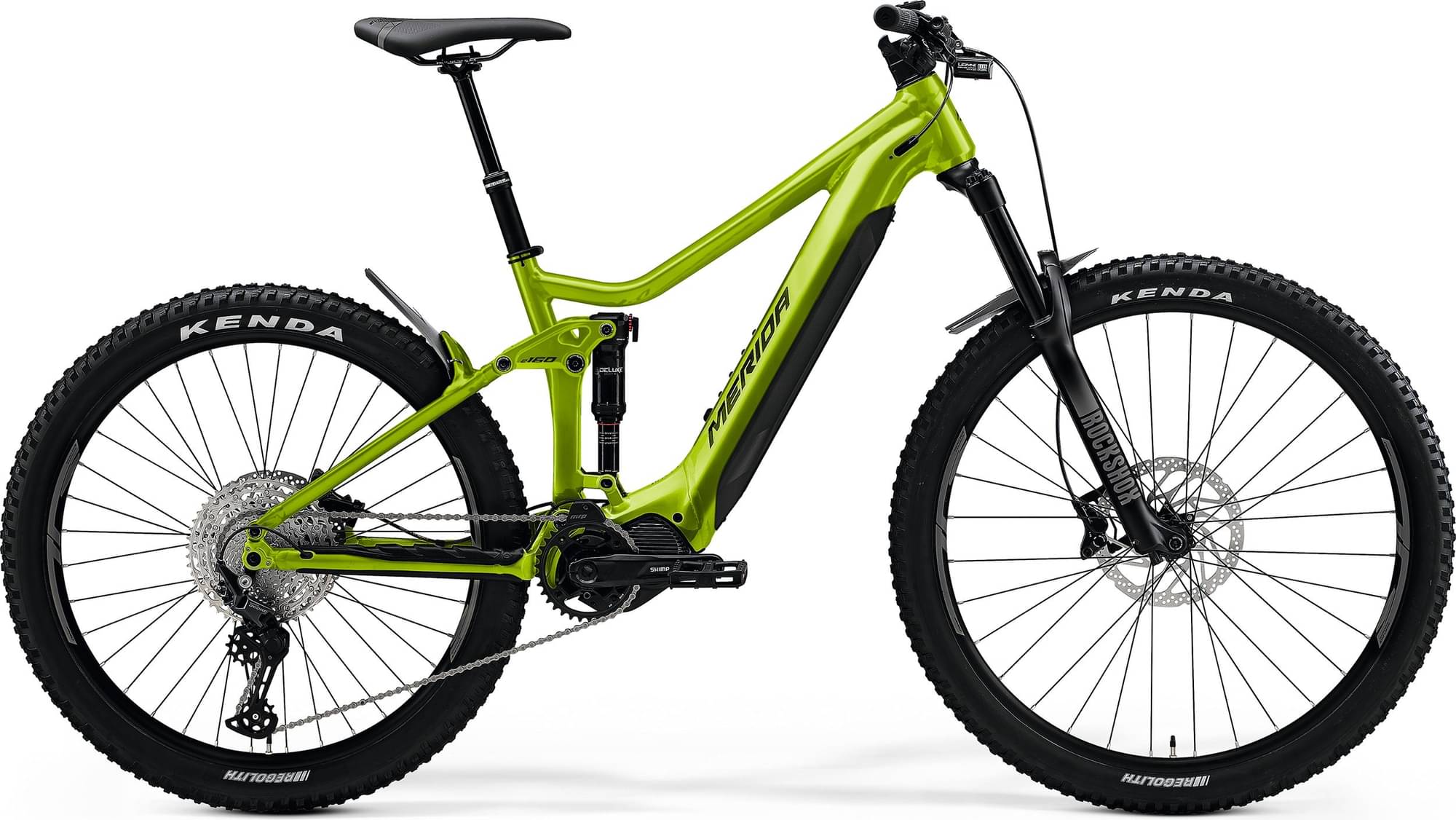

eONE-SIXTY 575 belongs to the Merida E Eone Sixty model. 43 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Merida eONE-SIXTY 500 2022 is the most economical model, with a starting price of 5900$. Merida eONE-SIXTY 10K 2022 on the other hand costs 12164$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
eONE-SIXTY 575 components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the Rock Shox Deluxe Select+ model, with a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The eONE-SIXTY 575 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The eONE-SIXTY 575 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Merida model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
