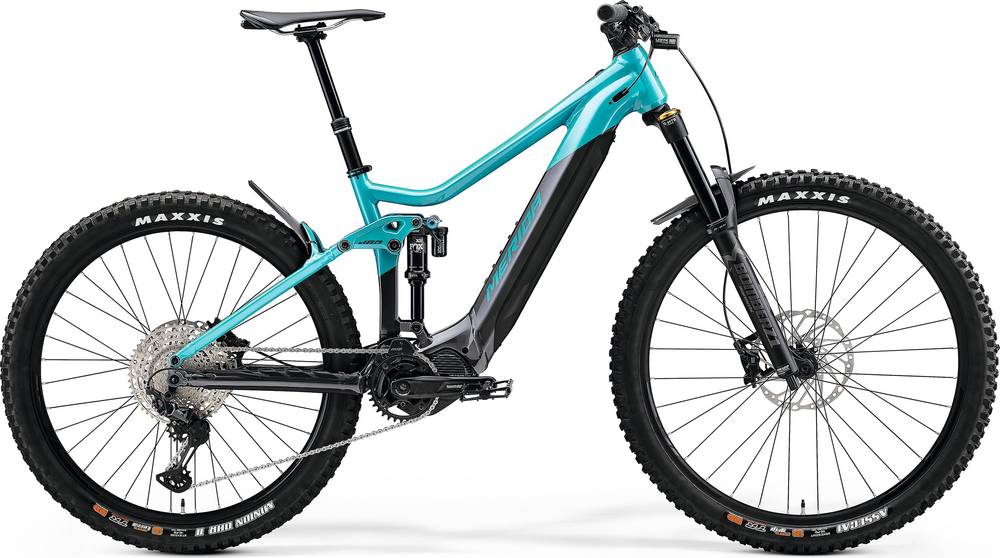

Merida eONE-SIXTY 700 2021
2021 E-bike
Estimate price |
7,093$
Weight | 24.04 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Marzocchi Bomber Z1
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano E8036 630Wh / E8035 504Wh XS -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY LITE III, material: aluminium, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube, max. 630 Wh
Suspension Fork
Marzocchi Z1 Ebike+, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.6" max wheelsize
Rear Shock
FOX Float DPX2 Performance, platform
Drivetrain
Rear Derailleur
Shimano XT RDM8100 Shadow+ 12
Shift Levers
Shimano SL -MT500-IL / Shimano DEORE M6100 12
Cassette
Shimano M6100, 10-51 teeth, 12 speed
Crank
Shimano CRE80-12-B, 34 teeth, Shimano FCEM600
Bottom Bracket
included
Chain
CN-M6100
Wheels
Front Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Assegai, 29x2.5 ", fold, TR DD 3C MaxxGrip
Brakes
Brakes
Shimano SLX, 4 piston
Disk Rotors
Shimano RT64 / Shimano RTEM600, 203 mm
Cockpit
Stem
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, GoPro & Supernova mount, 40 mm all sizes
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA-8152
Seat
Saddle
MERIDA EXPERT CC, V-mount
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036 630Wh / E8035 504Wh XS
Remote
Shimano SC-E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.5 mm | 1.44 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 731 mm | 751 mm | 773 mm | 795 mm | 817 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 45 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 113 mm |
| Stack | 638 mm | 638 mm | 643 mm | 647 mm | 652 mm |
| Reach | 405 mm | 425 mm | 445 mm | 465 mm | 485 mm |
| Top Tube Length | 568 mm | 589 mm | 610 mm | 631 mm | 652 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 405 mm | 415 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1175 mm | 1195 mm | 1217 mm | 1239 mm | 1261 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 742 mm | 741 mm | 738 mm | 744 mm | 758 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
eONE-SIXTY 700 is a Merida E Eone Sixty model. Merida released 43 e-bikes variations of this model so far. Take a sneak peek at all Merida E Eone Sixty e-bikes models from 2021, by clicking here.
Model range prices
Merida eONE-SIXTY 300S 2021 is the cheapest e-bike model and costs 4622$. Merida eONE-SIXTY 10K 2021 is the most expensive one and costs 10948$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 6447$. Comparing the average cost of an Enduro e-bike to this one, you will see that eONE-SIXTY 700 price is 34.73% higher.
Enduro e-bikes average weight
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, eONE-SIXTY 700 has a weight of 24.04 kg (53 lbs). To sum up, it’s 2.65% heavier than the average weight of Enduro e-bikes.
eONE-SIXTY 700 components
Fork
The eONE-SIXTY 700 comes factory-installed with the Marzocchi Bomber Z1 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Merida eONE-SIXTY 700 e-bike has the FOX Float DPX2 Performance model installed, and has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the eONE-SIXTY 700 e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The eONE-SIXTY 700 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Merida eONE-SIXTY 700 e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Merida eONE-SIXTY 700 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
