Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Marzocchi Bomber Z1
-
Groupset XT, Deore -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Simplo Internal Battery, 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY LITE III, material: aluminium, 150mm suspension travel, 27.5x2.8" max. wheelsize, 148x12mm axle standard, intube
Suspension Fork
Marzocchi Z1 Ebike+, Air, 160mm suspension travel, Tapered, 51mm fork offset, 29x2.6" max wheelsize
Rear Shock
FOX Float DPX2 Performance, platform
Drivetrain
Rear Derailleur
Shimano XT RDM8100 Shadow+ 12
Shift Levers
Shimano SL -MT500-IL / Shimano Deore M6100
Cassette
Shimano M6100, 10-51 teeth, 12 speed
Crank
Shimano CRE80-12-B, 34 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC e12T EPT
Wheels
Front Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA EXPERT TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Maxxis Assegai, 29x2.5 ", fold, TR EXO+ 3C MaxxGrip
Brakes
Brakes
Shimano SLX, 4 piston
Disk Rotors
Shimano RT64 / Shimano RTEM600, 203 mm
Cockpit
Handlebar
MERIDA EXPERT eTR, 780mm width, 20mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA EXPERT CC, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 100mm travel seatpost - S 125mm travel seatpost - M 150mm travel seatpost - L/XL 170mm travel seatpost
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Simplo Internal Battery, 750Wh
Remote
Shimano SC-E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 357 mm | 357 mm | 357 mm | 357 mm |
| Front Center | 751 mm | 773 mm | 795 mm | 817 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm |
| Trail | 120 mm | 120 mm | 120 mm | 121 mm |
| Stack | 631 mm | 636 mm | 640 mm | 645 mm |
| Reach | 418 mm | 438 mm | 458 mm | 478 mm |
| Top Tube Length | 582 mm | 603 mm | 624 mm | 645 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 415 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1188 mm | 1210 mm | 1232 mm | 1254 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 734 mm | 731 mm | 737 mm | 751 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

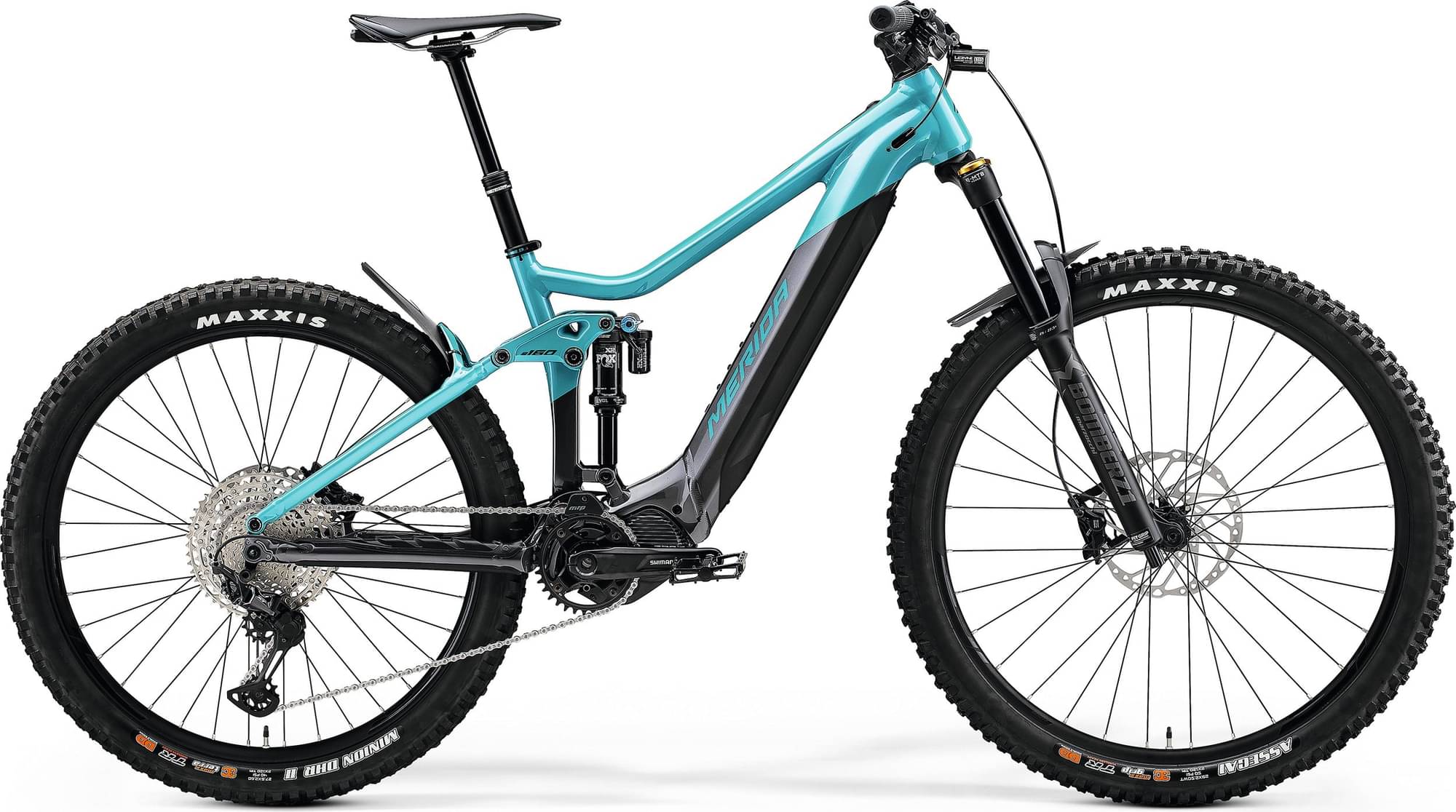

eONE-SIXTY 775 completes the Merida E Eone Sixty model. Merida launched 43 e-bikes of this model so far. Take a sneak peek at all Merida E Eone Sixty e-bikes models from 2022, by clicking here.
Model range prices
Merida eONE-SIXTY 500 2022 is the cheapest e-bike model and costs 5900$. Merida eONE-SIXTY 10K 2022 is the most expensive one and costs 12164$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
eONE-SIXTY 775 components
Fork
This e-bike has the Marzocchi Bomber Z1 fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX Float DPX2 Performance rear shock model, which has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the eONE-SIXTY 775 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eONE-SIXTY 775 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Merida eONE-SIXTY 775 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
