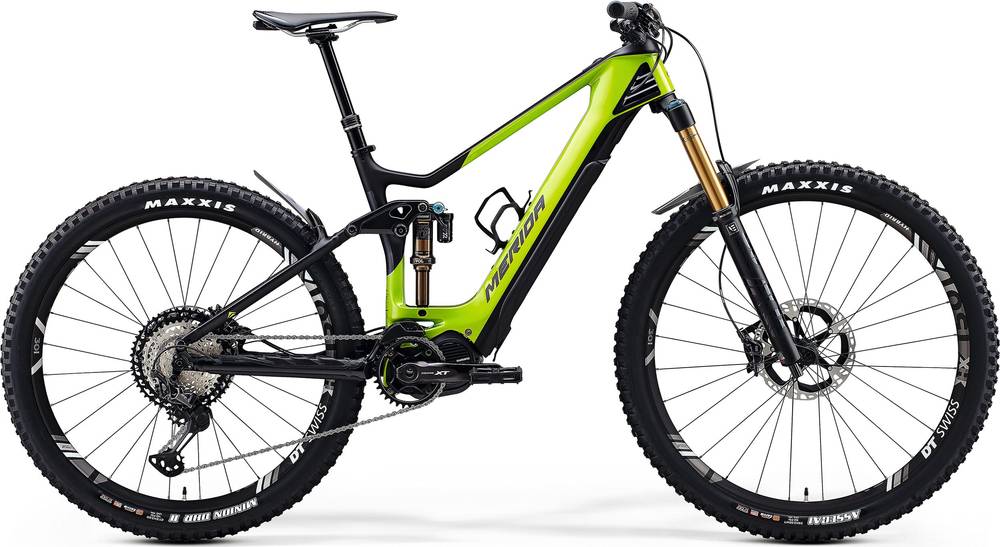

Merida eONE-SIXTY 9000 2020
2020 E-bike
Estimate price |
9,368$
Weight | 22.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XT, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8035, 504Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY CFA, material: carbon, 150mm suspension travel, 29/27.5" wheelsize, 148x12mm axle standard, intube, max. 504 Wh
Suspension Fork
FOX 36 Factory E-Bike+, Air, 160mm suspension travel, Tapered, 51mm fork offset
Rear Shock
FOX Factory Float DPX2
Drivetrain
Rear Derailleur
Shimano XT RDM8100 Shadow+
Shift Levers
Shimano SL -MT800-IL / Shimano XT 12
Cassette
Shimano M8100, 10-51 teeth, 12 speed
Crank
Shimano CRE80-12-B, 34 teeth, Shimano FC-M8050
Bottom Bracket
included
Chain
CNM8100
Wheels
Front Hub
MERIDA COMP TR
Rear Hub
MERIDA COMP TR
Rims
DT Swiss Spline HX1501 ONE 30 boost, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, microspline, material: aluminium, Tubeless ready (tubeless tape and valves included)
Tires
Maxxis Assegai / Maxxis DHR II
Brakes
Brakes
Shimano XT
Disk Rotors
Shimano RT-MT900 / Shimano RT-EM910
Cockpit
Handlebar
MERIDA Expert eTR, material: aluminium, 780mm width, 20mm rise
Headset
MERIDA 1901
Seat
Saddle
MERIDA Expert CC, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT TR, 30.9mm diameter, 0mm setback, XS 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost
Motor & Battery
Motor
Shimano E8000, 70Nm
Battery
Shimano E8035, 504Wh
Remote
Shimano SC-E8000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm |
| Front Center | 773 mm | 800 mm | 826 mm |
| Rake | 46 mm | 46 mm | 46 mm |
| Trail | 111 mm | 111 mm | 111 mm |
| Stack | 643.5 mm | 657.5 mm | 671 mm |
| Reach | 446 mm | 466 mm | 486 mm |
| Top Tube Length | 611 mm | 634.5 mm | 658 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1218 mm | 1244 mm | 1270 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
eONE-SIXTY 9000 is a Merida E Eone Sixty model. There are 43 e-bikes that carry this model name. You can easily view all of the Merida E Eone Sixty e-bikes models from 2020, here.
Model range prices
The most economical model, the Merida eONE-SIXTY 500 SE 2020 has a starting price of 4683$. Merida eONE-SIXTY 10K 2020 on the other hand is the most expensive at 11556$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2020 and its price was 8515$. Comparing this to the average Enduro e-bike price, we see that the price is 77.95% higher.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 22.2 kg (48.94 lbs), Merida e-bike is a bit lighter than average. In other words, this model is 5.5% lighter than the average Enduro e-bike.
eONE-SIXTY 9000 components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Factory Float DPX2 rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the eONE-SIXTY 9000 e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Merida eONE-SIXTY 9000 e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Merida eONE-SIXTY 9000 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
