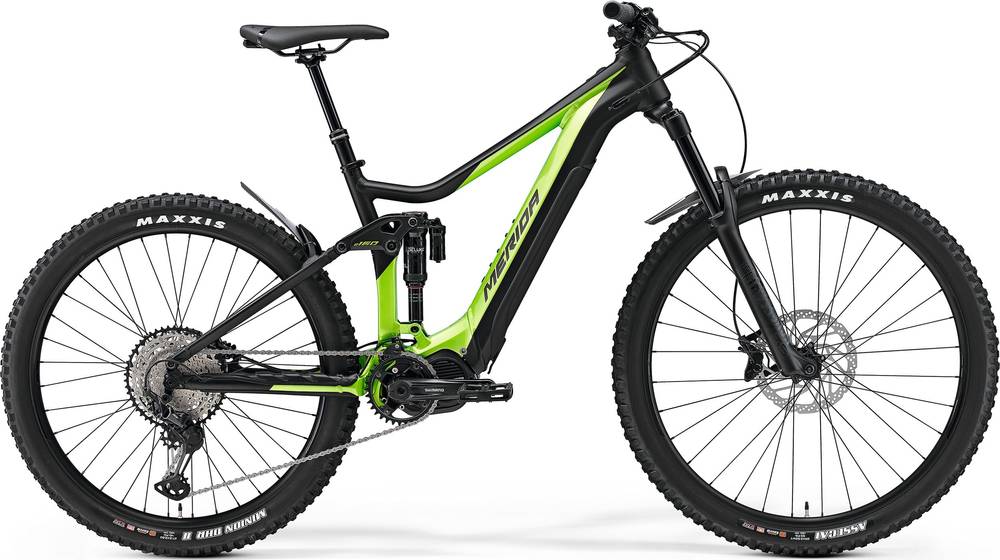

Merida eONE-SIXTY LIMITED-EDITION 2020
2020 E-bike
Estimate price |
6,022$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Fork RockShox 35 Gold RL -
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano E8035, 504Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eONE-SIXTY LITE II, material: aluminium
Suspension Fork
Rock Shox 35 Gold RL, Air
Rear Shock
Rock Shox Super Deluxe Select+, platform
Drivetrain
Rear Derailleur
Shimano XT RDM8100 Shadow+
Shift Levers
Shimano SLX 12
Cassette
Shimano M7100, 10-51 teeth
Crank
Shimano CRE80-12-B, 34 teeth
Bottom Bracket
included
Chain
CN-M7100
Wheels
Front Hub
MERIDA COMP TR
Rear Hub
MERIDA COMP TR
Rims
MERIDA COMP TR, 29mm inner width
Tires
Maxxis Assegai / Maxxis DHR II
Brakes
Brakes
Shimano MT-520 / Shimano MT-500
Disk Rotors
Shimano RT30 / Shimano RTEM300
Cockpit
Handlebar
MERIDA EXPERT eTR, material: aluminium
Headset
Merida 1901
Seat
Saddle
MERIDA COMP CC
Seatpost
MERIDA COMP TR, 30.9mm diameter
Motor & Battery
Motor
Shimano E8000, 70Nm
Battery
Shimano E8035, 504Wh
Remote
Shimano SC-E7000
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.5 mm | 1.44 mm | 1.41 mm | 1.38 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 729 mm | 751 mm | 773 mm | 800 mm | 826 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 634 mm | 638 mm | 643 mm | 657 mm | 670 mm |
| Reach | 405 mm | 425 mm | 445 mm | 465 mm | 485 mm |
| Top Tube Length | 568 mm | 589 mm | 610 mm | 634 mm | 657 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 405 mm | 420 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1173 mm | 1195 mm | 1217 mm | 1243 mm | 1269 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 742 mm | 741 mm | 739 mm | 760 mm | 782 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
eONE-SIXTY LIMITED-EDITION is a Merida E Eone Sixty model. 43 e-bikes variations carry this model name so far. Take a sneak peek at all Merida E Eone Sixty e-bikes models from 2020, by clicking here.
Model range prices
Merida eONE-SIXTY 500 SE 2020 is the most economical model, with a starting price of 4683$. Merida eONE-SIXTY 10K 2020 on the other hand costs 11556$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2020 and its price was 5474$. In conclusion, this e-bike price is 14.4% higher than the price of the average Enduro e-bike.
Overview of components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the eONE-SIXTY LIMITED-EDITION model has 27.5″ aluminum wheels. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eONE-SIXTY LIMITED-EDITION comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
