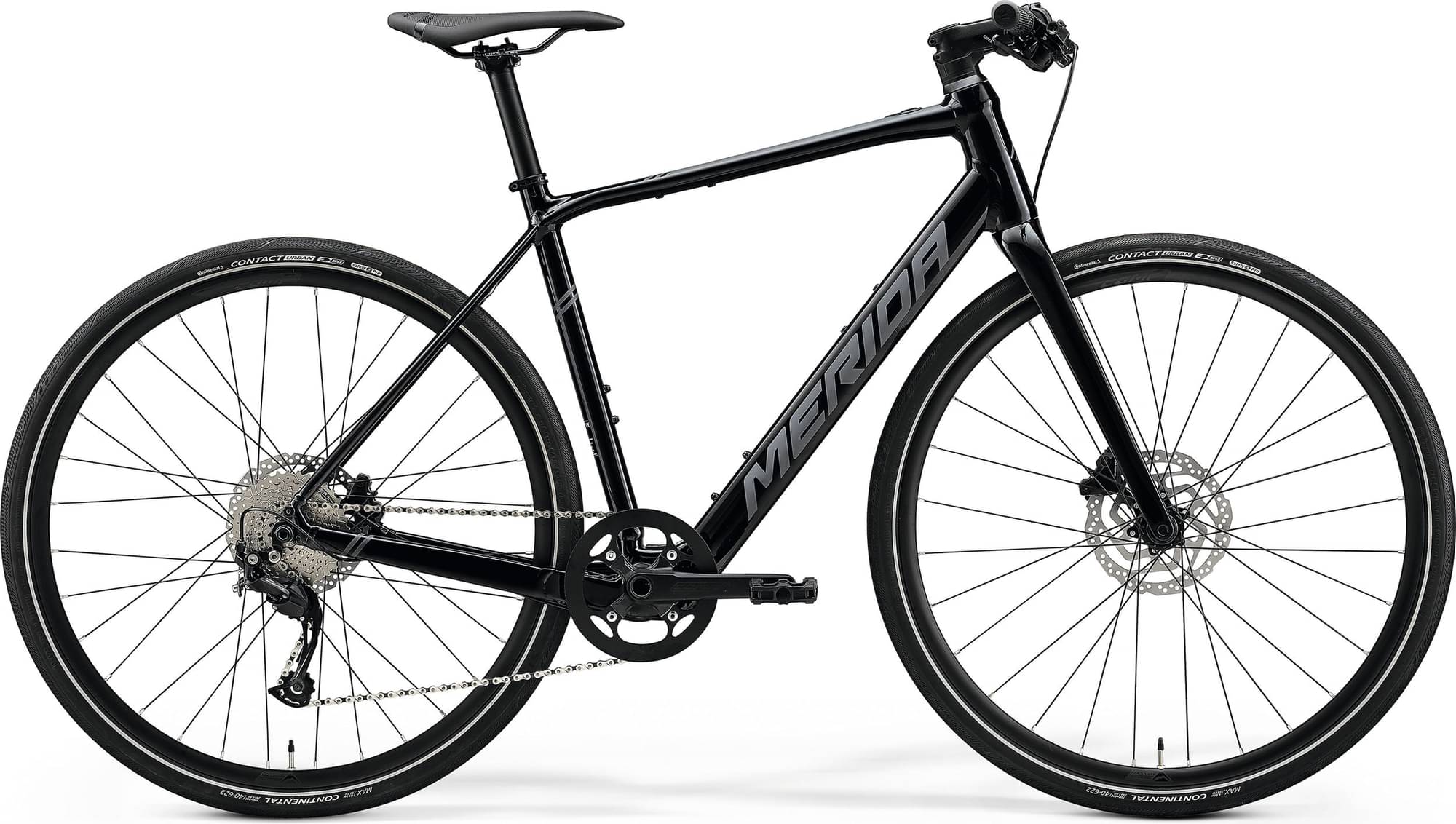

Merida eSPEEDER 200 2022
2022 E-bike
Estimate price |
3,479$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Alivio -
Suspension Rigid -
Motor MAHLE 40Nm hub-drive -
Battery Mahle B1-D, 250Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPEEDER LITE, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard, MUK 40 Hanger
Suspension Fork
MERIDA SPEEDER CF, MDF09, material: carbon, 700x40C w/ fender max wheelsize
Drivetrain
Rear Derailleur
Shimano Alivio, SGS
Shift Levers
Shimano Alivio
Cassette
Shimano CS-HG201, 11-36 teeth, 9 speed
Crank
MERIDA COMP TK, 42 teeth, 165 mm-XS, 170 mm-S/M/L/XL
Bottom Bracket
EB2401 BSA 68mm
Chain
KMC e9S
Wheels
Front Hub
VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock
Rear Hub
VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock
Rims
MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Urban, 700Cx40, wire
Brakes
Brakes
Shimano MT-200 / UR300, 2 piston
Disk Rotors
Shimano RT10 / Shimano RT26, 180 mm
Cockpit
Stem
MERIDA EXPERT IR, material: aluminium, 31.8mm diameter, 5° stem angle, 80 mm- XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
Handlebar
MERIDA EXPERT CC, material: aluminium, 620mm width, Flat
Headset
VP MH-P16
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9mm diameter, 0mm setback
Motor & Battery
Motor
Mahle X35+ Hub Engine, 40Nm
Battery
Mahle B1-D, 250Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.51 mm | 1.5 mm |
| Front Center | 623 mm | 634 mm | 645 mm |
| Rake | 46 mm | 45 mm | 45 mm |
| Trail | 78 mm | 76 mm | 73 mm |
| Stack | 586 mm | 602 mm | 618 mm |
| Reach | 389 mm | 400 mm | 411 mm |
| Top Tube Length | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 160 mm | 175 mm | 190 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1049 mm | 1060 mm | 1071 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 772 mm | 790 mm | 809 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
eSPEEDER 200 is a Merida E Espeeder model. There are 6 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Merida eSPEEDER 200 2022 is the cheapest e-bike model and costs 3163$. Merida eSPEEDER 400 EQ 2022 is the most expensive one and costs 3467$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness e-bikes average price
According to our math, the average price for a trustworthy Fitness e-bike is 2351$. However, this doesn’t mean that if you spend less money on a Fitness e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 3163$. In conclusion, this e-bike price is 34.54% higher than the price of the average Fitness e-bike.
eSPEEDER 200 components
Fork material
eSPEEDER 200 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the eSPEEDER 200 e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The eSPEEDER 200 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Merida eSPEEDER 200 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
