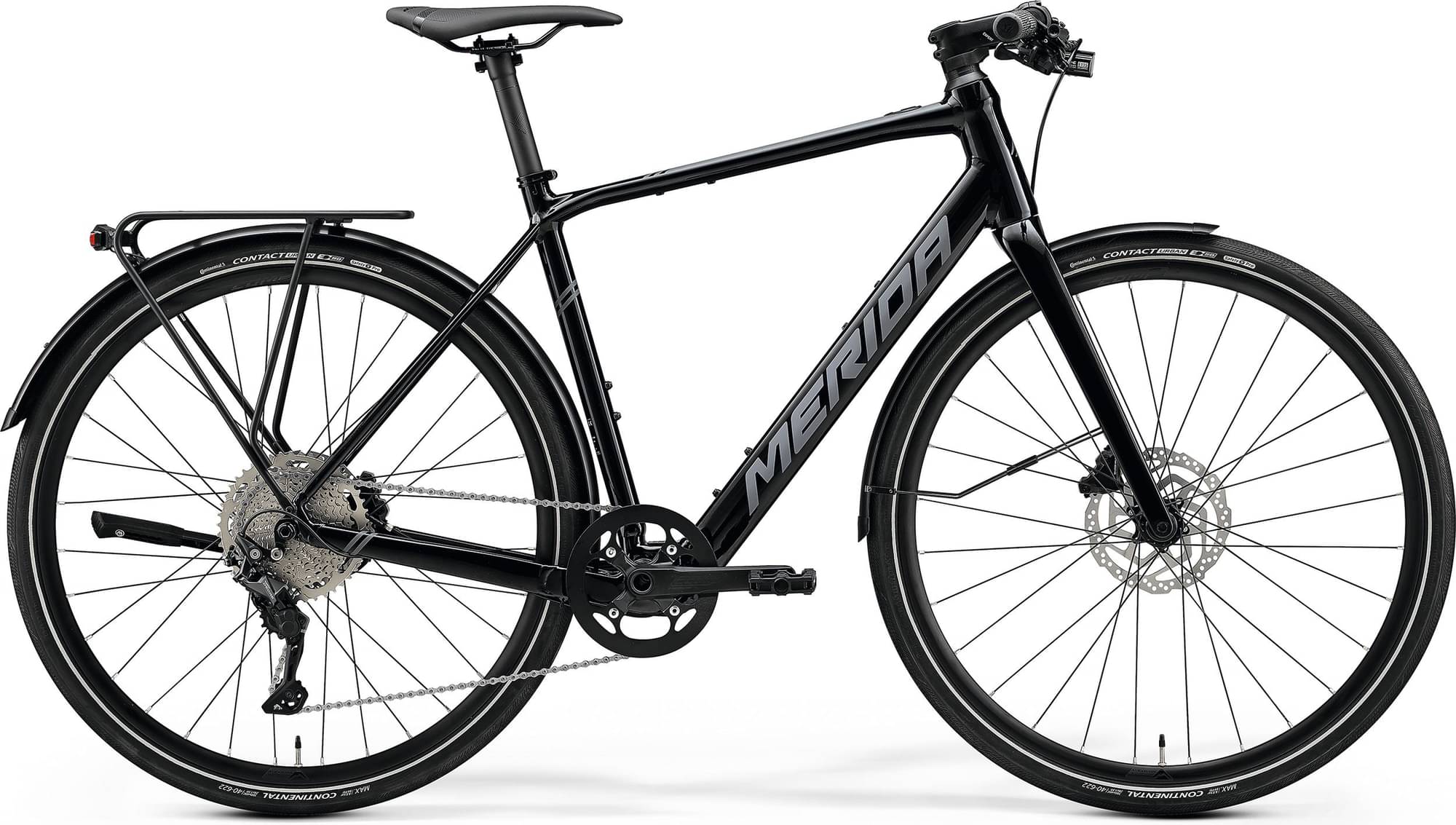

Merida eSPEEDER 400 EQ 2022
2022 E-bike
Estimate price |
3,814$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Deore -
Suspension Rigid -
Motor MAHLE 40Nm hub-drive -
Battery Mahle B1-D, 250Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPEEDER LITE, material: aluminium, 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize, 100x9/135x9mm axle standard, BSA bottom bracket standard, MUK 40 Hanger
Suspension Fork
MERIDA SPEEDER CF, MDF09, material: carbon, 700x40C w/ fender max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5120, SGS
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100, 11-46 teeth, 10 speed
Crank
MERIDA COMP TK, 42 teeth, 165 mm-XS, 170 mm-S/M/L/XL
Bottom Bracket
EB2401 BSA 68mm
Chain
KMC e10s
Wheels
Front Hub
VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock
Rear Hub
VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock
Rims
MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Urban, 700Cx40, wire
Brakes
Brakes
Shimano MT-200 / UR300, 2 piston
Disk Rotors
Shimano RT10 / Shimano RT26, 180 mm
Cockpit
Stem
MERIDA EXPERT IR, material: aluminium, 31.8mm diameter, 5° stem angle, 80 mm- XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
Handlebar
MERIDA EXPERT CC, material: aluminium, 620mm width, Flat
Headset
VP MH-P16
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT CC, material: carbon, 30.9mm diameter, 0mm setback
Motor & Battery
Motor
Mahle X35+ Hub Engine, 40Nm
Battery
Mahle B1-D, 250Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.51 mm | 1.51 mm | 1.51 mm | 1.51 mm |
| Front Center | 611 mm | 623 mm | 634 mm | 645 mm | 654 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 82 mm | 78 mm | 76 mm | 73 mm | 69 mm |
| Stack | 567 mm | 583 mm | 599 mm | 615 mm | 631 mm |
| Reach | 376 mm | 386 mm | 397 mm | 408 mm | 418 mm |
| Top Tube Length | 527 mm | 542 mm | 557 mm | 572 mm | 587 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm | 530 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° | 71.5 ° |
| Head Tube Length | 145 mm | 160 mm | 175 mm | 190 mm | 205 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1034 mm | 1046 mm | 1057 mm | 1068 mm | 1078 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 750 mm | 769 mm | 787 mm | 806 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
eSPEEDER 400 EQ is part of the Merida E Espeeder model. Merida released 6 e-bikes variations of this model so far. You can easily view all of the Merida E Espeeder e-bikes models from 2022, here.
Model range prices
Merida eSPEEDER 200 2022 is the cheapest e-bike model and costs 3163$. Merida eSPEEDER 400 EQ 2022 is the most expensive one and costs 3467$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Fitness e-bikes average price
If you want an acceptable Fitness e-bike you should know that the average price is 2351$. However, you could also get a good Fitness e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3467$. Comparing the average cost of a Fitness e-bike to this one, you will see that eSPEEDER 400 EQ price is 47.47% more expensive.
Overview of components
Fork material
eSPEEDER 400 EQ has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the eSPEEDER 400 EQ e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
