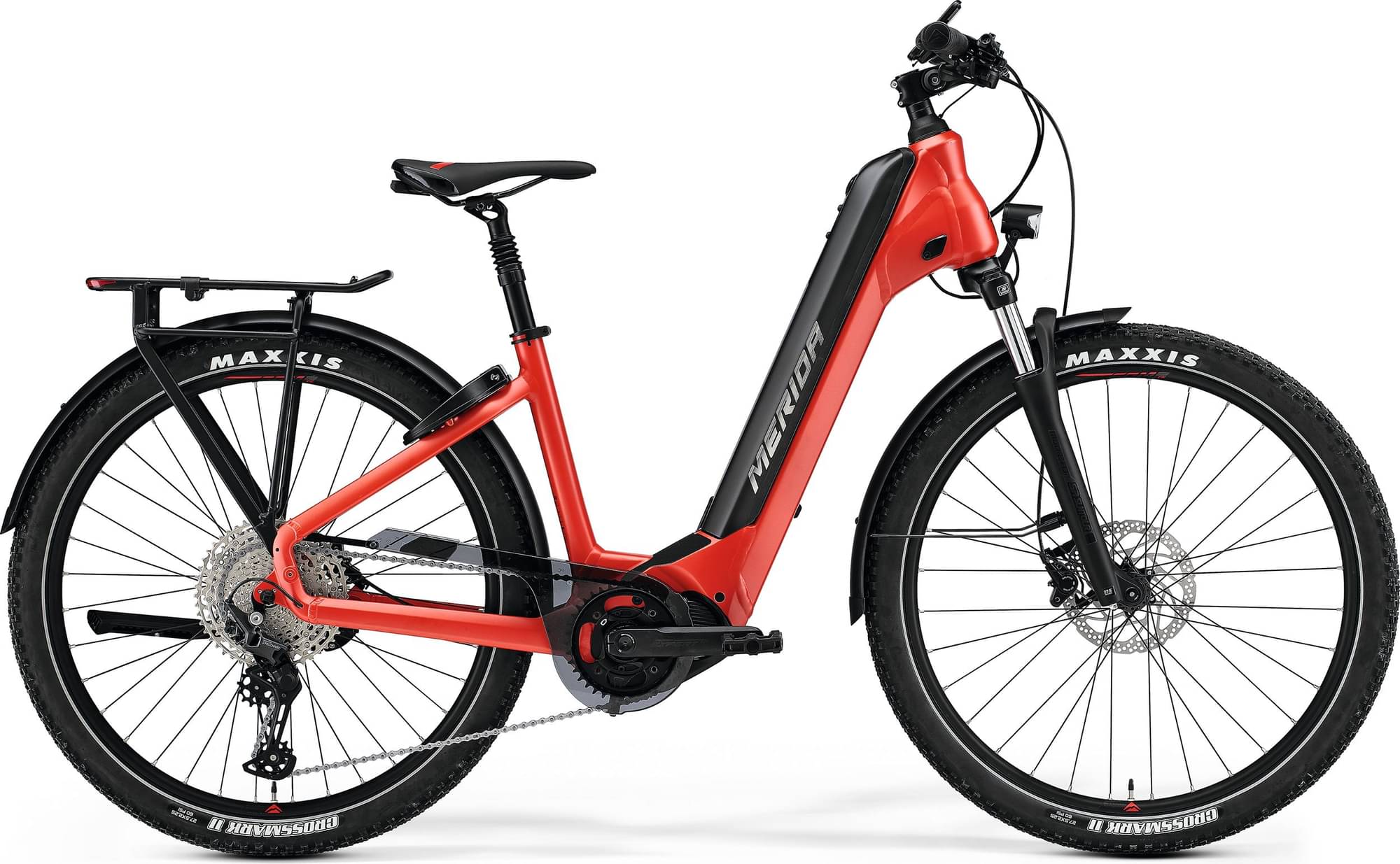

Merida eSPRESSO CC 600 EQ 2021
2021 E-bike
Estimate price |
4,110$
Weight | 27.71 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano E8036, 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CC LITE II, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal, max. 630 Wh
Suspension Fork
Suntour MOBIE A32 DS, Coil, 75mm suspension travel, 27,5x2,4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5100, SGS
Shift Levers
Shimano Deore M5100
Cassette
Shimano M5100, 11-51 teeth, 11 speed
Crank
Samox NWP203, 38 teeth, MERIDA EXPERT TK
Bottom Bracket
BSA, threaded
Chain
KMC e11S EPT
Chain Guide
Sunnywheel SW-CG-173A
Wheels
Front Hub
Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano Deore, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano MT402-3A, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA CAP w/ wire gateway
Seat
Saddle
MERIDA EXPERT TK, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036, 630Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.66 mm | 1.6 mm | 1.56 mm | 1.52 mm |
| Front Center | 651 mm | 667 mm | 687 mm | 708 mm | 727 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 44 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm | 73 mm |
| Stack | 653 mm | 658 mm | 663 mm | 672 mm | 682 mm |
| Reach | 382 mm | 396 mm | 414 mm | 432 mm | 449 mm |
| Top Tube Length | 577 mm | 592 mm | 612 mm | 632 mm | 652 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1110 mm | 1126 mm | 1146 mm | 1167 mm | 1187 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 400 mm | 400 mm | 399 mm | 399 mm | 398 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
eSPRESSO CC 600 EQ completes the Merida E Espresso model. There are 185 e-bikes that carry this model name. Take a sneak peek at all Merida E Espresso e-bikes models from 2021, by clicking here.
Model range prices
Merida eSPRESSO L 300 SE EQ 504Wh 2021 is the most affordable e-bike of this model and has a price of 2483$. On the other hand, Merida eSPRESSO CITY 700 EQ 2021, is the most expensive and costs 4197$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3693$. Comparing the average cost of a Hybrid e-bike to this one, you will see that eSPRESSO CC 600 EQ price is 48.91% more expensive.
Average weight for Hybrid e-bikes
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
eSPRESSO CC 600 EQ weighs 27.71 kg (61.09 lbs) and is much heavier than the average. To sum up, it’s 16.48% heavier than the average weight of Hybrid e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
As for the wheels, Merida eSPRESSO CC 600 EQ 2021, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
