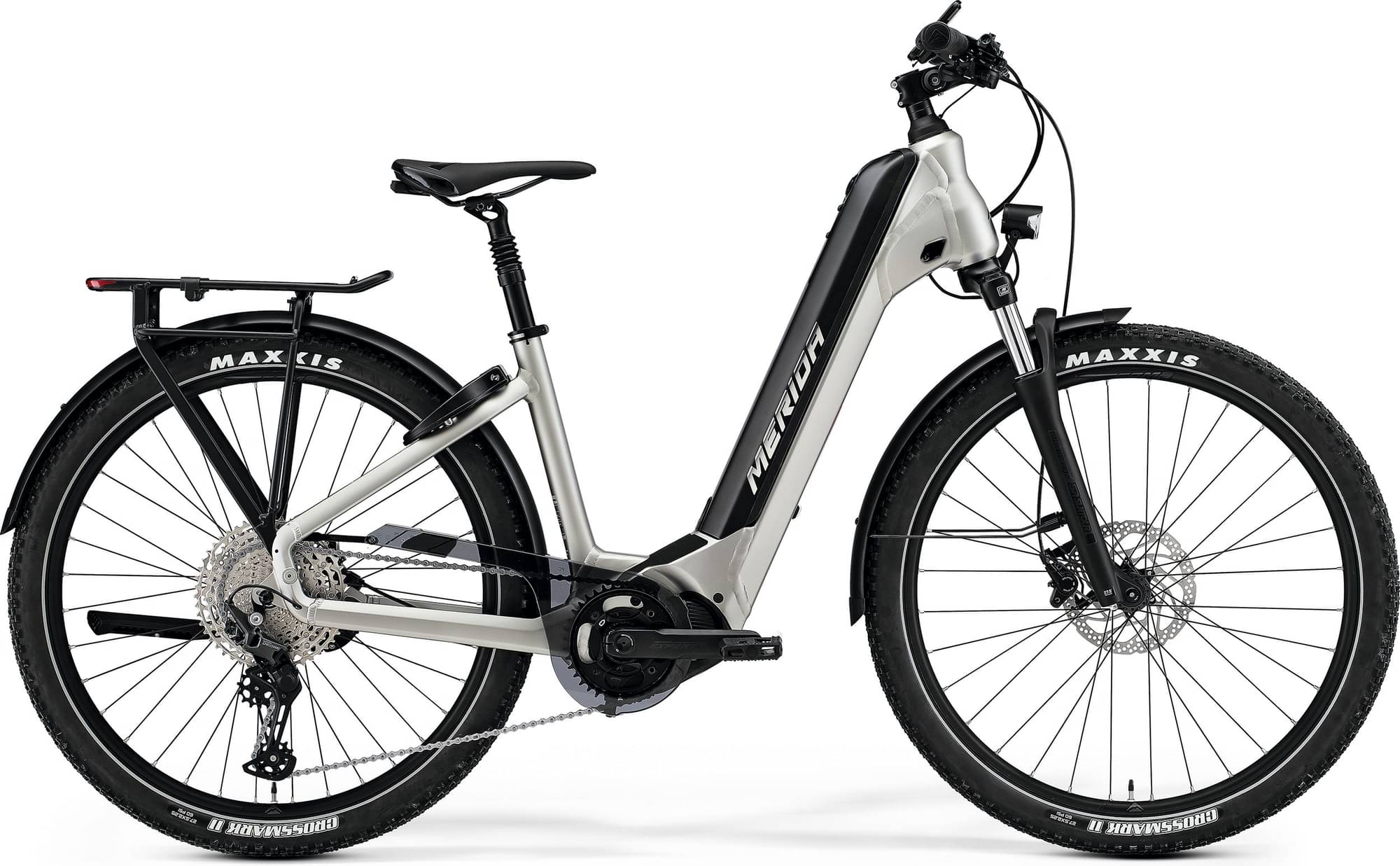

Merida eSPRESSO CC 675 EQ 2023
2023 E-bike
Estimate price |
5,353$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Simplo Internal Battery, 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CC LITE II, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, MUK 5 Hanger
Suspension Fork
SR Suntour Mobie A32, Coil, 75mm suspension travel, lockout, 27,5x2,4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5100, SGS
Shift Levers
Shimano Deore M5100
Cassette
Shimano M5100, 11-51 teeth, 11 speed
Crank
Samox NWP203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e11S EPT
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Front: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line, Rear: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano MT402-3A, 2 piston
Cockpit
Stem
MERIDA EXPERT CT, material: aluminium, 31.8mm diameter, adjustable, 90 mm- XS/S/M, 110 mm- L/XL
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 8152
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Simplo Internal Battery, 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG |
|---|---|
| Stack Reach Ratio | 1.56 mm |
| Front Center | 708 mm |
| Rake | 45 mm |
| Trail | 72 mm |
| Stack | 669 mm |
| Reach | 429 mm |
| Top Tube Length | 629 mm |
| Seat Tube Angle | 73.5 ° |
| Seat Tube Length | 530 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 190 mm |
| Chainstay Length | 464 mm |
| Wheelbase | 1164 mm |
| Bottom Bracket Drop | 65 mm |
| Standover Height | 396 mm |
| Wheels | 650 |
| Rider Min Height | 120 cm |
About this model
eSPRESSO CC 675 EQ is part of the Merida E Espresso model. Merida released 185 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Merida eSPRESSO URBAN 100 EQ 2023 is the most economical model, with a starting price of 2101$. Merida eSPRESSO CC 675 EQ 2023 on the other hand costs 4866$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4866$. Comparing the average cost of a Hybrid e-bike to this one, you will see that eSPRESSO CC 675 EQ price is 96.21% more expensive.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the eSPRESSO CC 675 EQ e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eSPRESSO CC 675 EQ is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
