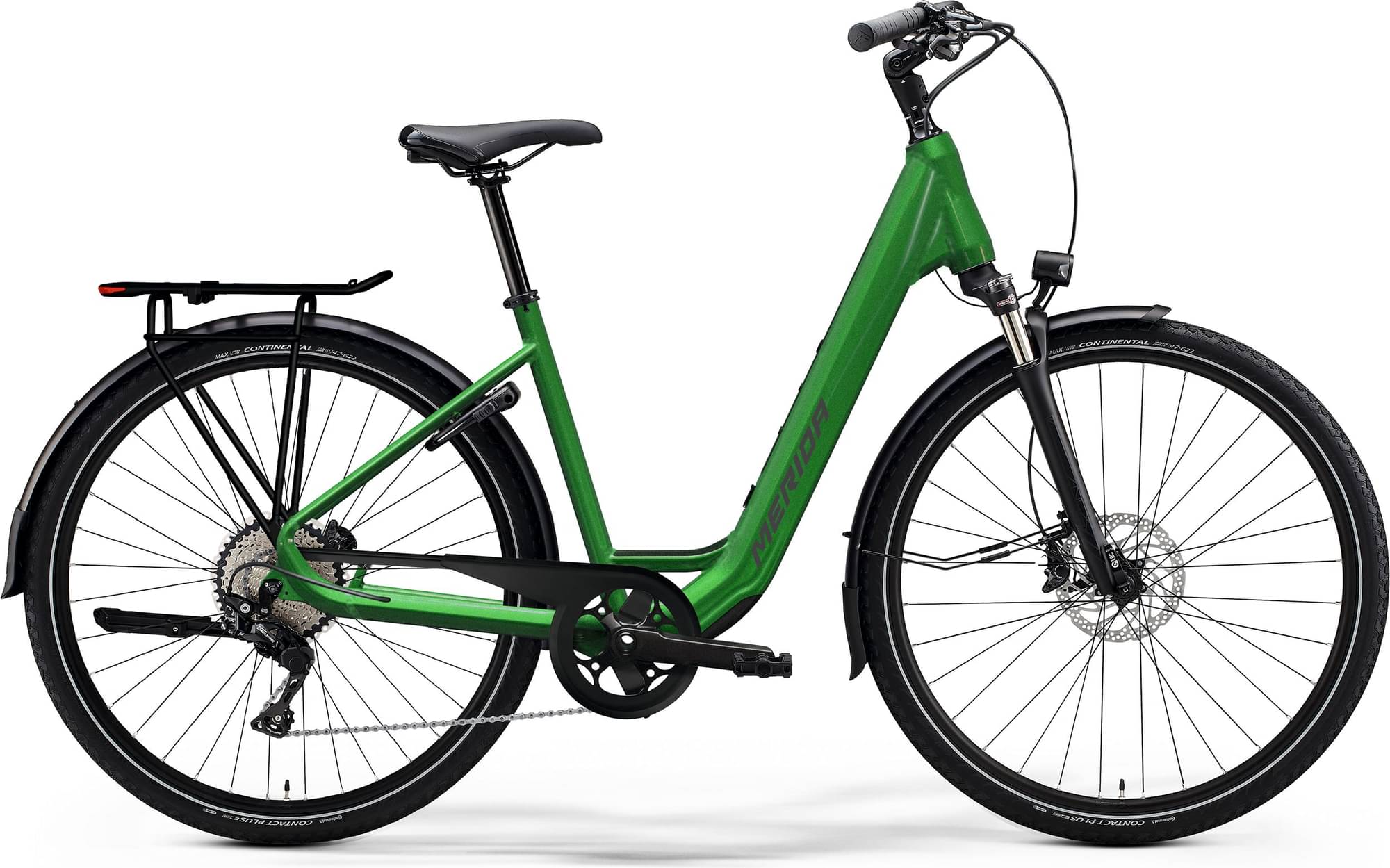

Merida eSPRESSO URBAN 100 EQ 2023
2023 E-bike
Estimate price |
2,338$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor MAHLE 40Nm hub-drive -
Battery Mahle B1-D, 250Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO URBAN LITE
Suspension Fork
SR Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Rear Derailleur
Shimano Alivio, SGS
Shift Levers
Shimano Alivio
Cassette
Shimano CS-HG201, 11-36 teeth, 9 speed
Crank
MERIDA COMP TK, 42 teeth, XS-165mm, S/M/L-170mm, XL-175mm
Bottom Bracket
EB2401 BSA 68mm
Chain
KMC e9S
Chain Guide
Custom MERIDA Chainguard
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Urban, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT200, 2 piston
Brake Levers
attached to brake
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 640mm width, 35mm rise
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9mm diameter, 0mm setback
Motor & Battery
Motor
Mahle X35+ Hub Engine, 40Nm
Battery
Mahle B1-D, 250Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.76 mm | 1.71 mm | 1.67 mm | 1.64 mm | 1.62 mm |
| Front Center | 650 | 665 mm | 675 mm | 691 mm | 706 mm |
| Rake | 44 mm | 43 mm | 44 mm | 44 mm | 44 mm |
| Trail | 87 mm | 88 mm | 84 mm | 84 mm | 84 mm |
| Stack | 653 mm | 658 mm | 665 mm | 674 mm | 684 mm |
| Reach | 371 mm | 385 mm | 398 mm | 410 mm | 422 mm |
| Top Tube Length | 572 mm | 587 mm | 602 mm | 617 mm | 632 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1108 mm | 1123 mm | 1133 mm | 1149 mm | 1164 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
eSPRESSO URBAN 100 EQ is a Merida E Espresso model. Merida launched 185 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Merida eSPRESSO URBAN 100 EQ 2023 has a starting price of 2101$. Merida eSPRESSO CC 675 EQ 2023 on the other hand is the most expensive at 4866$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 2101$. If we compare this with the average Hybrid e-bike cost we notice that the price is 18.04% lower.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the eSPRESSO URBAN 100 EQ model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eSPRESSO URBAN 100 EQ is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
