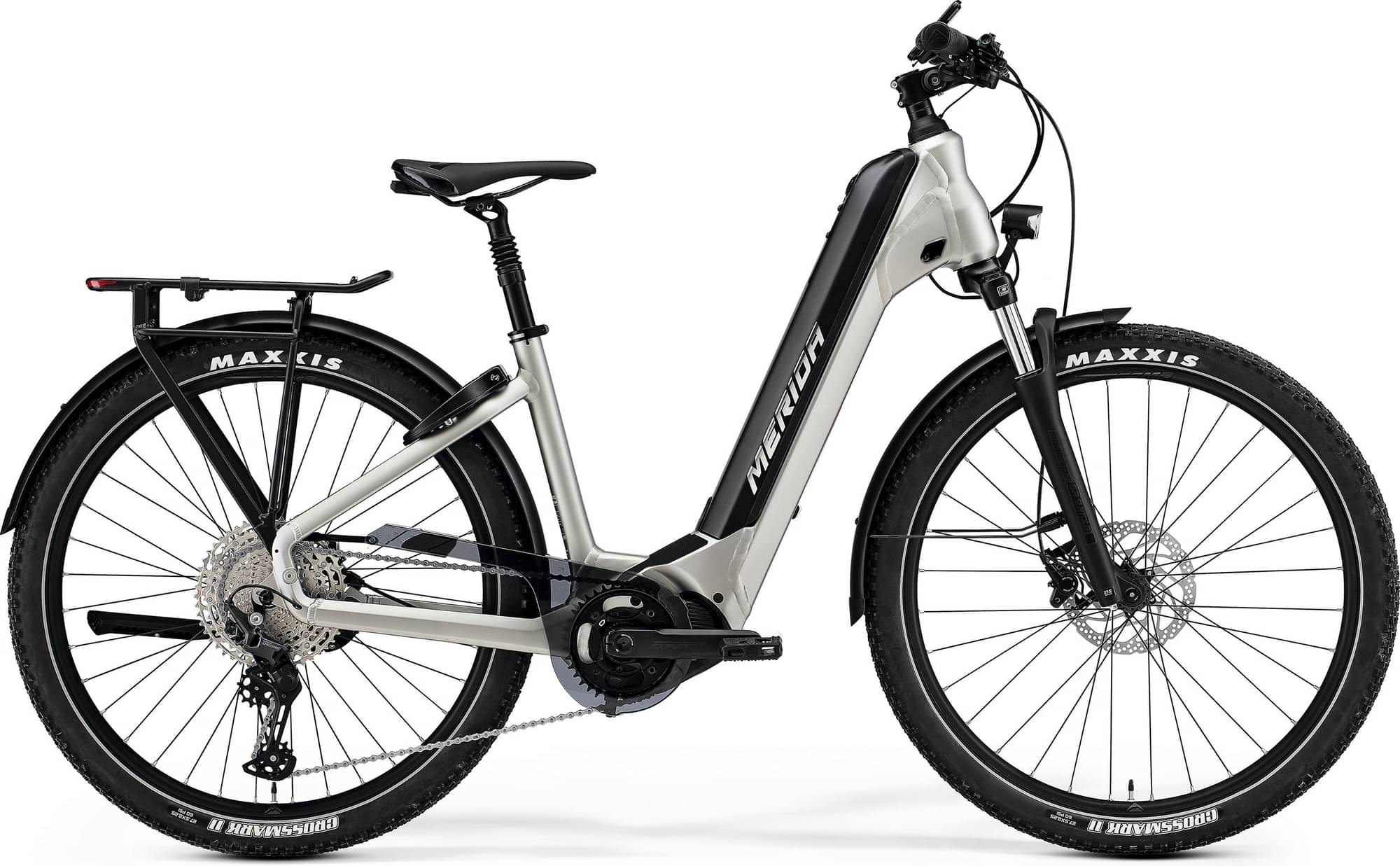

Merida eSPRESSO CC 675 EQ (EP6) 2023
2023 E-bike
Estimate price |
5,353$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Trendpower Internal Battery, 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CC LITE II, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal
Suspension Fork
Suntour MOBIE A32, Coil, 75mm suspension travel, lockout, 27,5x2,4" max wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5100, SGS
Shift Levers
Shimano Deore M5100
Cassette
Shimano M5100, 11-51 teeth, 11 speed
Crank
Samox NWP203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e11S EPT
Pedals
VP VPE-891
Wheels
Front Hub
Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Tires
Front: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line, Rear: Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano MT410-3A, 2 piston
Cockpit
Stem
MERIDA EXPERT CT, material: aluminium, 31.8mm diameter, adjustable, 90 mm- XS/S/M/L/XL
Handlebar
MERIDA EXPERT, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA-8251
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
JD-SP79, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Trendpower Internal Battery, 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM |
|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.66 mm |
| Front Center | 651 mm | 667 mm |
| Rake | 45 mm | 45 mm |
| Trail | 72 mm | 72 mm |
| Stack | 653 mm | 658 mm |
| Reach | 382 mm | 396 mm |
| Top Tube Length | 577 mm | 592 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm |
| Head Tube Angle | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm |
| Chainstay Length | 467 mm | 467 mm |
| Wheelbase | 1110 mm | 1126 mm |
| Bottom Bracket Drop | 65 mm | 65 mm |
| Standover Height | 400 mm | 400 mm |
| Wheels | 650 | 650 |
About this model
eSPRESSO CC 675 EQ (EP6) is part of the Merida E Espresso model. There are 204 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Merida eSPRESSO URBAN 100 EQ 2023 is the most economical model, with a starting price of 2118$. Merida eSPRESSO CC 675 EQ (EP6) 2023 on the other hand costs 4871$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Merida eSPRESSO CC 675 EQ (EP6) price was 4871$. If we compare this with the average Hybrid e-bike cost we notice that the price is 96.41% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The eSPRESSO CC 675 EQ (EP6) comes factory-installed with the Suntour MOBIE fork. This has a travel range of 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the eSPRESSO CC 675 EQ (EP6) model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
