Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Simplo Internal Battery, 750Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CC LITE II, material: aluminium, 27,5x2,25" max. wheelsize, 135x9mm axle standard, internal
Suspension Fork
SR Suntour Mobie A32 NLO, Coil, 75mm suspension travel, lockout, 27,5x2,4" max wheelsize
Drivetrain
Rear Derailleur
Shimano XT M8100, SGS
Shift Levers
Shimano XT
Cassette
Shimano M6100, 10-51 teeth, 12 speed
Crank
Samox NWP203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC e12T EPT
Chain Guide
Sunnywheel SW-CG-173A
Wheels
Front Hub
Shimano MT400 / Shimano MT500, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400 / Shimano MT500, 100x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Crossmark II, 27.5x2.25", wire, reflecting line
Brakes
Brakes
Shimano Deore T6000, 2 piston
Disk Rotors
Shimano RT30 / Shimano RTEM300, 180 mm
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 680mm width, 15mm rise
Headset
Acros Trekking
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Simplo Internal Battery, 750Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.66 mm | 1.6 mm | 1.56 mm | 1.52 mm |
| Front Center | 651 mm | 667 mm | 687 mm | 708 mm | 727 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 44 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm | 73 mm |
| Stack | 653 mm | 658 mm | 663 mm | 672 mm | 682 mm |
| Reach | 382 mm | 396 mm | 414 mm | 432 mm | 449 mm |
| Top Tube Length | 577 mm | 592 mm | 612 mm | 632 mm | 652 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1110 mm | 1126 mm | 1146 mm | 1167 mm | 1187 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 400 mm | 400 mm | 399 mm | 399 mm | 398 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

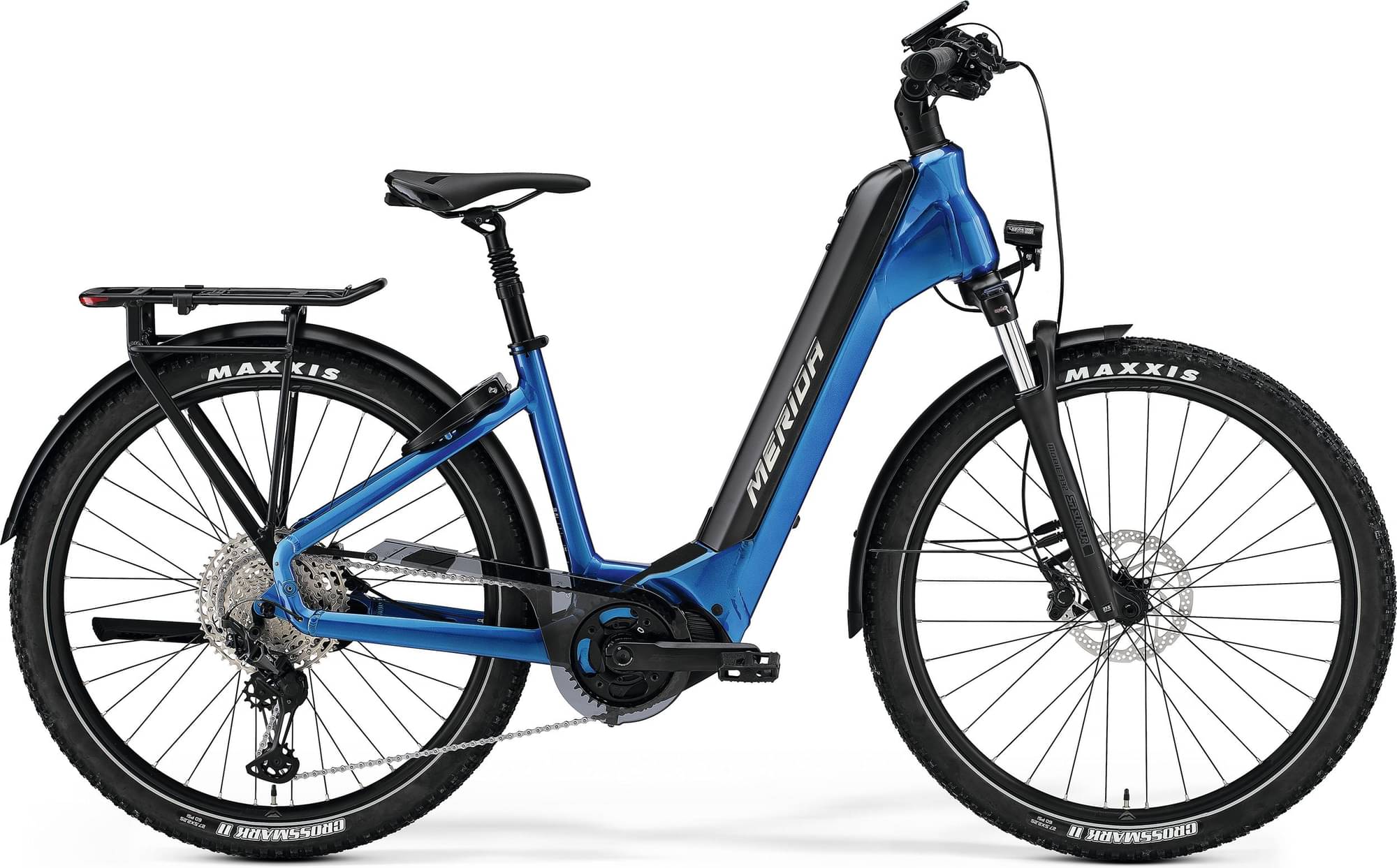

eSPRESSO CC XT-75 EDITION EQ completes the Merida E Espresso model. There are 185 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Merida eSPRESSO 300 SE EQ 2022 has a starting price of 2483$. Merida eSPRESSO CC 675 EQ 2022 on the other hand is the most expensive at 4866$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the eSPRESSO CC XT-75 EDITION EQ model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eSPRESSO CC XT-75 EDITION EQ is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
