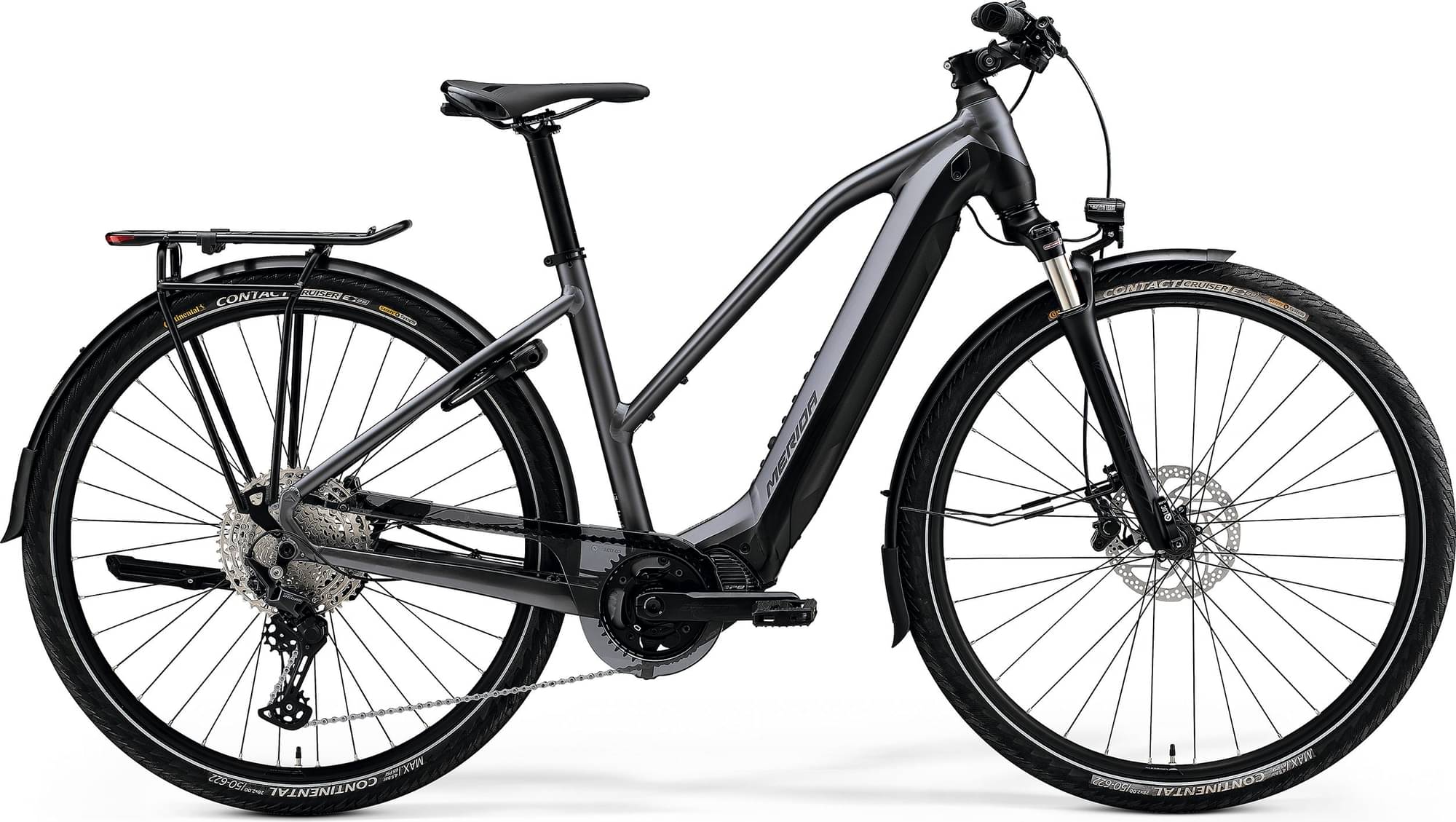

Merida eSPRESSO L EP8-EDITION EQ 2022
2022 E-bike
Estimate price |
4,465$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano E8036, 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO L LITE III, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12mm axle standard, intube
Suspension Fork
Suntour NCX LO, Air, 63mm suspension travel, Tapered, 700x50C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Deore M5100, SGS
Shift Levers
Shimano Deore M5100
Cassette
Shimano M5100, 11-51 teeth, 11 speed
Crank
Samox NWP203, 38 teeth, MERIDA EXPERT TK
Bottom Bracket
BSA, threaded
Chain
KMC e11S EPT
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-889
Wheels
Front Hub
Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano Deore, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano Deore T6000, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA-8155
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano EP8, 85Nm
Battery
Shimano E8036, 630Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.59 mm | 1.6 mm | 1.62 mm |
| Front Center | 677 mm | 676 mm | 687 mm | 696 mm |
| Rake | 44 mm | 44 mm | 44 mm | 43 mm |
| Trail | 87 mm | 84 mm | 84 mm | 81 mm |
| Stack | 636 mm | 645 mm | 659 mm | 680 mm |
| Reach | 405 mm | 406 mm | 412 mm | 420 mm |
| Top Tube Length | 576 mm | 586 mm | 596 mm | 616 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 70 ° |
| Head Tube Length | 133 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1141 mm | 1140 mm | 1151 mm | 1160 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 589 mm | 606 mm | 627 mm | 646 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
eSPRESSO L EP8-EDITION EQ is a Merida E Espresso model. Merida launched 185 e-bikes of this model so far. Take a sneak peek at all Merida E Espresso e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Merida eSPRESSO 300 SE EQ 2022 has a starting price of 2483$. Merida eSPRESSO CC 675 EQ 2022 on the other hand is the most expensive at 4866$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 4012$. If we compare this with the average Hybrid e-bike cost we notice that the price is 61.77% higher.
Overview of components
Fork
The fork installed on this bike is the Suntour NCX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on eSPRESSO L EP8-EDITION EQ are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eSPRESSO L EP8-EDITION EQ is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
