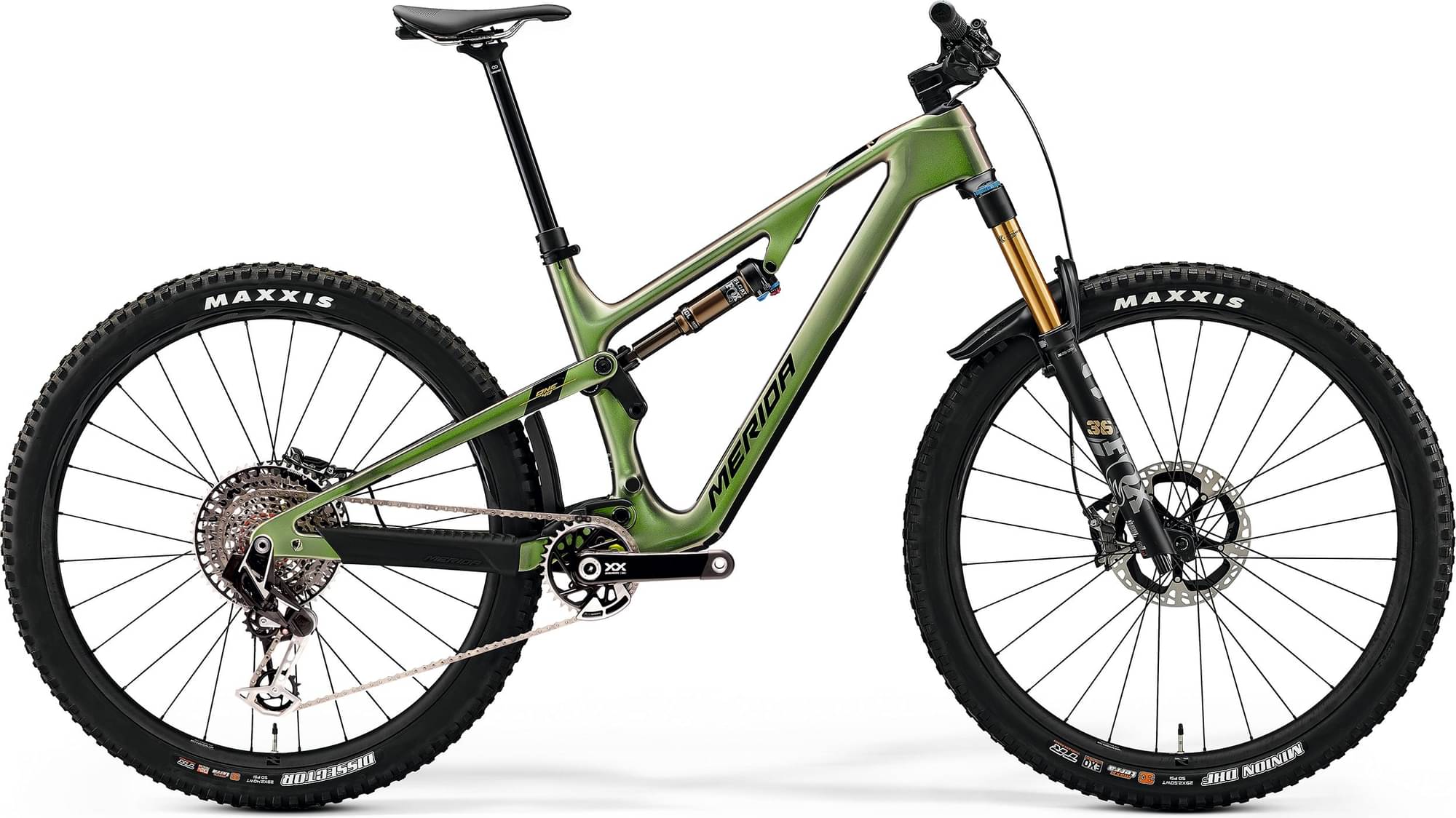

Merida ONE-FORTY 10K 2023
2023 Mountain
Estimate price |
8,151$
Weight | 14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 143mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, XT -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY CF4 III, 143mm suspension travel 29", material: carbon, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
FOX 36 Float Factory, Air, 150mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max. wheelsize
Rear Shock
FOX Float DPS Factory, adjustable low speed compression, plateform
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission AXS, wireless, T-Type
Shift Levers
Shimano SL -MT800-IL
Cassette
SRAM XX Eagle Transmission, 10-52 teeth, 12 speed
Crank
SRAM XX Eagle AXS, 32 teeth, 1 guard
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM XX Eagle Transmission, Flattop
Chain Guide
MERIDA EXPERT TR ISCG05
Wheels
Rims
Reynolds BLACKLABEL 329 Trail I9, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, Centerlock, SRAM XD, material: carbon, Tubeless ready (tubeless tape and valves included), Lifetime warranty
Tires
Maxxis Minion DHF, 29x2.5", fold, TR EXO 3C MaxxTera
Brakes
Brakes
Shimano XTR, 4 piston
Cockpit
Handlebar
MERIDA TEAM TR, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise
Headset
MERIDA 8151
Seat
Saddle
MERIDA EXPERT SL, V-mount, incl. MERIDA minitool
Seatpost
MERIDA TEAM TR, 34.9mm diameter, 10mm setback, 30-230mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Short | Mid | Long | XLong |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.27 mm | 1.21 mm | 1.18 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 769 mm | 797 mm | 830 mm | 863 mm |
| Rake | 44 mm | 45 mm | 44 mm | 45 mm |
| Trail | 126 mm | 125 mm | 126 mm | 125 mm |
| Stack | 600 mm | 600 mm | 609 mm | 622 mm |
| Reach | 446 mm | 473 mm | 502 mm | 528 mm |
| Top Tube Length | 552 mm | 579 mm | 611 mm | 642 mm |
| Seat Tube Angle | 80 ° | 80 ° | 80 ° | 80 ° |
| Seat Tube Length | 410 mm | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1197 mm | 1225 mm | 1258 mm | 1291 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 718 mm | 725 mm | 724 mm | 764 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
ONE-FORTY 10K completes the Merida One Forty model. There are 40 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Merida ONE-FORTY 400 2023 has a starting price of 2737$. Merida ONE-FORTY 10K 2023 on the other hand is the most expensive at 7323$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 7323$. Comparing the average cost of a Trail bike to this one, you will see that ONE-FORTY 10K price is 165.13% more expensive.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 14 kg (30.86 lbs), Merida bike is a bit heavier than average. In short, the average Trail bike weight is 7.86% lower than this one.
ONE-FORTY 10K components
Fork
The ONE-FORTY 10K comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Merida ONE-FORTY 10K bike has the FOX Float DPS Factory model installed, and has a travel of 143mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the ONE-FORTY 10K bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida ONE-FORTY 10K is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Merida ONE-FORTY 10K includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
