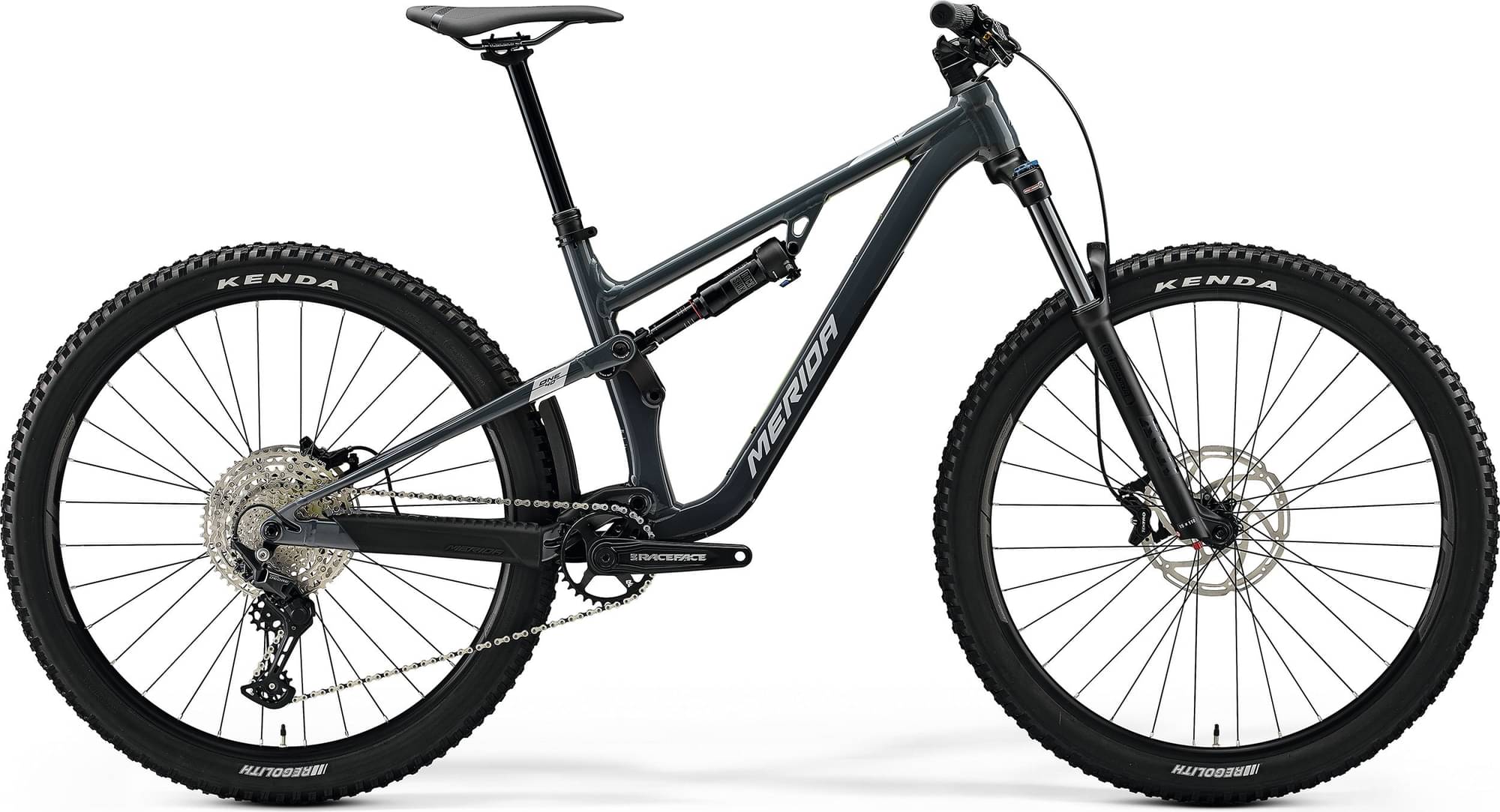

Merida ONE-FORTY 400 2023
2023 Mountain
Estimate price |
3,011$
Weight | 16.88 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 143mm -
Fork Suntour XCR Air
-
Groupset Deore, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ONE-FORTY LITE III, 143mm suspension travel 29", material: aluminium, 29x2.5" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour XCR34 LOR DS, Air, 140mm suspension travel, Tapered, 51mm fork offset, 29x2.4" max wheelsize
Rear Shock
Rock Shox Deluxe Select+, lockout
Drivetrain
Rear Derailleur
Shimano Deore M5100 Shadow+, SGS
Shift Levers
Shimano SL -MT500-L / Shimano Deore M5100
Cassette
Shimano Deore M5100, 11-51 teeth, 11 speed
Crank
Race Face Ride, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
Race Face BSA 68/73 – 24mm
Chain
KMC X11
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TR, 29mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Front: Kenda Regolith, 29x2.4", wire, Rear: Kenda Regolith, 29x2.4", wire
Brakes
Brakes
Tektro HD-M745, 4 piston
Cockpit
Stem
MERIDA EXPERT eTRII, material: aluminium, 35mm diameter, 0° stem angle, 50 mm
Handlebar
MERIDA TEAM TR, material: aluminium, 780mm width, XS/S 18mm rise, M/L/XL 30mm rise
Headset
MERIDA 8158
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M/L/XL: 200mm travel seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XShort | Short | Mid | Long | XLong |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.34 mm | 1.265 mm | 1.21 mm | 1.176 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 742 mm | 769 mm | 797 mm | 830 mm | 863 mm |
| Rake | 44 mm | 44 mm | 45 mm | 44 mm | 45 mm |
| Trail | 126 mm | 126 mm | 125 mm | 126 mm | 125 mm |
| Stack | 607 mm | 607 mm | 607 mm | 616 mm | 629 mm |
| Reach | 426 mm | 453 mm | 480 mm | 509 mm | 535 mm |
| Top Tube Length | 532 mm | 559 mm | 586 mm | 618 mm | 649 mm |
| Seat Tube Angle | 80 ° | 80 ° | 80 ° | 80 ° | 80 ° |
| Seat Tube Length | 400 mm | 410 mm | 425 mm | 445 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 95 mm | 105 mm | 120 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1177 mm | 1204 mm | 1232 mm | 1265 mm | 1298 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 730 mm | 735 mm | 738 mm | 735 mm | 730 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
ONE-FORTY 400 belongs to the Merida One Forty model. There are 40 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Merida ONE-FORTY 400 2023 is the most economical model, with a starting price of 2737$. Merida ONE-FORTY 10K 2023 on the other hand costs 7323$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 2737$. Doing a quick comparison, we notice that ONE-FORTY 400 price is 0.91% smaller than the average cost of a Trail bike.
Trail bikes average weight
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 16.88 kg (37.21 lbs), the ONE-FORTY 400 model is much heavier than average. In short, the average Trail bike weight is 30.05% lower than this one.
Overview of components
Fork
The ONE-FORTY 400 comes factory-installed with the Suntour XCR Air fork. This has a travel range of 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the Rock Shox Deluxe Select+ model, with a travel of 143mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on ONE-FORTY 400 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ONE-FORTY 400 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Merida ONE-FORTY 400 comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
