Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5
Suspension Fork
SCULTURA CF3 Disc, material: carbon, 700x30C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Ultegra, GS
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra Disc
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano RS510, 50-34 teeth, 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
KMC X11
Wheels
Front Hub
VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock
Rear Hub
VP CLK270R, 142x12mm width rear hub, 28 spoke holes, Centerlock
Rims
MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Double Butted Black stainless
Tires
Continental Ultra Sport III, 700x28C, fold
Brakes
Brakes
Shimano Ultegra, Hydraulic Disc
Brake Levers
Shimano Ultegra
Disk Rotors
Shimano RT54, 160mm
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL)
Headset
FSA ACR
Seat
Saddle
MERIDA EXPERT SL, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.39 mm | 1.41 mm | 1.43 mm | 1.45 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 587 mm | 584 mm | 590 mm | 591 mm | 601 mm | 611 mm |
| Rake | 45 mm | 46 mm | 44 mm | 45 mm | 46 mm | 45 mm |
| Trail | 71 mm | 61 mm | 60 mm | 53 mm | 52 mm | 50 mm |
| Stack | 518 mm | 530 mm | 543 mm | 558 mm | 572 mm | 594 mm |
| Reach | 378 mm | 384 mm | 391 mm | 396 mm | 401 mm | 410 mm |
| Top Tube Length | 521 mm | 536 mm | 546 mm | 561 mm | 576 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 458 mm | 481 mm | 501 mm | 521 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 112 mm | 128 mm | 140 mm | 155 mm | 176 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 986 mm | 983 mm | 990 mm | 991 mm | 1001 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 722 mm | 746 mm | 766 mm | 783 mm | 801 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

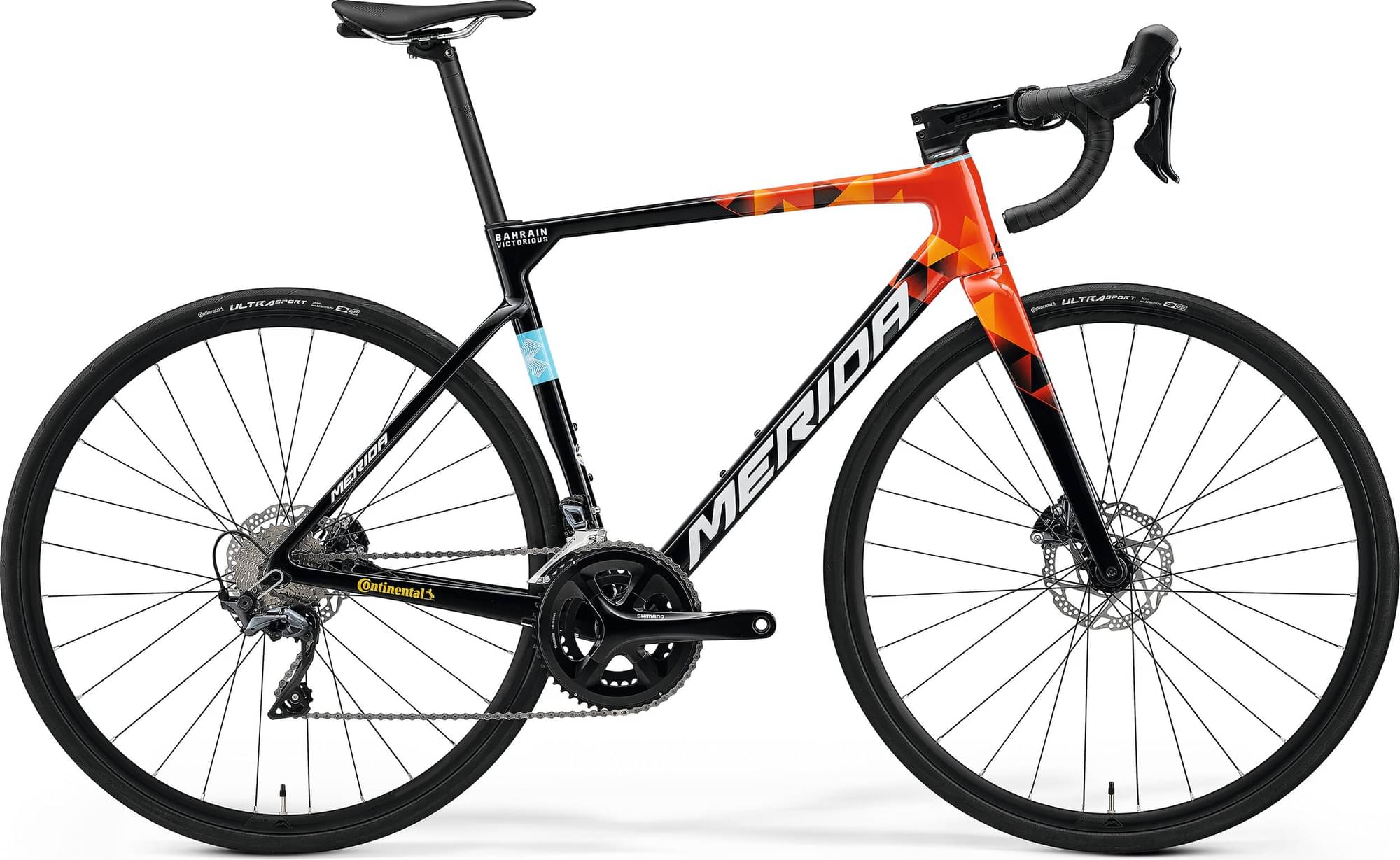

Model Overview
SCULTURA 5000 completes the Merida Scultura model. Merida released 214 bikes variations of this model so far. Take a sneak peek at all Merida Scultura bikes models from 2022, by clicking here.
Model range prices
Merida SCULTURA RIM 100 2022 is the cheapest bike model and costs 1077$. Merida SCULTURA 10K 2022 is the most expensive one and costs 12164$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race bikes average price
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Merida SCULTURA 5000 price was 2356$. If we compare this with the average Race bike cost we notice that the price is 42.19% smaller.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the SCULTURA 5000 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SCULTURA 5000 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
