Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF3 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5
Suspension Fork
SCULTURA CF3 Disc, material: carbon, 700x30C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano Ultegra Disc Di2
Cassette
Shimano CS-R8100, 11-30 teeth, 12 speed
Crank
Shimano Ultegra, 52-36 teeth, 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
Shimano CN-M6100-12
Wheels
Rims
Reynolds AR 41 DB, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 41mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves included)
Tires
Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Brakes
Brakes
Shimano Ultegra, Hydraulic Disc
Brake Levers
Shimano Ultegra
Disk Rotors
Shimano MT800, 160mm
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL)
Headset
FSA ACR
Seat
Saddle
Prologo Scratch M5
Seatpost
MERIDA TEAM SL, 27.2mm diameter, 15mm setback, Carbon, S-Flex
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.39 mm | 1.41 mm | 1.43 mm | 1.45 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 587 mm | 584 mm | 590 mm | 591 mm | 601 mm | 611 mm |
| Rake | 45 mm | 46 mm | 44 mm | 45 mm | 46 mm | 45 mm |
| Trail | 71 mm | 61 mm | 60 mm | 53 mm | 52 mm | 50 mm |
| Stack | 518 mm | 530 mm | 543 mm | 558 mm | 572 mm | 594 mm |
| Reach | 378 mm | 384 mm | 391 mm | 396 mm | 401 mm | 410 mm |
| Top Tube Length | 521 mm | 536 mm | 546 mm | 561 mm | 576 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 458 mm | 481 mm | 501 mm | 521 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 112 mm | 128 mm | 140 mm | 155 mm | 176 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 986 mm | 983 mm | 990 mm | 991 mm | 1001 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 722 mm | 746 mm | 766 mm | 783 mm | 801 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

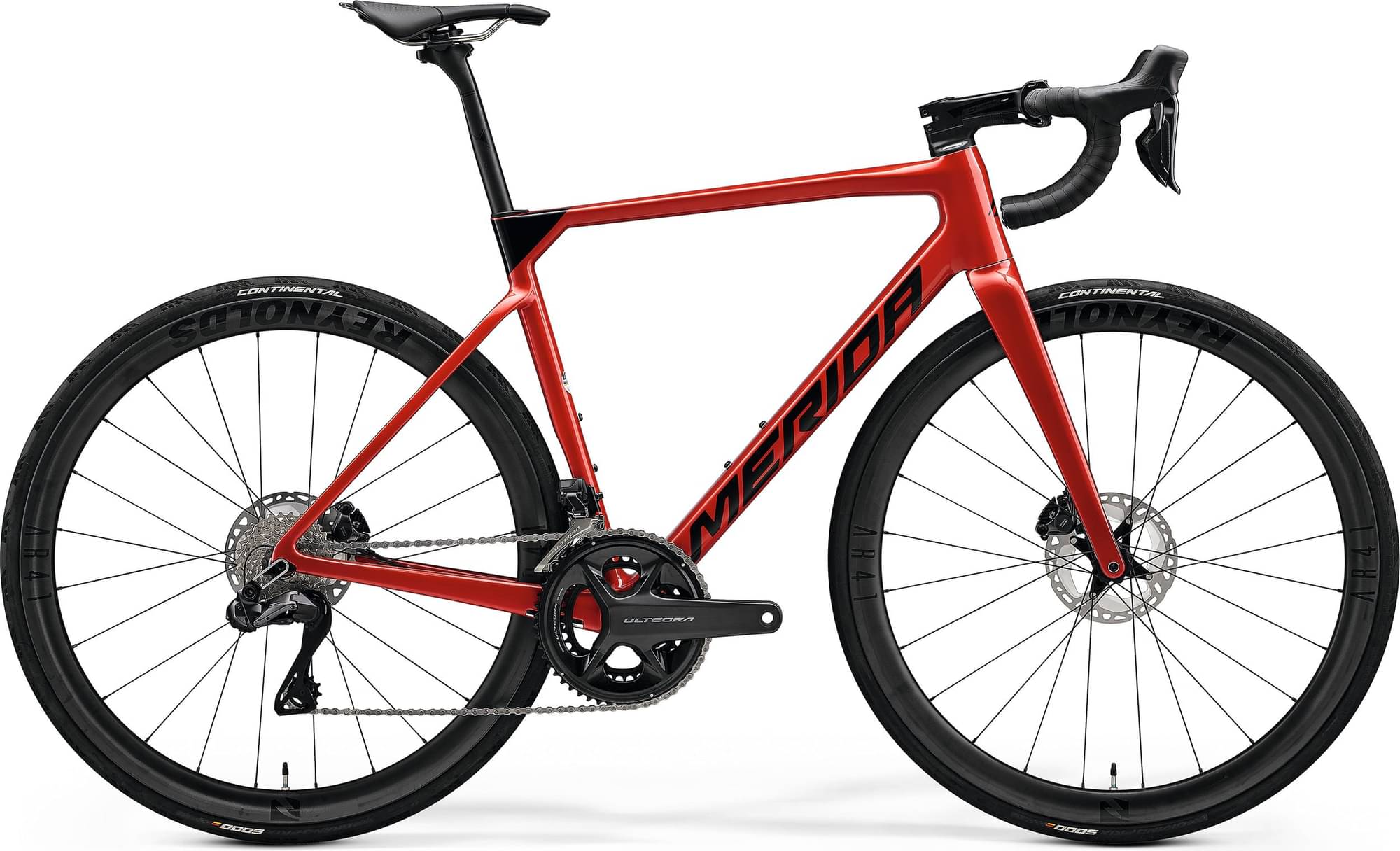

SCULTURA 8000 completes the Merida Scultura model. Merida released 214 bikes variations of this model so far. You can easily view all of the Merida Scultura bikes models from 2022, here.
Model range prices
Merida SCULTURA RIM 100 2022 is the most affordable bike of this model and has a price of 1077$. On the other hand, Merida SCULTURA 10K 2022, is the most expensive and costs 12164$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4266$. Comparing the average cost of a Race bike to this one, you will see that SCULTURA 8000 price is 27.34% more expensive.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on SCULTURA 8000 are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCULTURA 8000 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
