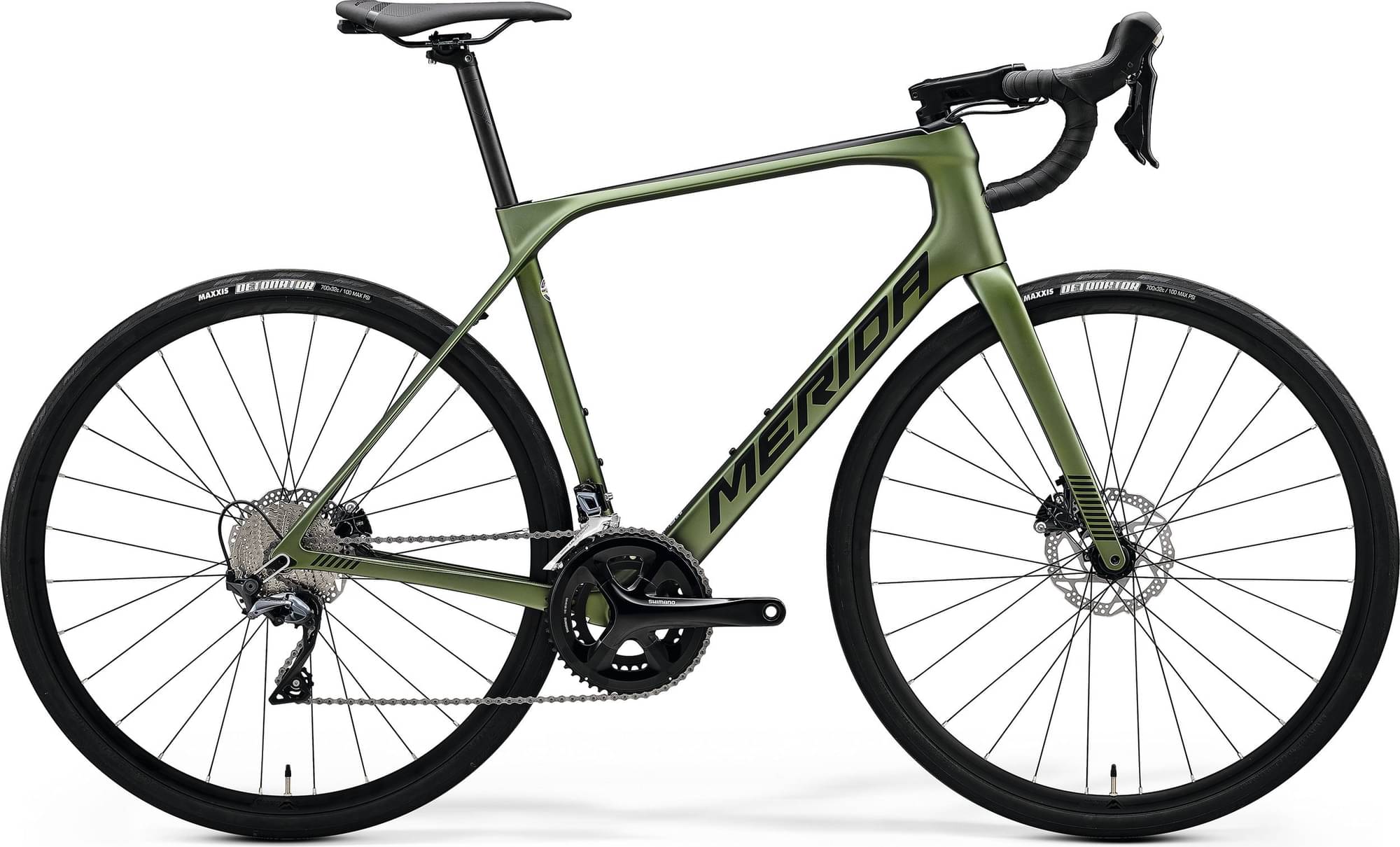

Merida SCULTURA ENDURANCE 5000 2022
2022 Road
Estimate price |
2,551$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
SCULTURA ENDURANCE CF3 Disc, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Ultegra, GS
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra Disc
Cassette
Shimano CS-HG700, 11-34 teeth, 11 speed
Crank
Shimano RS510, 50-34 teeth, 165mm-XXS, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock
Rear Hub
VP CLK270R, 142x12mm width rear hub, 28 spoke holes, Centerlock
Rims
MERIDA EXPERT SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Double Butted Black stainless
Tires
Maxxis Detonator, 700x32C, fold
Brakes
Brakes
Shimano Ultegra, Hydraulic Disc
Brake Levers
Shimano Ultegra
Disk Rotors
Shimano RT54, 160mm
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440 (L-XL)
Headset
MERIDA 8151, w/o crown race
Seat
Saddle
MERIDA COMP SL, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.5 mm | 1.49 mm | 1.53 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 583 mm | 588 mm | 592 mm | 592 mm | 608 mm | 617 mm |
| Rake | 49 mm | 48 mm | 48 mm | 48 mm | 49 mm | 47 mm |
| Trail | 68 mm | 66 mm | 60 mm | 53 mm | 52 mm | 51 mm |
| Stack | 545 mm | 558 mm | 571 mm | 590 mm | 609 mm | 635 mm |
| Reach | 366 mm | 372 mm | 382 mm | 386 mm | 395 mm | 403 mm |
| Top Tube Length | 521 mm | 530 mm | 544 mm | 559 mm | 574 mm | 589 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 490 mm | 510 mm | 530 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 140 mm | 152 mm | 161 mm | 177 mm | 197 mm | 222 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 998 mm | 1003 mm | 1007 mm | 1007 mm | 1023 mm | 1032 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 748 mm | 773 mm | 791 mm | 809 mm | 829 mm | 858 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
SCULTURA ENDURANCE 5000 completes the Merida Scultura model. There are 214 bikes that carry this model name. Take a sneak peek at all Merida Scultura bikes models from 2022, by clicking here.
Model range prices
Merida SCULTURA RIM 100 2022 is the cheapest bike model and costs 1077$. Merida SCULTURA 10K 2022 is the most expensive one and costs 12164$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Merida released this model in 2022, its price was 2292$. Comparing the average cost of an Endurance bike to this one, you will see that SCULTURA ENDURANCE 5000 price is 2.36% smaller.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The SCULTURA ENDURANCE 5000 2022 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida SCULTURA ENDURANCE 5000 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
