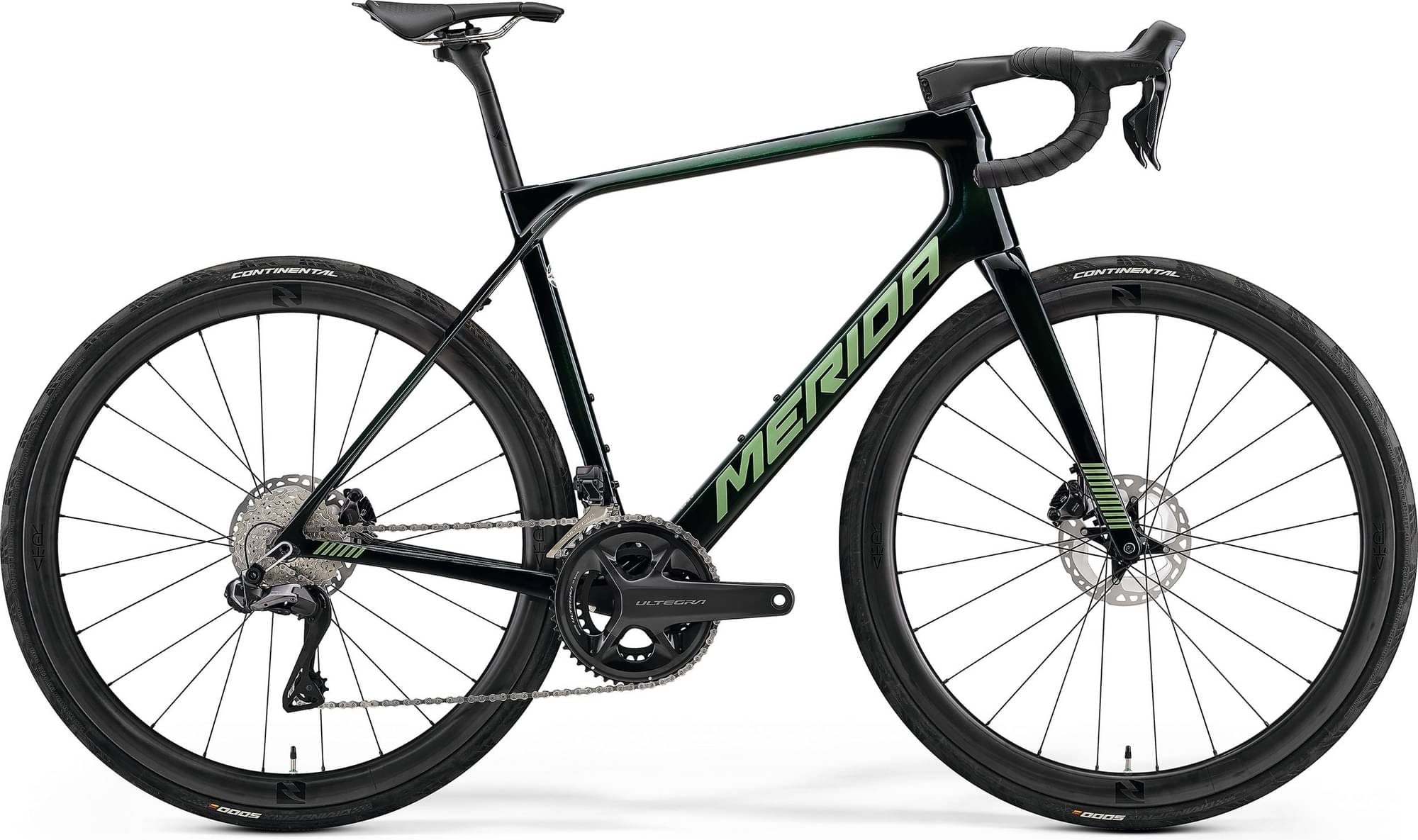

Merida SCULTURA ENDURANCE 9000 2022
2022 Road
Estimate price |
6,959$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA ENDURANCE CF3 II, material: carbon, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard, MUK 38 (Shimano direct mount)/ MUK 39 Hanger
Suspension Fork
SCULTURA ENDURANCE CF3 Disc, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano Ultegra Disc Di2
Cassette
Shimano CS-R8100, 11-34 teeth, 12 speed
Crank
Shimano Ultegra, 50-34 teeth, 165mm-XXS, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
SM-BB72-41B, Pressfit 86.5
Chain
Shimano CN-M8100-12
Wheels
Front Hub
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Rear Hub
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Rims
Reynolds ATR DB, 100x12mm width front hub, 142x12mm width rear hub, 23mm inner width, 40mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves included)
Tires
Continental Grand Prix 5000 TR, 700x32C, fold
Brakes
Brakes
Shimano Ultegra, Hydraulic Disc
Brake Levers
Shimano Ultegra
Disk Rotors
Shimano MT800, 160mm
Cockpit
Stem
MERIDA TEAM ONE-PIECE INTEGRATED, material: carbon, 90 mm-XXS/XS, 100 mm-S/M, 110 mm-L, 120 mm-XL
Handlebar
MERIDA TEAM SL 1P INTEGRATED, material: carbon, 400mm (XXS-XS-S), 420mm (M), 440mm (L-XL)
Headset
MERIDA TEAM SL, SE-301 neck
Seat
Saddle
Prologo Scratch M5
Seatpost
MERIDA TEAM SL, 27.2mm diameter, 15mm setback, Carbon, S-Flex
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.53 mm | 1.54 mm | 1.58 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 592 mm | 592 mm | 608 mm | 617 mm |
| Rake | 48 mm | 48 mm | 49 mm | 47 mm |
| Trail | 60 mm | 53 mm | 52 mm | 51 mm |
| Stack | 570 mm | 589 mm | 608 mm | 634 mm |
| Reach | 381 mm | 385 mm | 394 mm | 402 mm |
| Top Tube Length | 543 mm | 558 mm | 573 mm | 588 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 560 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 161 mm | 177 mm | 197 mm | 222 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1006 mm | 1006 mm | 1022 mm | 1031 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 790 mm | 808 mm | 828 mm | 857 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SCULTURA ENDURANCE 9000 is a Merida Scultura model. There are 214 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Merida SCULTURA RIM 100 2022 has a starting price of 1077$. Merida SCULTURA 10K 2022 on the other hand is the most expensive at 12164$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6325$. In conclusion, this bike price is 169.61% more expensive than the price of the average Endurance bike.
SCULTURA ENDURANCE 9000 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Merida SCULTURA ENDURANCE 9000 2022, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SCULTURA ENDURANCE 9000 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
