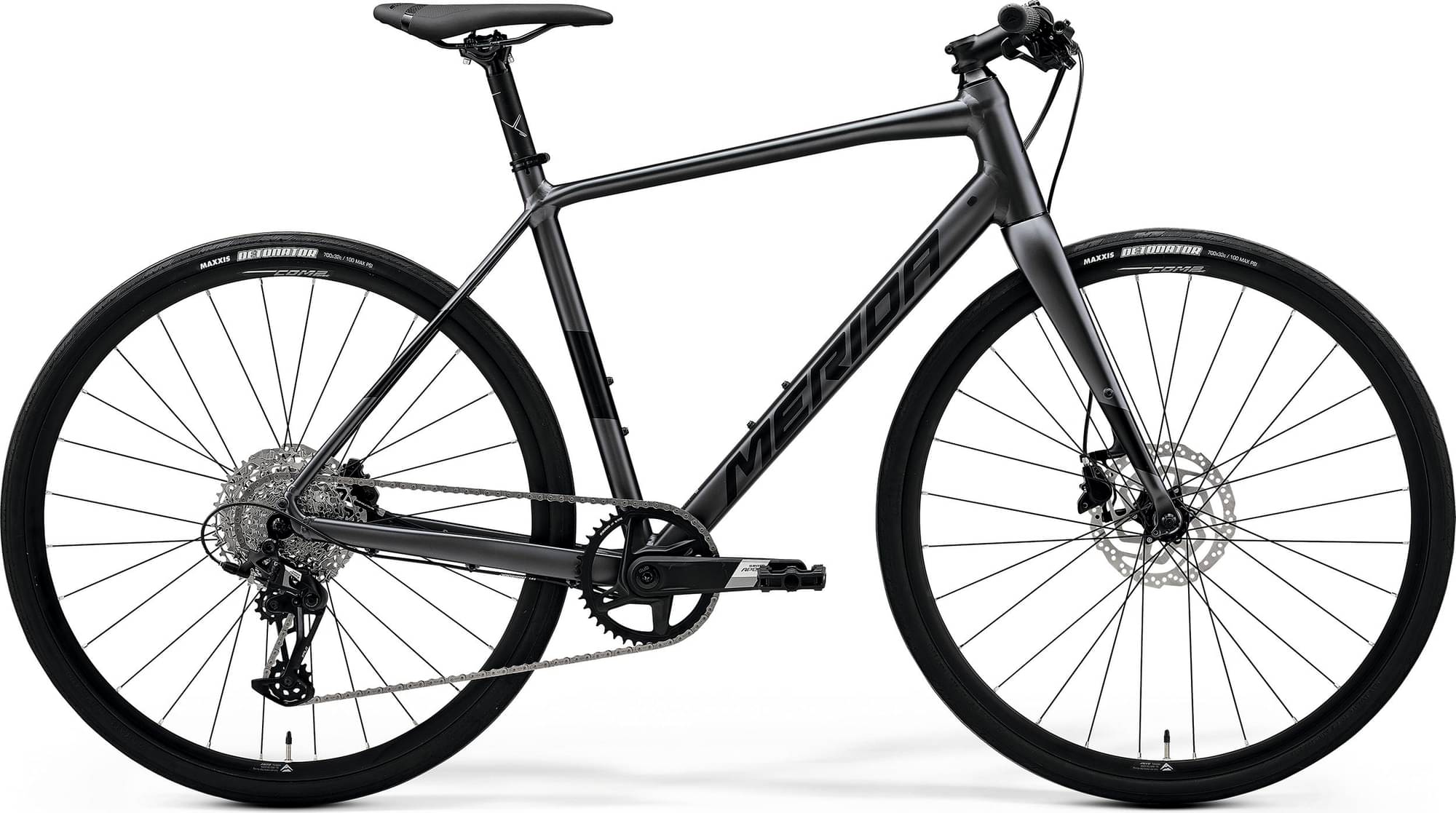

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex XPLR, SX Eagle -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SPEEDER LITE III, material: aluminium, 700x35C max. wheelsize, 100x9/135x9 mm axle standard, BSA bottom bracket standard
Suspension Fork
MERIDA SPEEDER CF2, Tapered, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
SRAM Apex XPLR
Shift Levers
SRAM SX Eagle
Cassette
SRAM XPLR PG-1231 XPLR, 11-44 teeth, 12 speed
Crank
SRAM Apex 1 Wide, 170 mm-XXS/XS, 172,5 mm-S/M, 175 mm-L/XL
Bottom Bracket
SRAM DUB BSA Road Wide
Chain
SRAM Apex
Pedals
VP VPE-891
Wheels
Front Hub
Joytech D471SBT-SC-CL / Joytech D472TSBT-SC-CL, 100x9 mm width front hub, 28 spoke holes, centerlock, 135x9 mm width rear hub, 28 spoke holes, centerlock
Rear Hub
Joytech D471SBT-SC-CL / Joytech D472TSBT-SC-CL, 100x9 mm width front hub, 28 spoke holes, centerlock, 135x9 mm width rear hub, 28 spoke holes, centerlock
Rims
MERIDA COMP SL, 17 mm inner width, 22 mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Front: Maxxis Detonator, 700x32C, fold, Rear: Maxxis Detonator, 700x32C, fold
Brakes
Brakes
Shimano MT200, 2 piston
Brake Levers
Shimano MT200
Cockpit
Stem
MERIDA EXPERT CC, material: aluminium, 31.8 mm diameter, 5° stem angle, 80 mm-XXS/XS, 90 mm-S, 100 mm-M, 110 mm-L/XL
Handlebar
MERIDA EXPERT CC, material: aluminium, 600 mm width, Flat
Headset
MERIDA M2331 Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 30.9 mm diameter, 5 mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.539 mm | 1.575 mm |
| Front Center | 628 mm | 636 mm | 645 mm | 658 mm |
| Rake | 45 mm | 45 mm | 46 mm | 45 mm |
| Trail | 73 mm | 69 mm | 65 mm | 66 mm |
| Stack | 585 mm | 606 mm | 631 mm | 655 mm |
| Reach | 398 mm | 404 mm | 410 mm | 416 mm |
| Top Tube Length | 571 mm | 583 mm | 597 mm | 610 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 170 mm | 190 mm | 215 mm | 240 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1058 mm | 1066 mm | 1075 mm | 1088 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 787 mm | 806 mm | 828 mm | 855 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
SPEEDER 400 belongs to the Merida Speeder model. 95 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
The most economical model, the Merida SPEEDER 100 2024 has a starting price of 738$. Merida SPEEDER 200 2024 on the other hand is the most expensive at 834$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Fitness bikes
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Merida SPEEDER 400 2024, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
