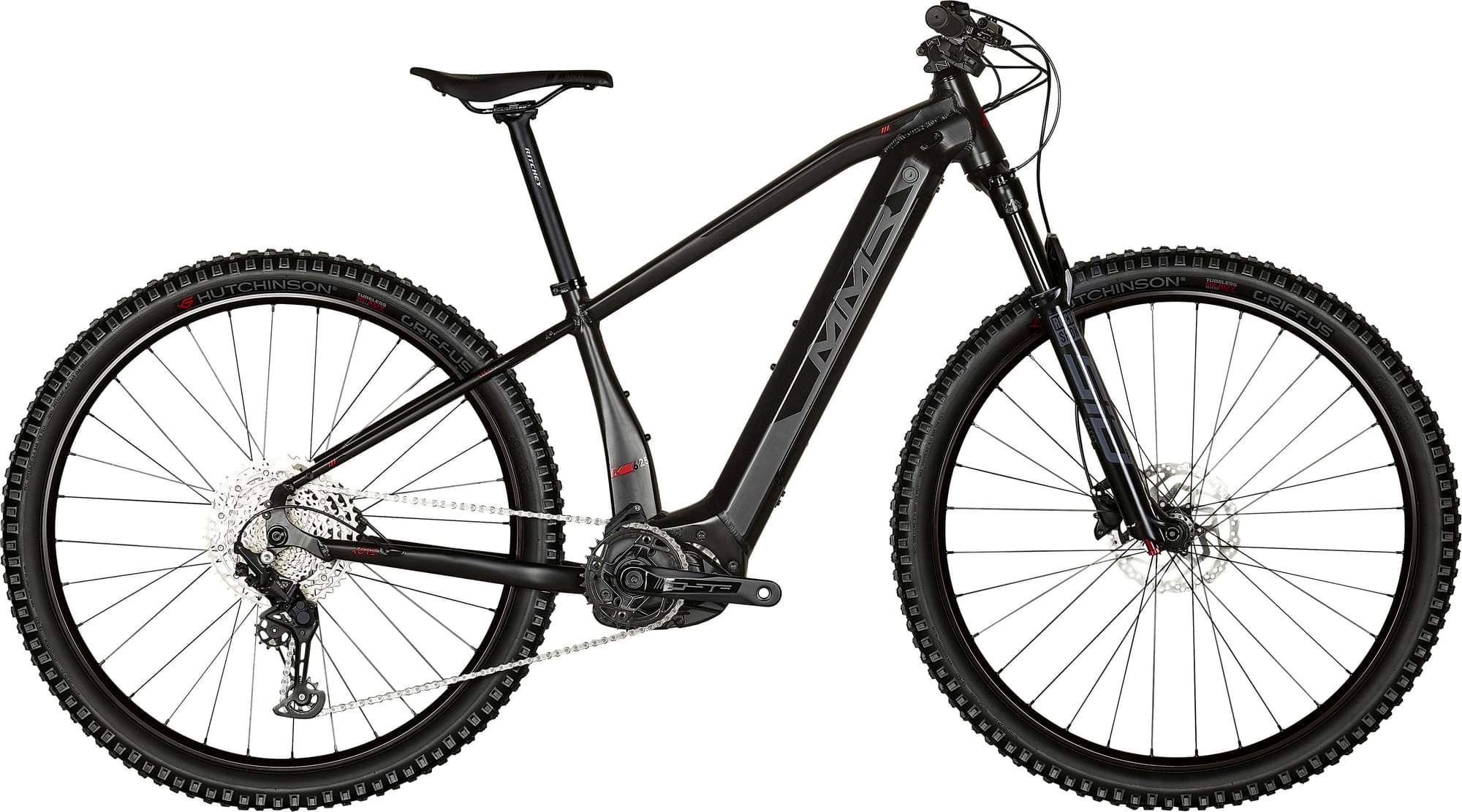

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Power Tube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kore- G2. AC Frame. Aluminum 6061 Hydroformed Double butted. TA 12mm. Internal Cable Routing. Boost. PostMount. Full Integrated battery. Ebike Optimized. Head Tube Tapered 1.5
Suspension Fork
Rock Shox SID Base Air Crown 15 Boost. E-bike. Travel 100mm. Tapered.
Drivetrain
Rear Derailleur
Shimano Deore M6100 12V
Cassette
Sun Race 11-51 12V
Crank
FSA Forged E-bike 34
Chain
Shimano Deore M6100 12V
Wheels
Rims
Shimano MT500 CL
Tires
Hutchinson Griffus TLR Sideskin 29x2.50
Brakes
Brakes
Shimano MT200 180/160
Cockpit
Stem
Ritchey Trail
Handlebar
Ritchey Comp 2x720mm
Headset
Ritchey Pro Press Fit Tapered 1.5
Seat
Saddle
San Marco GND Dynamic
Seatpost
Ritchey Comp Zero 30.9
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch Power Tube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.53 mm | 1.49 mm | 1.46 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 694 mm | 718 mm | 737 mm | 756 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 95 mm | 95 mm | 95 mm | 95 mm |
| Stack | 629 mm | 639 mm | 647 mm | 657 mm |
| Reach | 399 mm | 419 mm | 434 mm | 449 mm |
| Top Tube Length | 581 mm | 604 mm | 621 mm | 639 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1152 mm | 1176 mm | 1195 mm | 1214 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Koen 00 is a Mmr E Koen model. 2 e-bikes variations carry this model name so far. Take a sneak peek at all Mmr E Koen e-bikes models from 2023, by clicking here.
Model range prices
MMR Koen 10 2023 is the cheapest e-bike model and costs 3917$. MMR Koen 00 2023 is the most expensive one and costs 4552$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When MMR released this model in 2023, its price was 4552$. Doing a quick comparison, we notice that Koen 00 price is 85.57% more expensive than the average cost of a Crosscountry e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the RockShox SID fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the Koen 00 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. MMR Koen 00 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
MMR Koen 00 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
