Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several molds. TA 12mm. Internal Cable Routing. Boost. Post Mount. Full Integrated Battery. Head tube 1.5 Tapered.
Suspension Fork
Fox Factory 34 E-Bike. Travel 120mm. Tapered.
Rear Shock
Fox Float DPS Factory 120 E-bike
Drivetrain
Shift Levers
Shimano XT M8100 12V

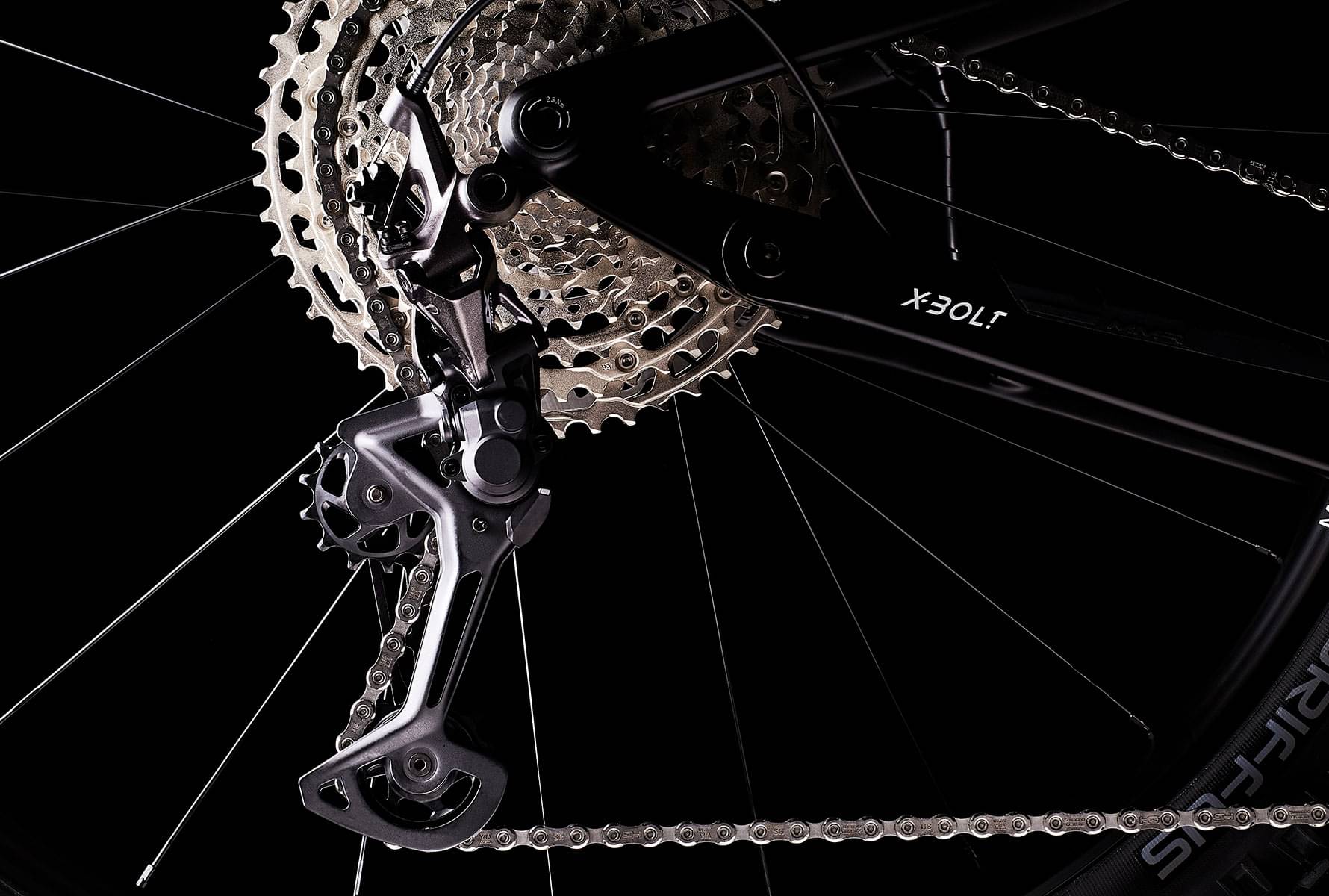

Cassette
Shimano Deore M6100 12V 10-51
Crank
Fsa KFX E-bike 34
Chain
Shimano Deore M6100 12V
Wheels
Rims
DT Swiss H-1900 35 Hybrid MS TLR
Tires
Hutchinson Griffus TLR Sideskin 29x2.50
Brakes
Brakes
SRAM DB8 CL 200/180
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 760mm 10mm Rise
Headset
Ritchey Pro Integrada Tapered 1.5
Seat
Saddle
San Marco GND Dynamic
Seatpost
Fox Transfer Factory Dropper 125mm 30.9
Motor & Battery
Motor

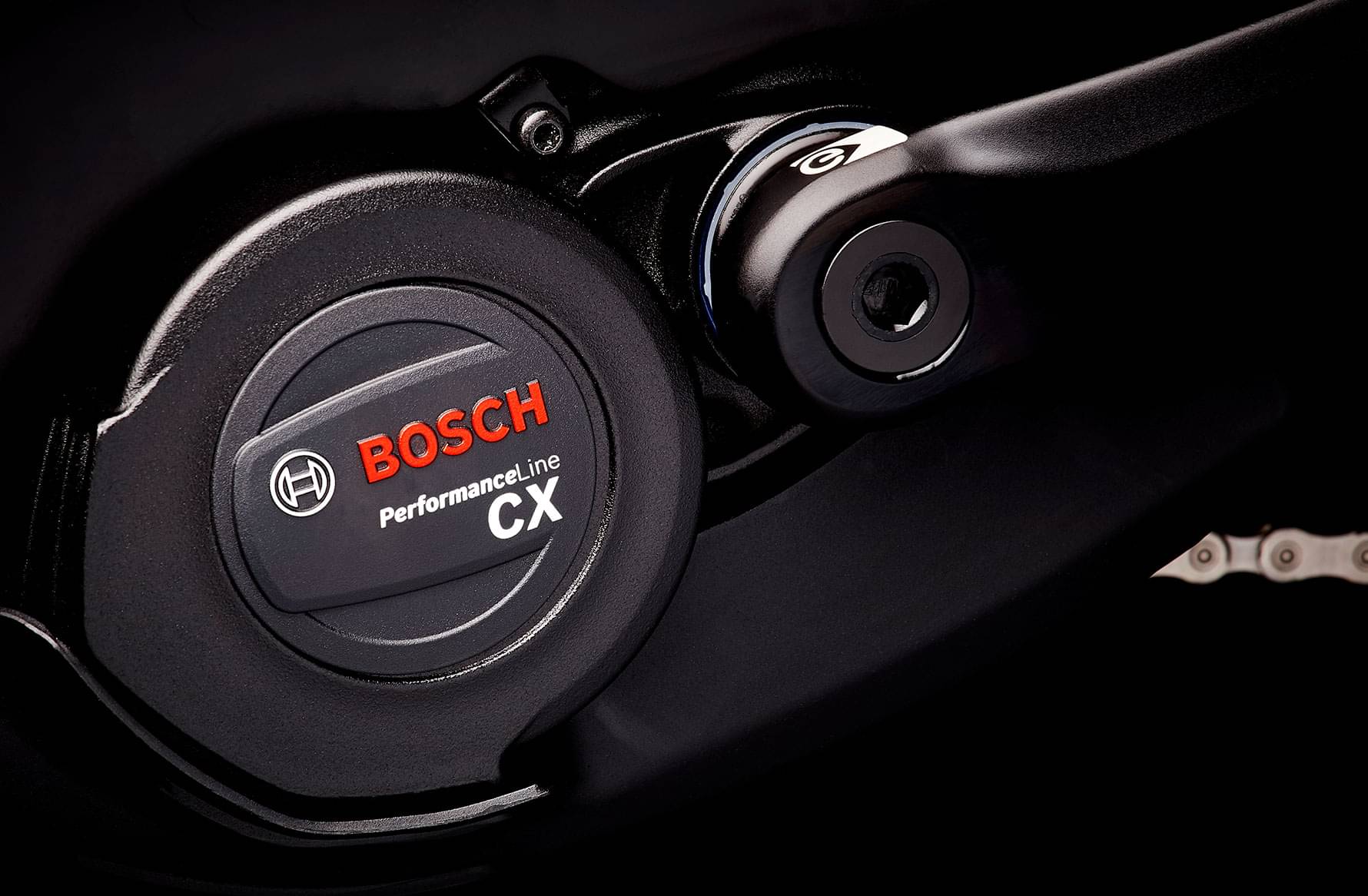

Bosch Performance Line CX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Front Center | 728 mm | 759 mm | 790 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 99 mm |
| Stack | 615 mm | 628 mm | 642 mm |
| Reach | 441 mm | 465 mm | 490 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1189 mm | 1220 mm | 1251 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
X-BOLT 120 00 is a Mmr E X Bolt model. MMR released 17 e-bikes variations of this model so far. Take a sneak peek at all Mmr E X Bolt e-bikes models from 2023, by clicking here.
Model range prices
MMR X-Bolt 140 90 2023 is the most affordable e-bike of this model and has a price of 4331$. On the other hand, MMR X-BOLT 140 00 2023, is the most expensive and costs 7325$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7113$. If we compare this with the average Trail e-bike cost we notice that the price is 111.38% more expensive.

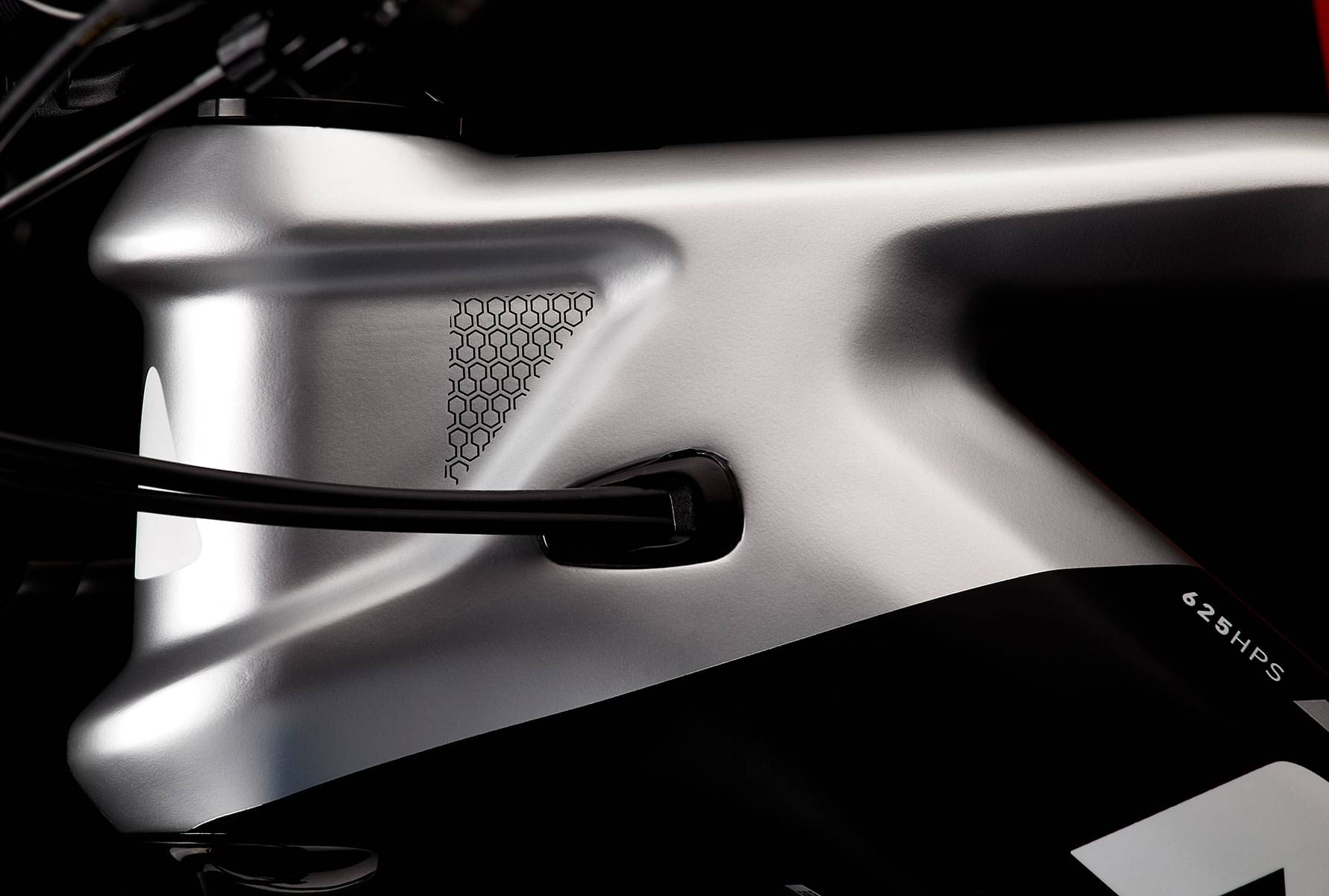

Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
MMR X-BOLT 120 00 e-bike has the Fox Float DPS Factory 120 E-bike model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the X-BOLT 120 00 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The X-BOLT 120 00 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
MMR X-BOLT 120 00 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
MMR X-BOLT 120 00 includes a dropper post. Therefore, climbing or descending will be a breeze.
