Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several moulds. TA 12mm. Internal Cable Routing. Boost. PostMount. Full Integrated Battery. Head tube 1.5 Tapered
Suspension Fork
Fox Performance 34 E-Bike. Travel 120mm. Tapered
Rear Shock
Fox Float DPS Factory 120 E-bike
Drivetrain
Rear Derailleur
SRAM GX Eagle 12V
Shift Levers
SRAM GX Eagle 12V
Cassette
SRAM GX Eagle XG-1275 12V 10-52
Crank
FSA Forged E-bike 34
Chain
SRAM SX Eagle 12V
Wheels
Rims
Mavic E-DEEMAX 29 35 CL
Tires
Hutchinson Griffus TLR Sideskin 29x2.50
Brakes
Brakes
SRAM DB8 CL 200/180
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 760mm 10mm Rise
Headset
Ritchey Pro Integrated Tapered 1.5
Seat
Saddle
San Marco GND Dynamic
Seatpost
Race Face Aeffect R Dropper 125mm 30.9
Motor & Battery
Motor
Bosch Performance Line CX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Front Center | 728 mm | 759 mm | 790 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 99 mm |
| Stack | 615 mm | 628 mm | 642 mm |
| Reach | 441 mm | 465 mm | 490 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1189 mm | 1220 mm | 1251 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

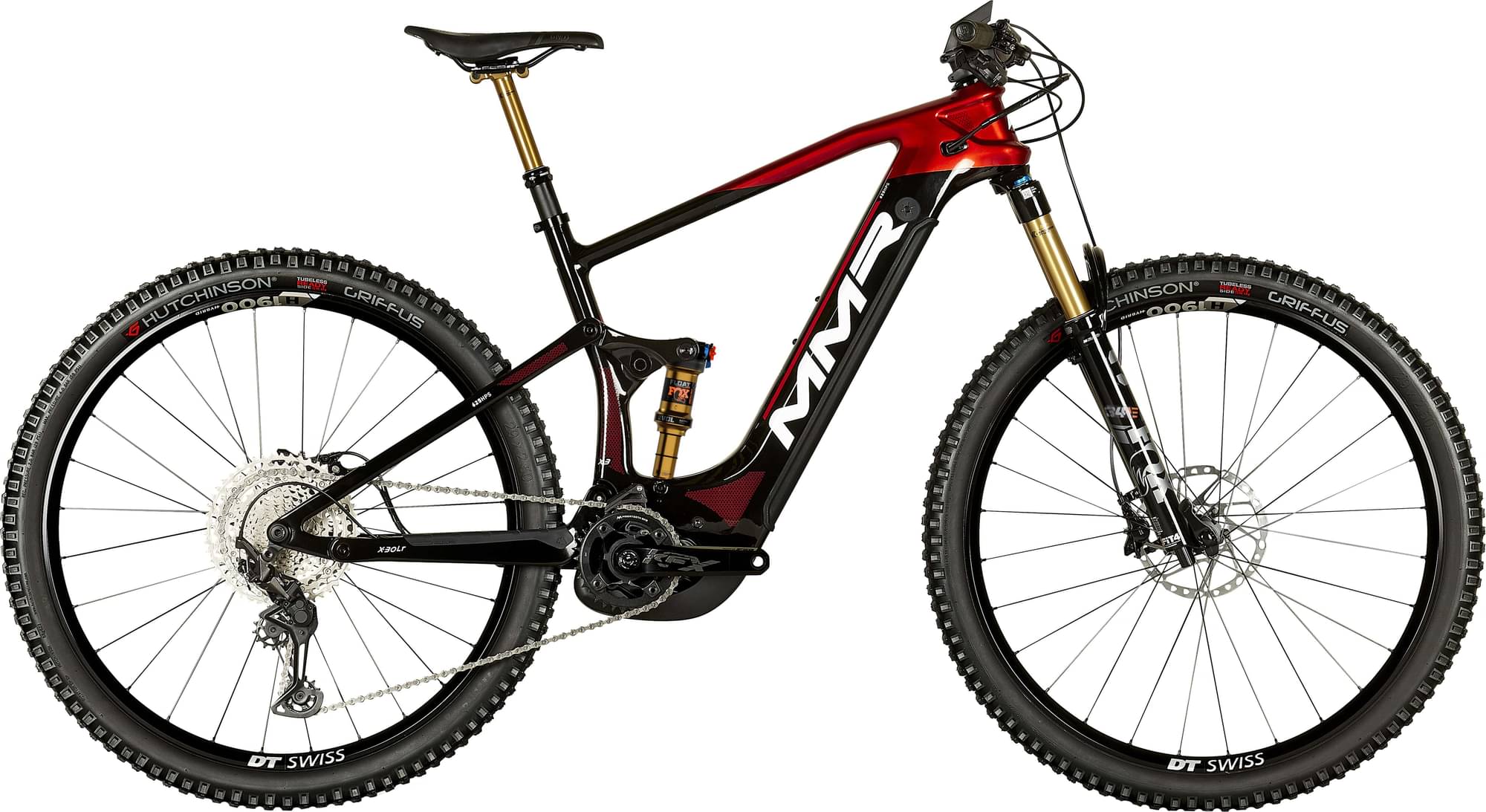

X-Bolt 120 10 completes the Mmr E X Bolt model. MMR released 17 e-bikes variations of this model so far. You can easily view all of the Mmr E X Bolt e-bikes models from 2023, here.
Model range prices
MMR X-Bolt 140 90 2023 is the cheapest e-bike model and costs 4331$. MMR X-BOLT 140 00 2023 is the most expensive one and costs 7325$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, MMR X-Bolt 120 10 price was 5265$. If we compare this with the average Trail e-bike cost we notice that the price is 56.46% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The X-Bolt 120 10 comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Factory 120 E-bike rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, MMR X-Bolt 120 10 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
MMR X-Bolt 120 10 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
