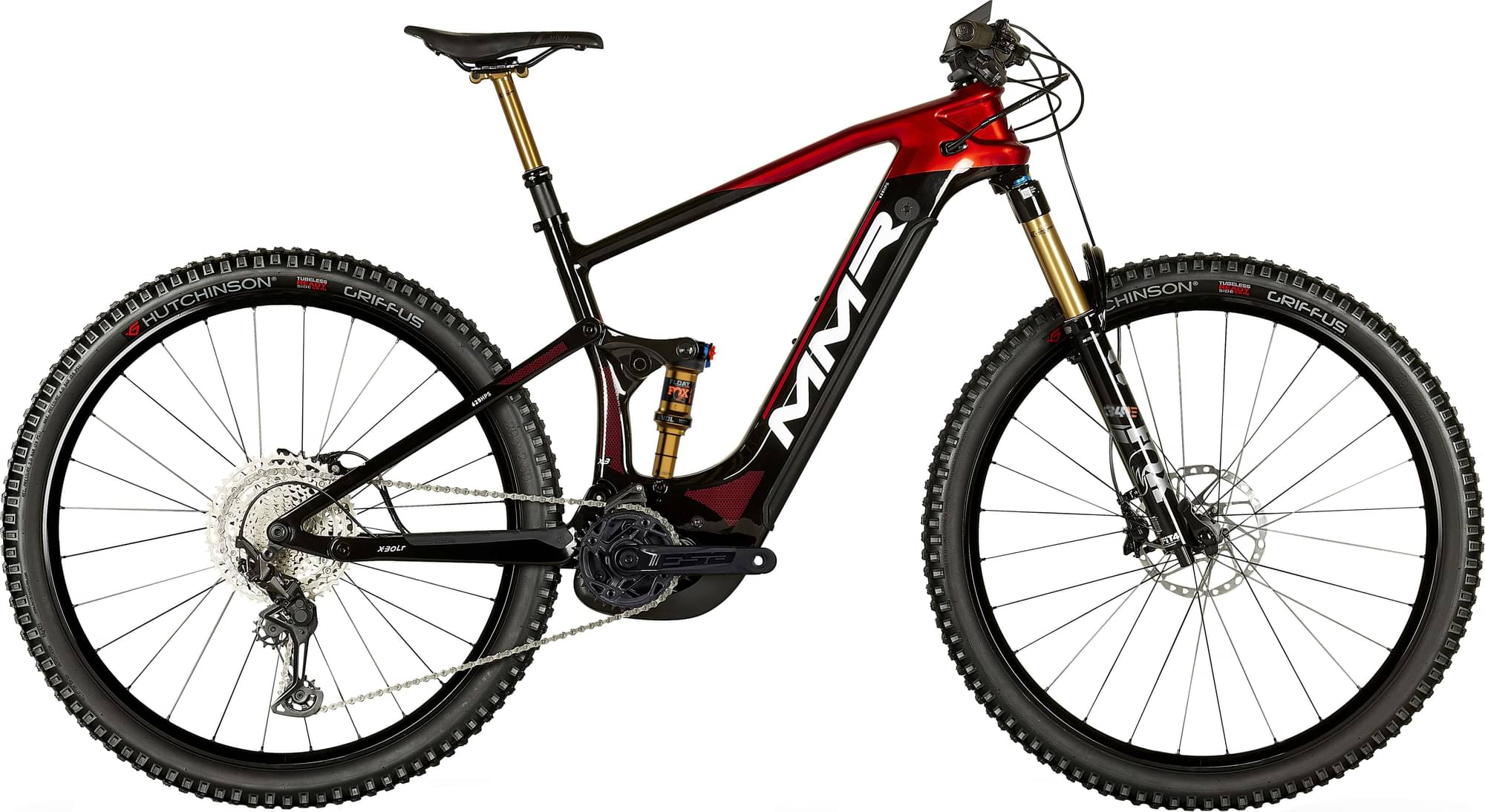

MMR X-Bolt 120 PLUS Plus 2023
2023 E-bike
Estimate price |
5,963$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bolt - G2 Carbon, Concept Frame. Intermediate modulus carbon fiber. Several moulds. TA 12mm. Internal Cable Routing. Boost. PostMount. Full Integrated Battery.Head tube 1.5 Tapered
Suspension Fork
Fox Factory 34 E-Bike, 120mm, Tapered
Rear Shock
Fox FloatDPS Factory 120mm
Drivetrain
Rear Derailleur
Shimano XT M8100 12V
Shift Levers
-
Cassette
Shimano Deore M6100 10/51 12V
Crank
FSA Alloy Forged 34T 12V
Chain
Shimano Deore M6100 12V
Wheels
Rims
Shimano MT-601
Tires
Hutchinson Griffus TLR 29 2.50
Brakes
Brakes
Shimano XT M8120 RT64 203/180
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 760mm Rise 10mm
Headset
-
Seat
Saddle
San Marco Ground Short Dynamic Wide
Seatpost
Fox Transfer Factory Dropper, 125mm
Motor & Battery
Motor
Bosch Performance Line CX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Front Center | 728 mm | 759 mm | 790 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 99 mm |
| Stack | 615 mm | 628 mm | 642 mm |
| Reach | 441 mm | 465 mm | 490 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1189 mm | 1220 mm | 1251 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
X-Bolt 120 PLUS Plus completes the Mmr E X Bolt model. MMR launched 17 e-bikes of this model so far. Take a sneak peek at all Mmr E X Bolt e-bikes models from 2023, by clicking here.
Model range prices
The most economical model, the MMR X-Bolt 140 90 2023 has a starting price of 4331$. MMR X-BOLT 140 00 2023 on the other hand is the most expensive at 7325$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When MMR released this model in 2023, its price was 5520$. In conclusion, this e-bike price is 64.04% more expensive than the price of the average Trail e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the Fox FloatDPS Factory 120mm model, with a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the X-Bolt 120 PLUS Plus e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The X-Bolt 120 PLUS Plus has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
MMR X-Bolt 120 PLUS Plus e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
