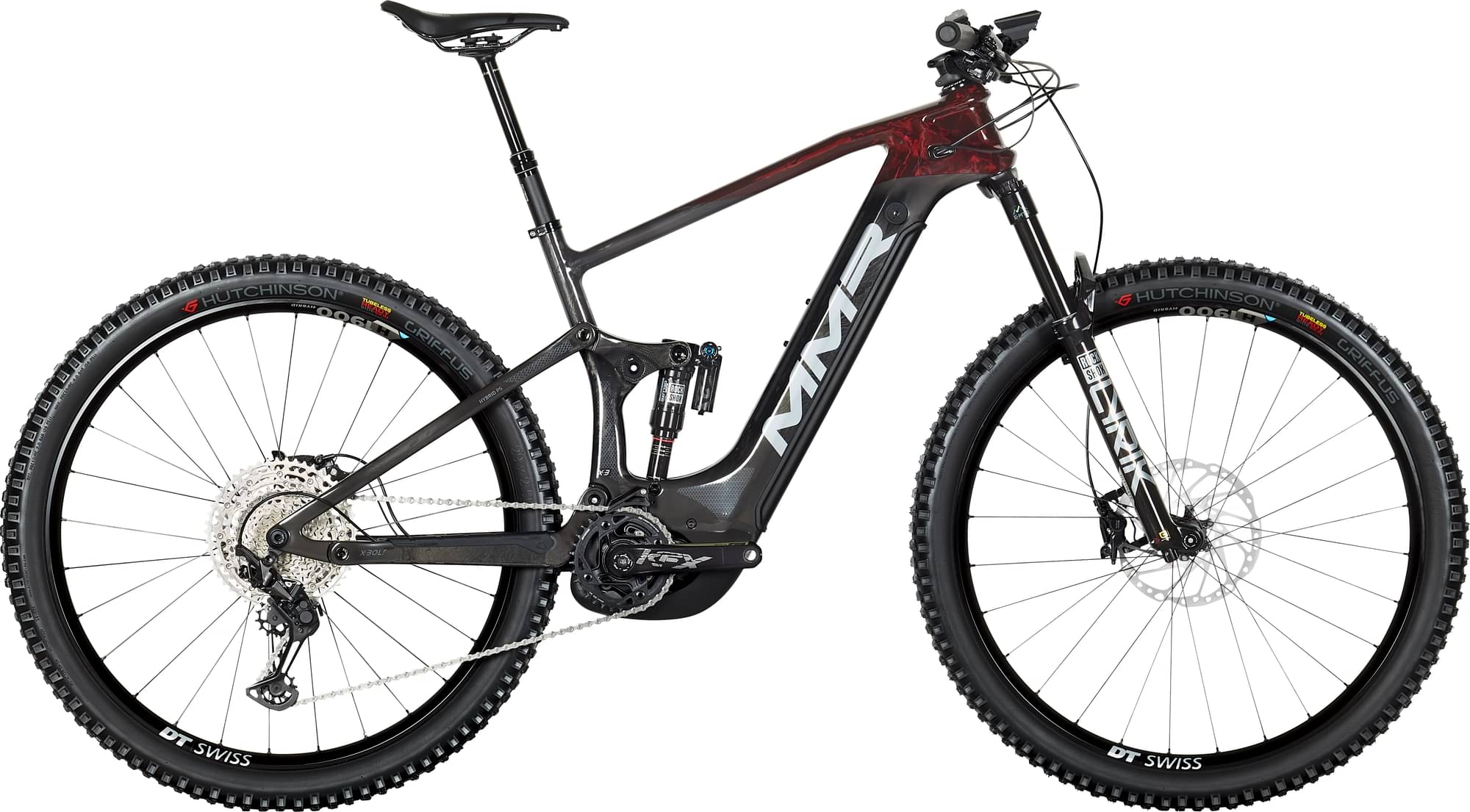

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Power Tube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several moulds. TA 12mm. Internal Cable Routing. Boost. PostMount. Full Integrated Battery. Head tube 1.5 Tapered
Suspension Fork
RockShox Silver Air 35 Crown 29 140mm
Rear Shock
RockShox Deluxe Select, E-Bike 140
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS 12V
Cassette
Shimano Deore M6100 10/51 12V
Crank
FSA Alloy Forged 34T
Chain
Shimano Deore M6100 12V
Wheels
Rims
XCR-9800 Hybrid MT400 / MT510B Boost CL MS
Tires
Hutchinson Griffus 29 2.50 TL SideSkin
Brakes
Brakes
Shimano MT-420 200/180
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Turbine R35 800mm
Seat
Saddle
San Marco GND Dynamic
Seatpost
Race Face Affect R 125mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System
Battery
Bosch Power Tube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 736 mm | 767 mm | 798 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 106 mm | 106 mm |
| Stack | 622 mm | 635 mm | 649 mm |
| Reach | 431 mm | 456 mm | 481 mm |
| Top Tube Length | 596 mm | 624 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1197 mm | 1228 mm | 1259 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
X-Bolt 140 70 is a Mmr E X Bolt model. MMR launched 26 e-bikes of this model so far. You can easily view all of the Mmr E X Bolt e-bikes models from 2023, here.
Model range prices
MMR X-Bolt 140 90 2023 is the most economical model, with a starting price of 4319$. MMR X-BOLT 140 00 2023 on the other hand costs 7305$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the RockShox Deluxe Select rear shock model, which has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The X-Bolt 140 70 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The X-Bolt 140 70 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
