Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex XPLR -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Grip - G1 AC Concept Frame. Aluminum 6061. Hydroformed. Triple Butted. TA 12mm. Optimized Cable Routing. Flat Mount. Headtube 1.5mm
Suspension Fork
X-Grip - G1 Carbon Concept Fork. TA 12mm
Drivetrain
Rear Derailleur
SRAM Apex XPLR 12V
Cassette
SRAM PG-1231 XPLR 11/44 12V
Crank
SRAM Apex1 40T DUB WIDE
Chain
SRAM Apex D1 12V
Wheels
Rims
Mavic Allroad 1
Tires
Hutchinson Touareg 40mm
Brakes
Brakes
SRAM Apex 1 140
Cockpit
Stem
Ritchey Switch Comp
Handlebar
Ritchey Butane Comp
Seat
Saddle
Selle Italia X3 Boost Flow
Seatpost
Ritchey Logic
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.474 mm | 1.507 mm | 1.53 mm | 1.571 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 578 mm | 587 mm | 605 mm | 627 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 74 mm | 68 mm | 68 mm | 68 mm |
| Stack | 538 mm | 565 mm | 589 mm | 622 mm |
| Reach | 365 mm | 375 mm | 385 mm | 396 mm |
| Top Tube Length | 519 mm | 542 mm | 565 mm | 586 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 530 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 135 mm | 160 mm | 195 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 998 mm | 1007 mm | 1025 mm | 1047 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

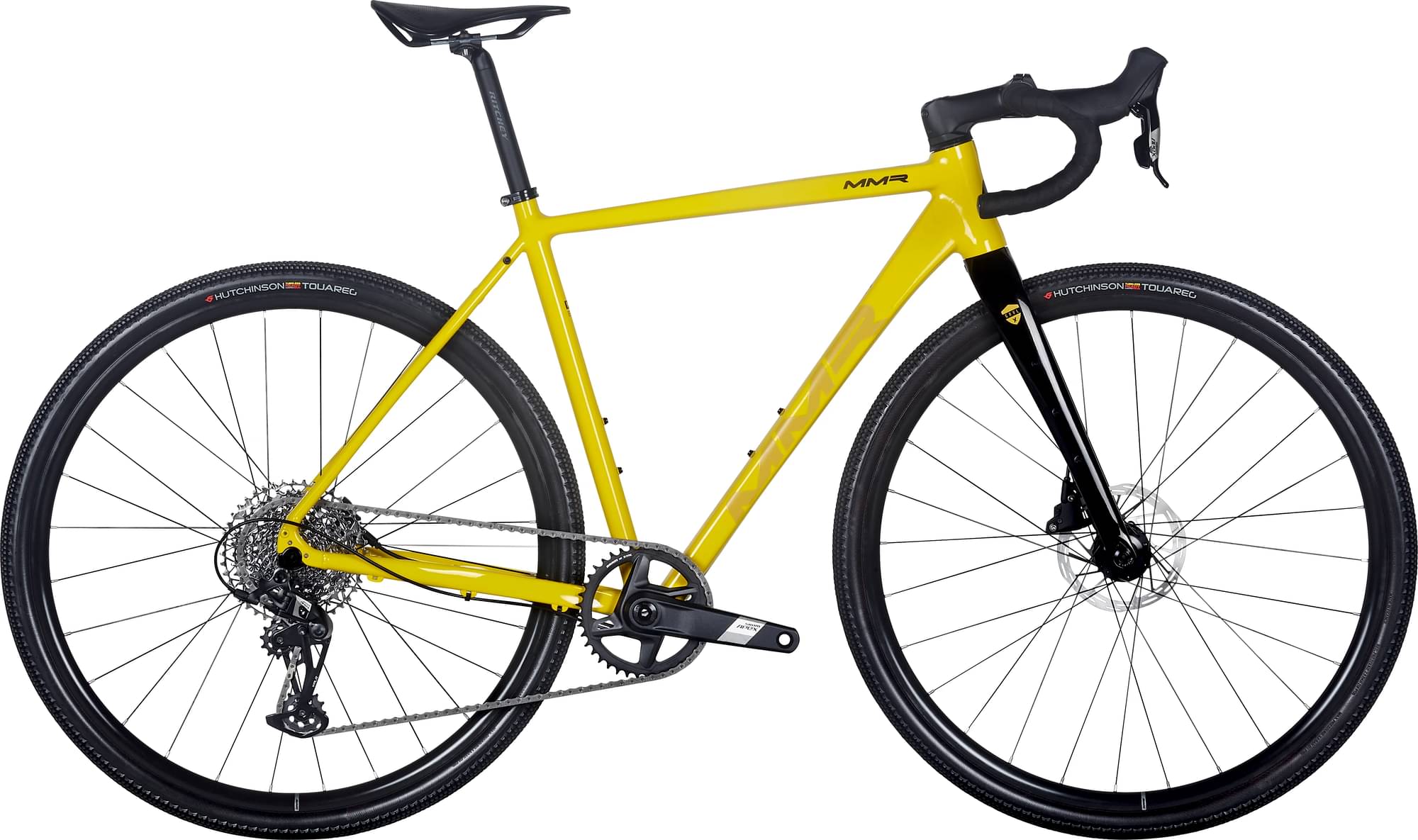

X-Grip 00 is a Mmr X Grip model. 6 bikes variations carry this model name so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
The most economical model, the MMR X-Grip 10 2024 has a starting price of 2223$. MMR X-Grip 00 2024 on the other hand is the most expensive at 2329$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When MMR released this model in 2024, its price was 2329$. In conclusion, this bike price is 5.71% lower than the price of the average Gravel bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
X-Grip 00 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the X-Grip 00 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
X-Grip 00 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
