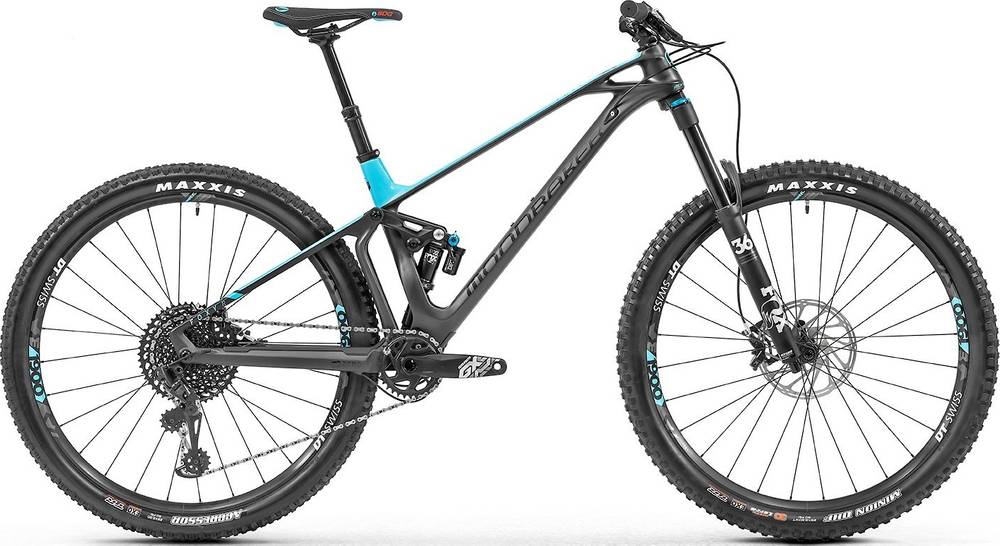

Mondraker Foxy Carbon R 29 2019
2019 Mountain
Estimate price |
5,399$
Weight | 13.94 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset SRAM -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Float EVOL Performance, FIT, GRIP, Boost, 44mm offset
Rear Shock
FOX Float DPX2 LV EVOL Performance, Trunnion top mount, 205mm x 62.5mm
Drivetrain
Rear Derailleur
SRAM Eagle, X-Horizon, Type 3
Front Derailleur
N/A
Shift Levers
SRAM Eagle, 12-speed
Cassette
SRAM Eagle, 12-speed
Crank
SRAM Eagle, DUB Boost
Bottom Bracket
SRAM, DUB BSA, sealed bearings, 73mm
Chain
SRAM Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss 370, Boost front and rear, IS 6 bolt
Rear Hub
DT Swiss 370, Boost front and rear, IS 6 bolt
Rims
DT Swiss E1900 Spline 29, 30mm internal width, tubeless ready, 28 hole
Spokes
DT Swiss Champion, straight pull
Tires
Front: Maxxis Minion DHR II, 2.4" WT / Tubeless ready / 3C MaxxTerra / EXO / 60TPI / folding bead, Rear: Maxxis Aggressor, 2.3" tubeless ready / dual compound / EXO / 60TPI / folding bead
Brakes
Brakes
SRAM Guide T with 200mm front / 180mm rear Centerline rotors, 4 piston, IS 6-bolt, steel-backed organic pads
Brake Levers
SRAM Guide T, tooled reach adjust
Cockpit
Stem
Onoff Stoic FG, 6061 forged alloy, 30mm length, 31.8mm clamp
Handlebar
Mondraker, double butted 6061 alloy, 780mm width, 12mm rise, 9° backsweep, 5° upsweep, 31.8mm diameter
Grips
Onoff Diamond, lock-on, 130mm width
Headset
Onoff Saturn, ACB sealed bearings
Seat
Saddle
SDG Fly MTN, PU foam, steel rail, Cordura sides
Seatpost
Onoff Pija Dropper, 100mm drop (S), 125mm drop (M), 150mm drop (L-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.31 mm | 1.28 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 602 mm | 611 mm | 625 mm | 639 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 603 mm | 626 mm | 651 mm | 675 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1184 mm | 1207 mm | 1233 mm | 1259 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Foxy Carbon R 29 belongs to the Mondraker Foxy model. Mondraker released 33 bikes variations of this model so far. You can easily view all of the Mondraker Foxy bikes models from 2019, here.
Model range prices
Mondraker Foxy 27.5 2019 is the most economical model, with a starting price of 3931$. Mondraker Foxy Carbon XR 29 2019 on the other hand costs 9399$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 5399$. Doing a quick comparison, we notice that Foxy Carbon R 29 price is 50.01% higher than the average cost of an Enduro bike.
Enduro bikes average weight
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Foxy Carbon R 29 weighs 13.94 kg (30.73 lbs) and is slightly lighter than the average. In other words, this model is 2.37% lighter than the average Enduro bike.
Overview of components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the FOX Float DPX2 LV EVOL Performance rear shock model, which has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Foxy Carbon R 29 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Foxy Carbon R 29 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Foxy Carbon R 29 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Foxy Carbon R 29. Therefore, climbing or descending will be a breeze.
