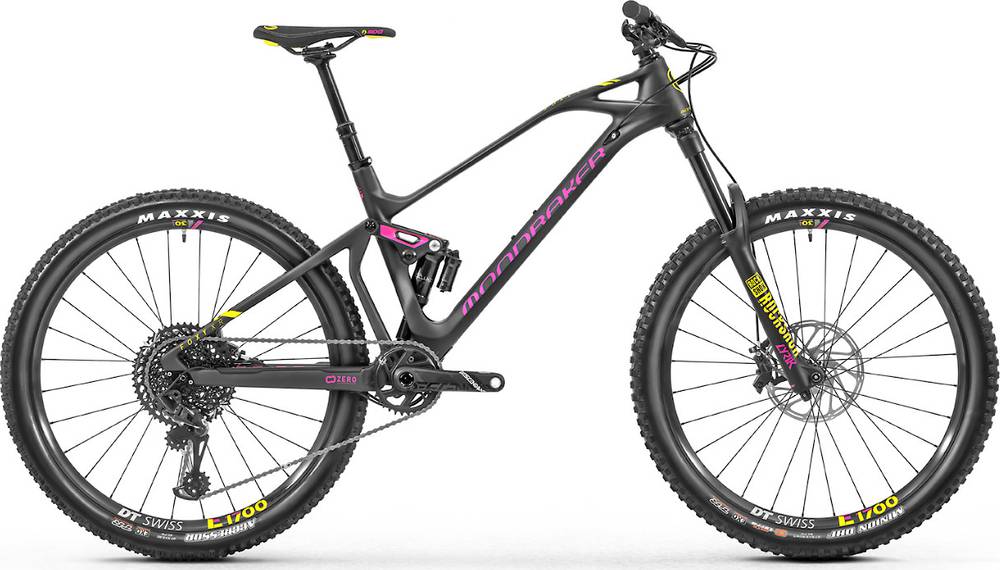

Mondraker Foxy Carbon XR 27.5 2019
2019 Mountain
Estimate price |
7,110$
Weight | 13.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik
-
Groupset GX Eagle, Truvativ Descendant Carbon -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Lyrik RC2, Charger 2, Debon Air, tapered steerer tube, 15mm x 110mm axle, 37mm offset
Rear Shock
RockShox Superdeluxe RC3, 205mm x 62.5mm, DebonAir, Trunnion top mount, 22.2mm x 10mm bottom bushings
Drivetrain
Rear Derailleur
SRAM GX Eagle, Type 3, roller bearing clutch, cage lock, 1x12-speed, X-Actuation
Front Derailleur
N/A
Shift Levers
SRAM Trigger GX Eagle, 12-speed, X-Actuation
Cassette
SRAM XG-1275, 10-50 tooth, 12-speed
Crank
Truvativ Descendant Eagle carbon, 12-speed, Boost, DUB axle, 170mm (S/M), 175mm (L/XL)
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM NX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Front: DT Swiss 350, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 350, 12mm x 148mm, IS 6-bolt, XD freehub
Rear Hub
Front: DT Swiss 350, 15mm x 110mm, IS 6-bolt, Rear: DT Swiss 350, 12mm x 148mm, IS 6-bolt, XD freehub
Rims
DT Swiss E1700 Spline 27.5, 30mm internal width, tubeless ready, 28 hole
Spokes
DT Swiss Competition, straight
Tires
Front: Maxxis Minion DHF 27.5" x 2.5" WT, tubeless ready, 3C MAXX TERRA compound, Exo protection, 60TPI, folding bead, Rear: Maxxis Aggressor 27.5" x 2.3", tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Brakes
Brakes
SRAM Code R, oversized 4-piston caliper, Centerline IS 6-bolt one-piece rotors, 200mm front, 180mm rear, steel-backed metal sintered pads
Brake Levers
SRAM Code R, tool-free reach adjust
Cockpit
Stem
Onoff Stoic FG 30mm, 6061 forged alloy, 35mm clamp
Handlebar
Onoff Stoic carbon, 12mm rise, 780mm width, 9º backsweep, 5º upsweep, 35mm clamp
Grips
Onoff Diamond, lock-on, 130mm
Headset
Onoff Titan, ACB sealed bearings
Seat
Saddle
SDG Fly MTN, PU foam, Cr-Mo rails, Cordura sides
Seatpost
Onoff Pija Dropper, internal, 100mm drop (S), 125mm drop (M), 150mm drop (L-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.3 mm | 1.26 mm | 1.25 mm | 1.22 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 583 mm | 592 mm | 611 mm | 620 mm |
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Top Tube Length | 615 mm | 637 mm | 662 mm | 685 mm |
| Seat Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 510 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 150 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1188 mm | 1209 mm | 1238 mm | 1262 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Foxy Carbon XR 27.5 completes the Mondraker Foxy model. 33 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Mondraker Foxy 27.5 2019 has a starting price of 3931$. Mondraker Foxy Carbon XR 29 2019 on the other hand is the most expensive at 9399$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Mondraker released this model in 2019, its price was 7110$. If we compare this with the average Enduro bike cost we notice that the price is 97.55% higher.
Average weight for Enduro bikes
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Mondraker Foxy Carbon XR 27.5 it’s weighing 13.75 kg (30.31 lbs). At this weight, is slightly lighter than average. In short, the average Enduro bike weight is 3.78% higher than this one.
Overview of components
Fork
The Foxy Carbon XR 27.5 comes factory-installed with the RockShox Lyrik fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the RockShox Superdeluxe RC3 model, with a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Foxy Carbon XR 27.5 2019 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker Foxy Carbon XR 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
