Mondraker PLAY 20 2024
2024 E-bike
Estimate price |
2,708$
Weight | 13.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset microSHIFT Advent -
Suspension Rigid -
Motor MAHLE hub-drive -
Battery Mahle-Ebikemotion Internal 250Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Play 20 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Suspension Fork
MDK 20 Kid, Rigid alloy Stealth stanchions, Post Mount disc brake mount
Drivetrain
Rear Derailleur
Microshift Advent, M6195S super short cage
Shift Levers
Microshift Advent SL M6195R, 9s
Crank
Samox DM 28T steel, 114mm, Rings: 28T, steel
Bottom Bracket
BSA, 73mm
Chain
SRAM PC951 9s, Powerlock
Wheels
Front Hub
K8QF, 9x100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub
Mahle-Ebikemotion X-35, HG freehub
Rims
MDK-HP1 20 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Tires
Front: Kenda Booster 20x2.4 single compound 30TPI, wire bead, Rear: Kenda Booster 20x2.4 single compound 30TPI, wire bead
Brakes
Brakes
Front: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Level, tooled reach adjust, lever pivot bushings
Cockpit
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
SDG Fly Jr
Seatpost
MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 250mm
Motor & Battery
Motor
Mahle-Ebikemotion X-35
Battery
Mahle-Ebikemotion Internal 250Wh
Fit data

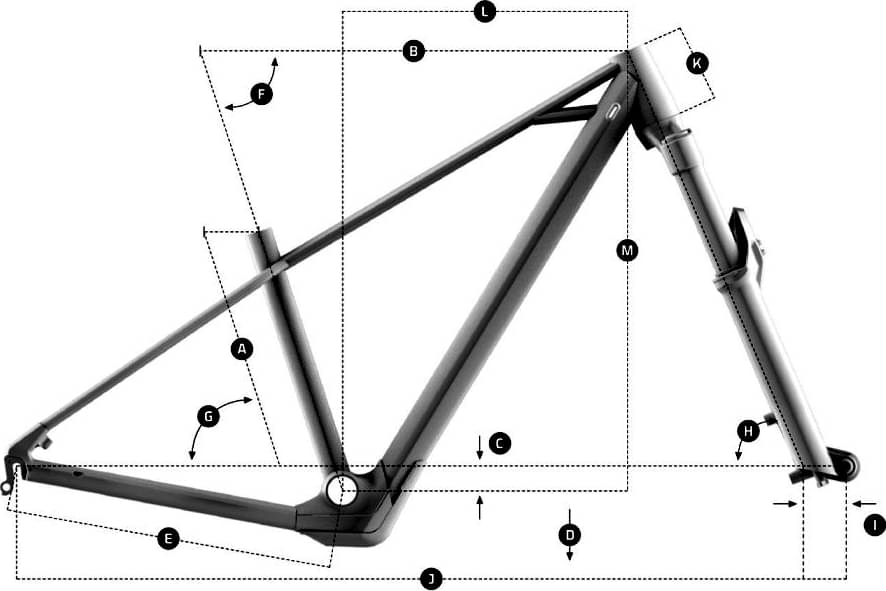

Geometry
Numbers for sizing and ride feel.
Model Overview
PLAY 20 is part of the Mondraker E Play model. 12 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Mondraker PLAY 20 2024 is the most affordable e-bike of this model and has a price of 2434$. On the other hand, Mondraker PLAY 26 2024, is the most expensive and costs 2922$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Mountain e-bikes
According to our calculations, the average cost of a Mountain e-bike that is reliable is 1448$. However, even if your budget is less than the average, you might still be able to get a top-quality Mountain e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Mondraker PLAY 20 price was 2434$. Comparing this to the average Mountain e-bike price, we see that the price is 68.09% higher.
Mountain e-bikes average weight
On a deeper look, we notice that the average weight of a Mountain e-bike is 24.45 kg (53.9 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Mondraker PLAY 20 it’s weighing 13.1 kg (28.88 lbs). At this weight, is much lighter than average. In other words, this model is 86.64% lighter than the average Mountain e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The wheels on PLAY 20 are the 20″ aluminum type. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The PLAY 20 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
