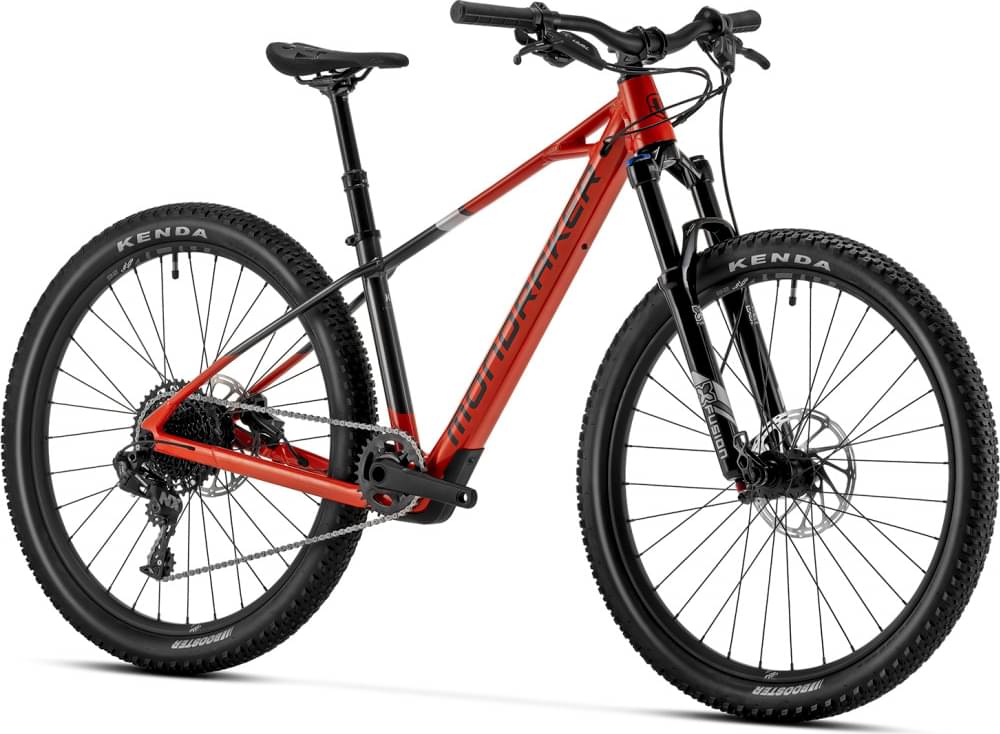

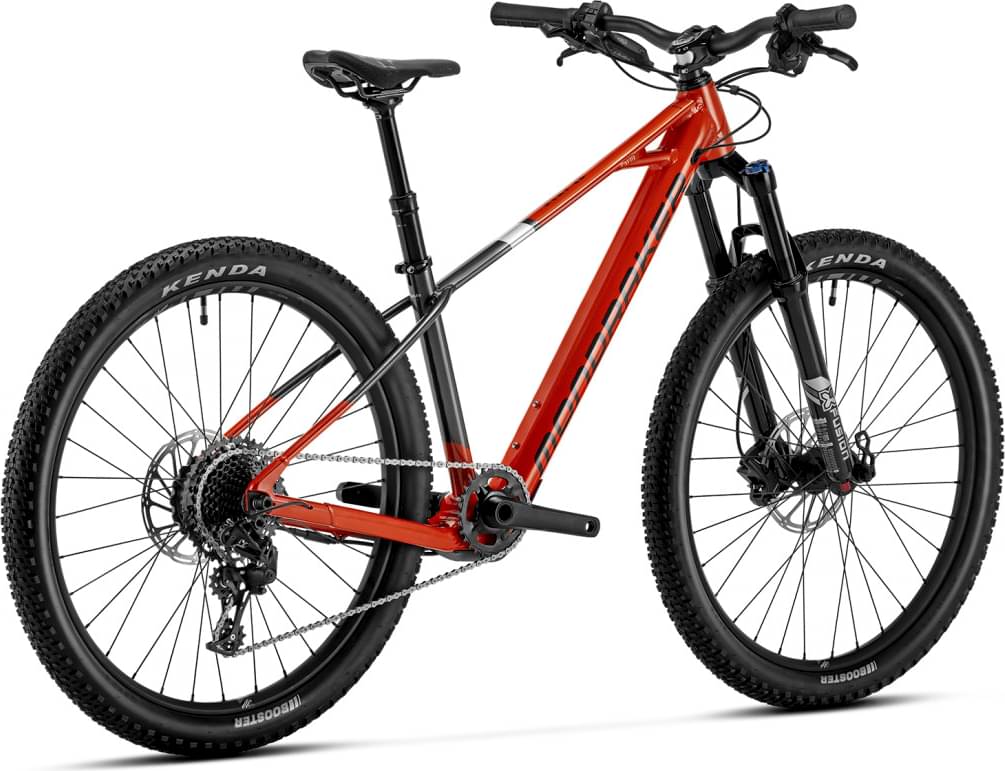

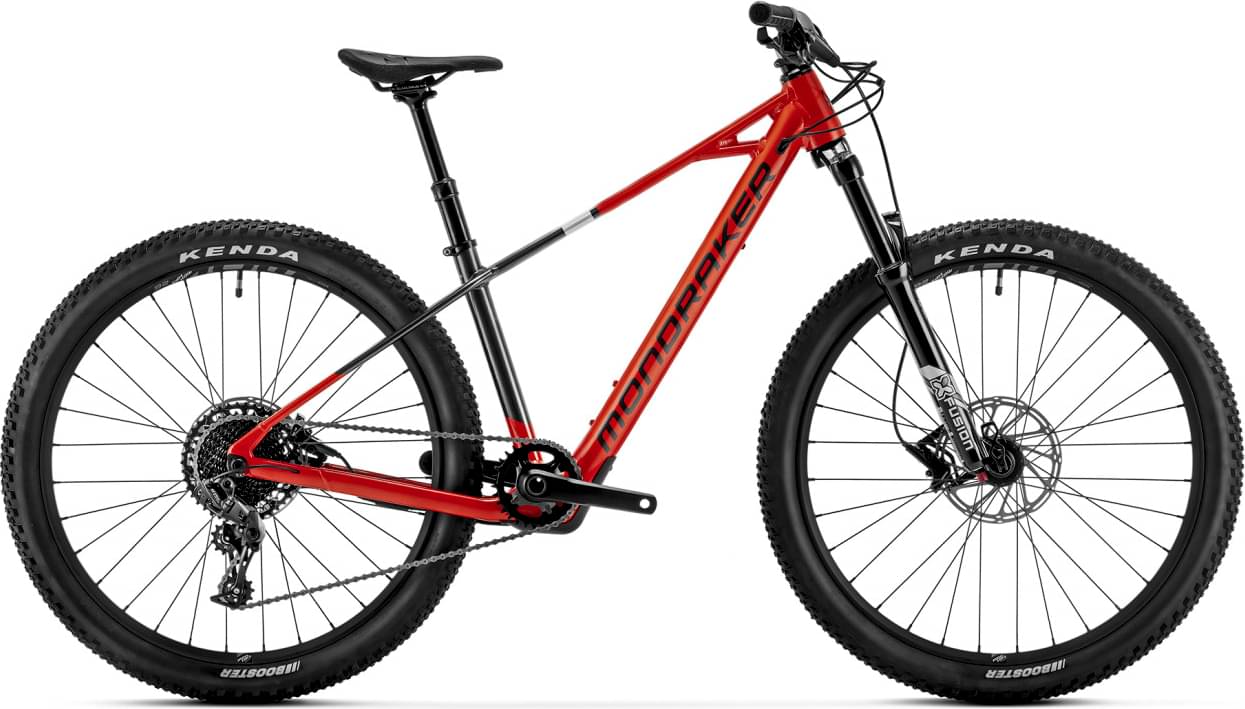

Mondraker PLAY 26 2024
2024 E-bike
Estimate price |
3,250$
Weight | 16 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Fork X-Fusion VELVET
-
Groupset NX -
Suspension Hardtail -
Motor MAHLE hub-drive -
Battery Mahle-Ebikemotion Internal 250Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Play 26 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible
Suspension Fork
X-Fusion Velvet RL 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
Drivetrain
Rear Derailleur
SRAM NX, 11s, long cage, X-actuation 1:1
Shift Levers
SRAM trigger NX 11s, X-actuation 1:1
Crank
Samox DM 30T steel, 152mm, Rings: 30T, steel
Bottom Bracket
BSA, 73mm
Chain
SRAM PC1110 11s, Powerlock
Pedals
SDG Slater JR
Wheels
Front Hub
DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
Rear Hub
Mahle-Ebikemotion X-35, HG freehub
Rims
MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Tires
Front: Kenda Booster 26x2.4 single compound 30TPI, wire bead, Rear: Kenda Booster 26x2.4 single compound 30TPI, wire bead
Brakes
Brakes
Front: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Level, tooled reach adjust, lever pivot bushings
Cockpit
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 650mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on
Headset
Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom
Seat
Saddle
SDG Fly JR
Seatpost
MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 350mm
Motor & Battery
Motor
Mahle-Ebikemotion X-35
Battery
Mahle-Ebikemotion Internal 250Wh
Fit data

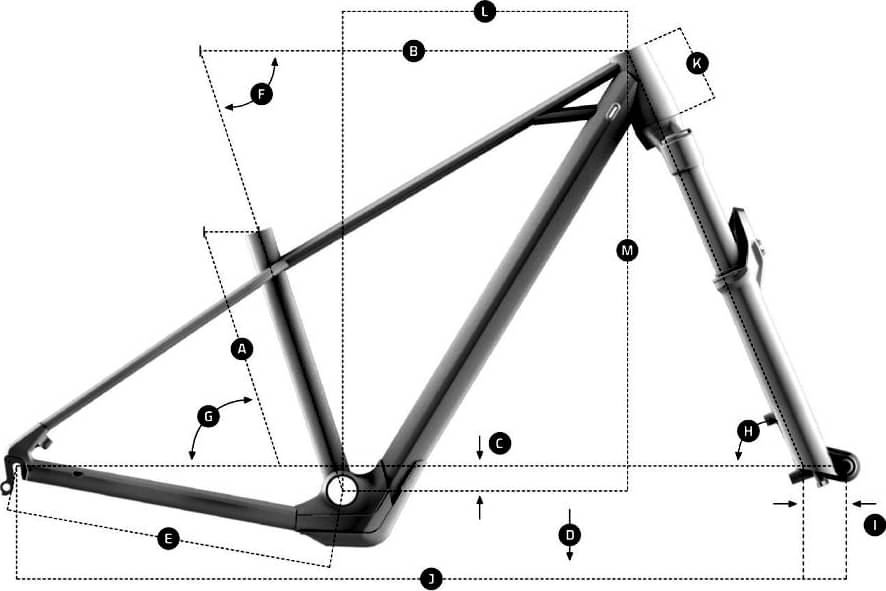

Geometry
Numbers for sizing and ride feel.
About this model
PLAY 26 completes the Mondraker E Play model. Mondraker released 12 e-bikes variations of this model so far. You can easily view all of the Mondraker E Play e-bikes models from 2024, here.
Model range prices
Mondraker PLAY 20 2024 is the most economical model, with a starting price of 2434$. Mondraker PLAY 26 2024 on the other hand costs 2922$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Mountain e-bikes
According to our calculations, the average cost of a Mountain e-bike that is reliable is 1448$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Mountain e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Mondraker released this model in 2024, its price was 2922$. If we compare this with the average Mountain e-bike cost we notice that the price is 101.8% more expensive.
Mountain e-bikes average weight
If we make a quick analysis of the average weight of a Mountain e-bike, we get 24.45 kg (53.9 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Mondraker PLAY 26 it’s weighing 16 kg (35.27 lbs). At this weight, is much lighter than average. To sum up, it’s 52.81% lighter than the average weight of Mountain e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
PLAY 26 components
Fork
The X-Fusion VELVET is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
When it comes to the fork, this e-bike has an aluminum one, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The PLAY 26 2024 e-bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your e-bike. However, they provide less traction than 29″ wheels do.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The PLAY 26 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
