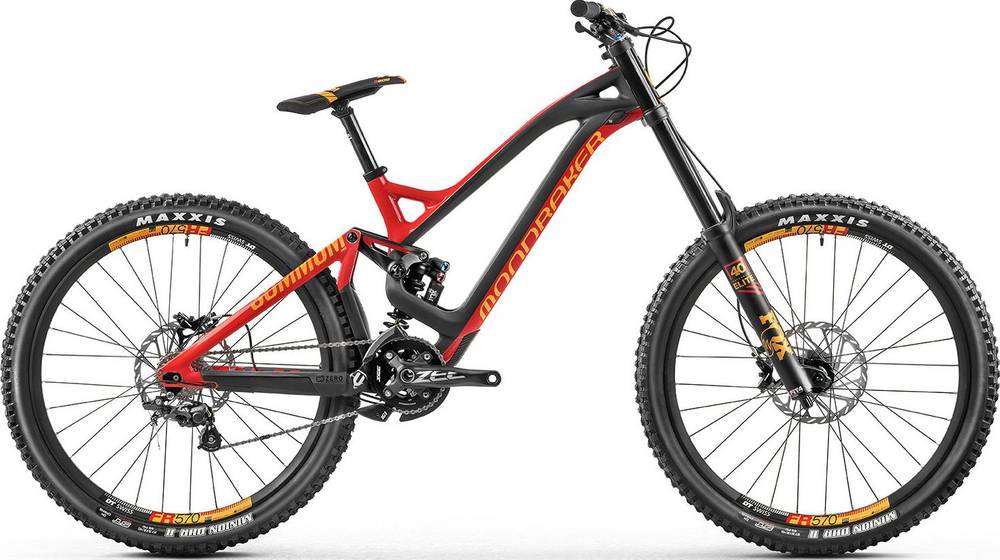

Mondraker Summum Carbon Pro 2018
2018 Mountain
Estimate price |
7,485$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 205mm -
Fork Fox Performance Elite Float 40
-
Groupset Zee -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 40 Float FIT4 EVOL Performance Elite, air spring, 20mm axle, low-speed compression, rebound, air preload, 1.125" straight steerer
Rear Shock
FOX DHX2 Performance Elite, 222mm x 70mm, low-speed compression, rebound, spring preload, S: 450lbs, M: 500lbs, L/XL: 550lbs
Drivetrain
Rear Derailleur
Shimano Zee RD-M640-SS, 10-speed, Shadow Plus technology, short cage
Front Derailleur
N/A (1x-specific)
Shift Levers
Shimano Zee SL-M640, 10-speed, 2-way release
Cassette
Shimano Ultegra CS-HG500-10, 11-25 tooth, 10-speed
Crank
Shimano Zee M645, alloy, reinforced steel axle, 165mm length
Bottom Bracket
Shimano 83mm BSA
Chain
Shimano HG95, 10-speed
Chain Guide
e*thirteen LG1+, DMB (Direct Mount Bashguard) Gen 2 Stealth Idler, aluminum hardware, adjustable/replaceable lower armature, solvent-resistant polycarbonate, larger ISCG05 mount holes, adjustable upper slider
Pedals
N/A
Wheels
Front Hub
MDK Disc Pro DH, IS 6-bolt, 110x20mm front, 150x12mm rear
Rear Hub
MDK Disc Pro DH, IS 6-bolt, 110x20mm front, 150x12mm rear
Rims
DT Swiss FR570, 33mm external width, tubeless ready, 32 hole
Spokes
CN stainless steel, butted 2.0-1.8-2.0
Tires
Maxxis Minion DHR II, Super Tacky compound, wire bead, 27.5" x 2.4"
Brakes
Brakes
SRAM Guide R, lightweight 4-piston dual-diameter calipers, G2 6-bolt 203mm one-piece rotors, semi-metallic pads
Brake Levers
SRAM Guide R, tool-free reach adjust, ambidextrous lever mount
Cockpit
Stem
Onoff Stoic DH Integrated FG, 20-30mm adjustable length, 6061 aluminium, 31.8mm clamp
Handlebar
Mondraker double butted 6061 aluminum, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp
Grips
Onoff Diamond, lock-on, 130mm
Headset
Onoff Mercurium 1.5 ZS, ACB sealed bearings, 56mm external diameter
Seat
Saddle
SDG I-beam I-Fly 2.0, high-density PU, cordura protection
Seatpost
SDG I-Beam SP-751, alloy, 300mm length, micro-adjustment
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.415 mm | 1.371 mm | 1.295 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 597 mm | 597 mm | 606 mm | 606 mm |
| Reach | 397 mm | 422 mm | 442 mm | 468 mm |
| Top Tube Length | 575 mm | 600 mm | 622 mm | 647 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 112 mm | 112 mm | 122 mm | 122 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1200 mm | 1225 mm | 1250 mm | 1280 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Summum Carbon Pro is part of the Mondraker Summum model. Mondraker released 35 bikes variations of this model so far. Take a sneak peek at all Mondraker Summum bikes models from 2018, by clicking here.
Model range prices
Mondraker Summum 2018 is the cheapest bike model and costs 4335$. Mondraker Summum Carbon Pro Team 2018 is the most expensive one and costs 10240$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill bikes
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2018 and its price was 7485$. Comparing this to the average Downhill bike price, we see that the price is 120.73% more expensive.
Overview of components
Fork
Mondraker Summum Carbon Pro 2018 bike is equipped with the Fox Performance Elite Float 40 fork, and has 203mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Mondraker Summum Carbon Pro bike has the FOX DHX2 Performance Elite model installed, and has a travel of 205mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Summum Carbon Pro are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Mondraker Summum Carbon Pro bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
