Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Charger Alloy 29" XC W/Formed Tubing"
Suspension Fork
RockShox XC 30 Solo Air TK 100mm
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore Shadow 10spd
Front Derailleur
Shimano Deore
Shift Levers
Jagwire
Cassette
SRAM PG1020 11/36
Crank
Shimano Deore 40/30/22
Bottom Bracket
Shimano GXP
Chain
SRAM PG1031 10spd
Chain Tensioner
N/A
Pedals
Wellgo Alloy Pedals
Wheels
Front Hub
SRAM MTH-406
Rear Hub
SRAM MTH-406
Rims
WTB SX19 29""
Tires
WTB Nano 29" x 2.1"
Brakes
Brakes
Shimano M395 Hydraulic 160mm
Brake Levers
Shimano Deore BL-M395
Disk Rotors
N/A
Cockpit
Stem
Norco Alloy
Handlebar
Norco Alloy Flat Top Bar 720mm
Grips
Norco Grip
Headset
FSA No. 10 w/16mm conical spacer
Seat
Saddle
Norco XC Saddle
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 18.5" | 20" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.71 mm | 1.68 mm | 1.59 mm | 1.53 mm | 1.5 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 307 mm | 307 mm | 307 mm |
| Front Center | 620 mm | 629 mm | 650 | 670 mm | 684 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 84 mm | 84 mm | 84 mm | 84 mm |
| Stack | 622 mm | 629 mm | 629 mm | 634 mm | 639 mm |
| Reach | 363 mm | 375 mm | 395 mm | 414 mm | 426 mm |
| Top Tube Length | 548 mm | 568 mm | 588 mm | 608 mm | 628 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 470 mm | 508 mm | 546 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1059 mm | 1068 mm | 1091 mm | 1111 mm | 1125 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 778 mm | 768 mm | 766 mm | 764 mm | 778 mm |
| Front Travel | 100 mm | 100 mm | 100 mm | 100 mm | 100 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

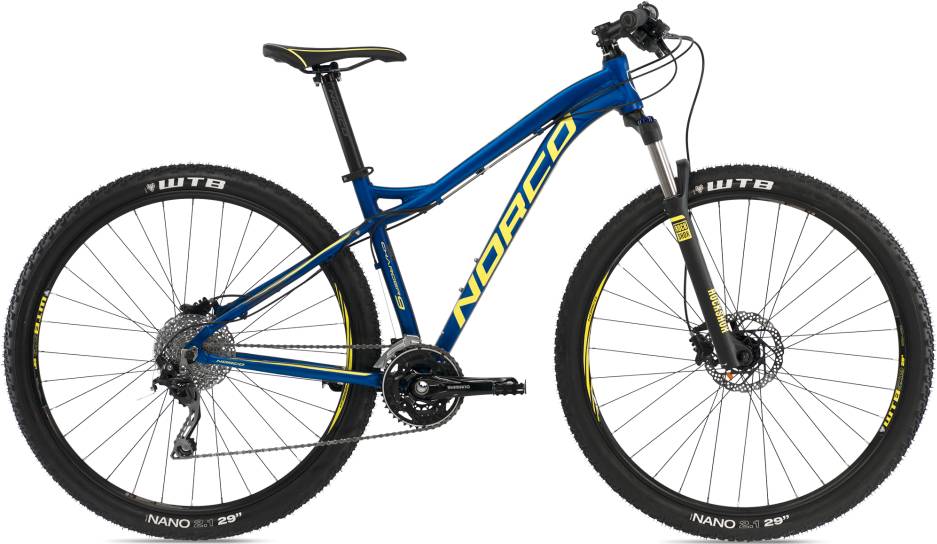

Charger 9.2 is part of the Norco Charger model. 83 bikes variations carry this model name so far. Check out the entire range from 2015 of this model, by clicking this link.
Model range prices
Norco Charger 2015 is the cheapest bike model and costs 550$. Norco Charger 7.1 2015 is the most expensive one and costs 1250$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 965$. Doing a quick comparison, we notice that Charger 9.2 price is 97.41% lower than the average cost of a Crosscountry bike.
Charger 9.2 components
Fork
The fork installed on this bike is the RockShox 30 Silver TK model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on Charger 9.2 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
