Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 60mm -
Fork SunTour XCT
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fluid+ 20" Aluminum Frame"
Suspension Fork
SR Suntour XCT FR Plus 20" 60mm"
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Altus 8-spd - Black
Front Derailleur
N/A
Shift Levers
N/A
Cassette
Shimano 8-spd 11-34 Cassette
Crank
Narrow-wide 28T 3-pc Crankset - Black
Bottom Bracket
Sealed bearing square taper, 73mm - Black
Pedals
VP Alloy Flat Jr. BMX
Wheels
Front Hub
Alloy disc w/15mm boost 110mm
Rear Hub
Alloy disc 135x10 MTB Hub w/ ball bearing
Rims
Alloy 24" 36mm inner - Black"
Tires
Chaoyang MTB - 20" x 2.6"
Brakes
Brakes
Tektro Hydraulic Disc Brake, 160mm rotor - Black
Brake Levers
Tektro Jr. MTB w/ Reach adjust - Black
Cockpit
Stem
Norco Alloy 35mm - Black
Handlebar
Norco Jr. Bar 600mm, 15mm rise - Black
Grips
Norco Jr. Grip - Black
Seat
Saddle
Norco Jr. MTB Saddle 20" - Black
Seatpost
Norco Alloy 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | N/A |
|---|---|
| Stack Reach Ratio | 1.48 mm |
| Bottom Bracket Height | 255 mm |
| Front Center | 511 mm |
| Rake | 40 mm |
| Stack | 436 mm |
| Reach | 294 mm |
| Top Tube Length | 456 mm |
| Seat Tube Angle | 70 ° |
| Seat Tube Length | 255 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 329 mm |
| Wheelbase | 840 mm |
| Bottom Bracket Drop | 15 mm |
| Standover Height | 568 mm |
| Front Travel | 60 mm |
| Wheels | 20" |
About this model

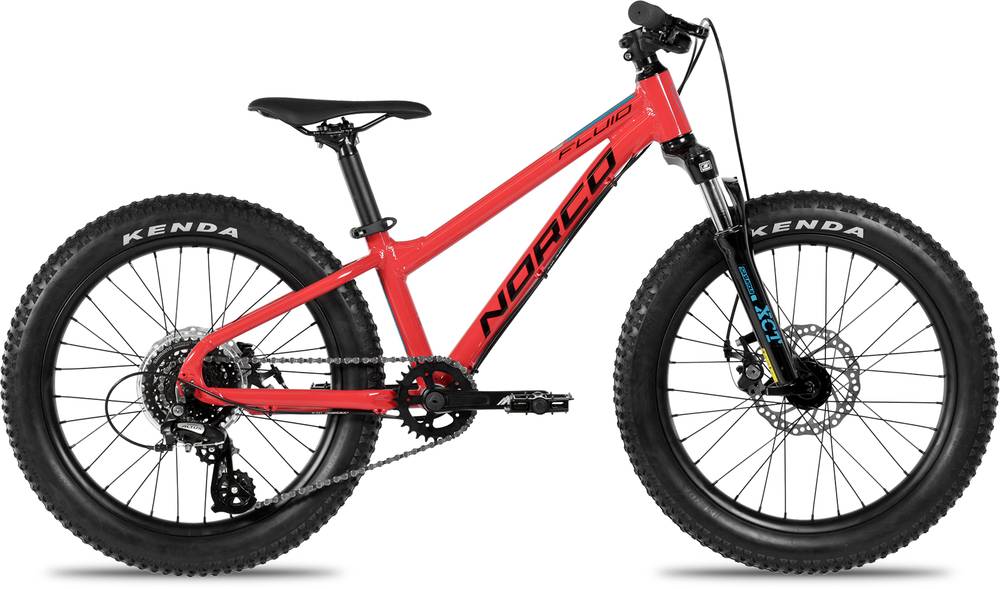

Fluid 2.3+ belongs to the Norco Fluid model. There are 60 frames that carry this model name. You can easily view all of the Norco Fluid frames models from 2017, here.
Model range prices
The most economical model, the Norco Fluid 2.3+ 2017 has a starting price of 519$. Norco Fluid 4.3+ 2017 on the other hand is the most expensive at 599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Mountain frames average price
According to our calculations, the average cost of a Mountain frame that is reliable is 514$. However, you could also get a good Mountain frame even if you pay a lower amount than the average price. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2017 for 519$. Doing a quick comparison, we notice that Fluid 2.3+ price is 0.97% higher than the average cost of a Mountain frame.
Overview of components
Fork
The Fluid 2.3+ comes factory-installed with the SunTour XCT fork. This has a travel range of 60mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fluid 2.3+ has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
