Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RockShox
-
Groupset Deore -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fluid 27.5 aluminum 120 mm travel frame with tapered steer tube
Suspension Fork
Rockshox XC30 27.5 120 mm 9 mm axle dropout tapered steer tube
Rear Shock
Rockshox Monarch R w/rebound adjust
Drivetrain
Rear Derailleur
Shimano Deore Shadow type 10 speed
Front Derailleur
Shimano Deore downswing high clamp
Shift Levers
Jagwire LEX housing
Cassette
Shimano CS HG 62 10 speed
Crank
Shimano Deore Hollow Tech II 10 speed 40/30/22T
Bottom Bracket
w/BB
Chain
SRAM PC 1031 10 speed chain
Chain Tensioner
N/A
Pedals
Wellgo alloy body / steel cage MTB pedal
Wheels
Front Hub
Formula DC 20 disc hub
Rear Hub
Formula DC 22 rear 135 x 10 w/ QR axle
Rims
WTB SX 19 trail rim 27.5
Tires
Continental X-King 27.5 x 2.4 wire bead
Brakes
Brakes
Avid DB 1 hydraulic disc brake w/160 mm rotor
Brake Levers
Avid DB1
Disk Rotors
N/A
Cockpit
Stem
Alloy MTB stem with 4 bolt front clamp
Handlebar
Norco 25.4 mm rise 740 mm width bar
Grips
Norco MTB gator design trail grip
Headset
FSA #57B ( tapered internal ) 1.5" to 1-1/8"""
Seat
Saddle
Norco MTB trail saddle
Seatpost
Norco 6061 alloy double bolt head 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 13.535 mm | 1.31 mm | 1.27 mm |
| Bottom Bracket Height | 332 mm | 332 mm | 332 mm | 332 mm | 332 mm |
| Front Center | 655 mm | 678 mm | 700 | 723 mm | 746 mm |
| Rake | 42 mm | 41 mm | -1887 mm | 42 mm | 42 mm |
| Trail | 95 mm | 96 mm | 2168 mm | 95 mm | 95 mm |
| Stack | 567 mm | 574 mm | mm | 588 mm | 595 mm |
| Reach | 389 mm | 409 mm | 429 mm | 449 mm | 469 mm |
| Top Tube Length | 547 mm | 569 mm | 591 mm | 613 mm | 635 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 405 mm | 435 mm | 470 mm | 510 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 107 mm | 115 mm | 122 mm | 130 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1076 mm | 1098 mm | 1122 mm | 1145 mm | 1167 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 746 mm | 732 mm | 764 mm | 757 mm | 749 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

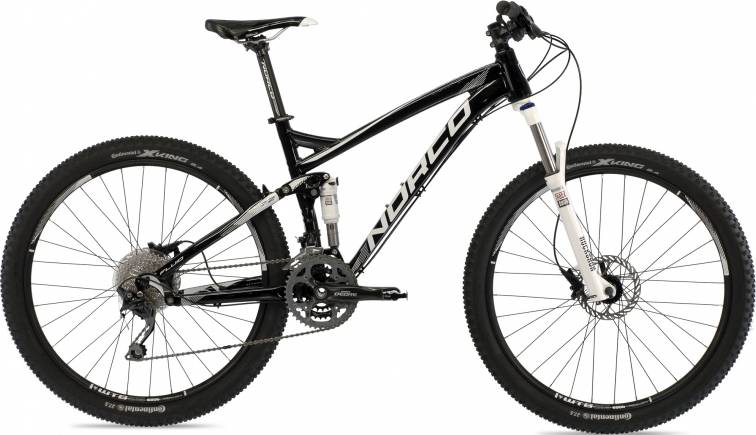

Model Overview
Fluid 7.2 completes the Norco Fluid model. 60 bikes variations carry this model name so far. Take a sneak peek at all Norco Fluid bikes models from 2014, by clicking here.
Model range prices
Norco Fluid 9.2 2014 is the cheapest bike model and costs 1709$. Norco Fluid 7.1 2014 is the most expensive one and costs 2275$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Norco Fluid 7.2 price was 1709$. Doing a quick comparison, we notice that Fluid 7.2 price is 61.61% smaller than the average cost of a Trail bike.
Overview of components
Fork
The fork installed on this bike is the RockShox model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Norco Fluid 7.2 bike has the Rockshox Monarch R w/rebound adjust model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Norco Fluid 7.2 2014, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fluid 7.2 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
