Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Manitou
-
Groupset Zee, Deore -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy Frame, 100mm Travel, tapered headtube, boost axle spacing, ISCG05 mount
Suspension Fork
Manitou J-Unit 20", Expert Air,Alloy Steerer, 120mm Travel
Rear Shock
Fox Performance FLOAT 3 Position, SV/EVOL, custom light tune
Drivetrain
Rear Derailleur
Shimano Zee RD-M640
Shift Levers
Shimano Deore SL-M6000 10 speed
Cassette
Shimano Deore CS-HG50 11-36T
Crank
Samox Two Piece, 140mm
Chain
KMC X10
Pedals
SDG Composite Jr Flat
Wheels
Front Hub
Sun Ringle Duroc 30 Kids wheelset, 15x110mm
Rear Hub
Sun Ringle Duroc 30 Kids wheelset, 12x148mm Boost
Rims
Sun Ringle Duroc 30 Kids tubeless ready
Tires
Vee Rubber Crown Gem or Schwalbe Smart Sam 20x2.25", Skinwall
Brakes
Brakes
Shimano BR-MT500 hydraulic, 160mm
Cockpit
Stem
35mm reach MTB
Handlebar
SDG Kids Alloy, 640mm, 25mm rise, 31.8mm bore
Grips
SDG Jr
Headset
FSA #57 E
Seat
Saddle
SDG Fly JR
Seatpost
JD TransX Light Action Dropper, 80mm,1x lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.4 mm |
| Bottom Bracket Height | 270 mm |
| Front Center | 585 mm |
| Rake | 48 mm |
| Trail | 83 mm |
| Stack | 434 mm |
| Reach | 311 mm |
| Top Tube Length | 430 mm |
| Seat Tube Angle | 75 ° |
| Seat Tube Length | 255 mm |
| Head Tube Angle | 64 ° |
| Head Tube Length | 90 mm |
| Chainstay Length | 346 mm |
| Wheelbase | 931 mm |
| Bottom Bracket Drop | 10 mm |
| Standover Height | 491 mm |
| Wheels | 20" |
About this model

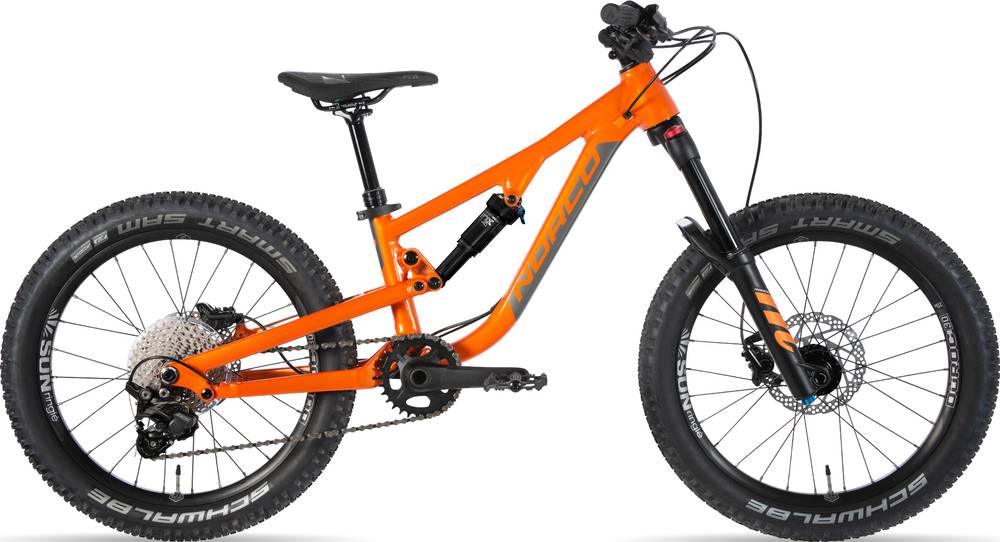

Fluid FS 1 20 is a Norco Fluid Fs model. 111 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Norco Fluid FS 2 20 2020 is the most affordable bike of this model and has a price of 1599$. On the other hand, Norco Fluid FS 1 27.5 2020, is the most expensive and costs 2799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Mountain bikes average price
Our math shows that the average cost of a dependable Mountain bike is 616$. However, this doesn’t mean that if you spend less money on a Mountain bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Norco Fluid FS 1 20 price was 2199$. In conclusion, this bike price is 256.98% higher than the price of the average Mountain bike.
Fluid FS 1 20 components
Fork
Norco Fluid FS 1 20 2020 bike is equipped with the Manitou fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
Norco Fluid FS 1 20 bike has the Fox Performance FLOAT 3 Position model installed, and has a travel of 100mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Fluid FS 1 20 are the 20″ aluminum type. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Nothing is more important on a bike than its ability to brake properly. Norco Fluid FS 1 20 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
